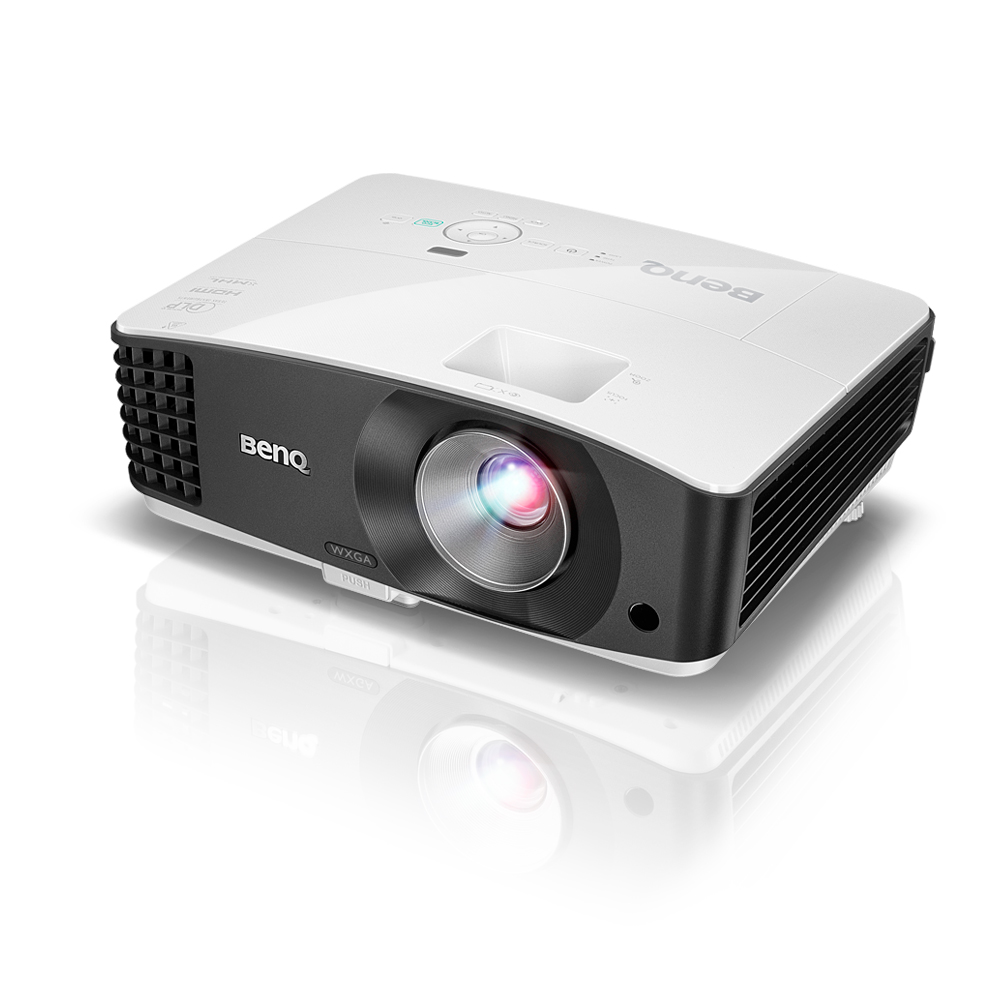

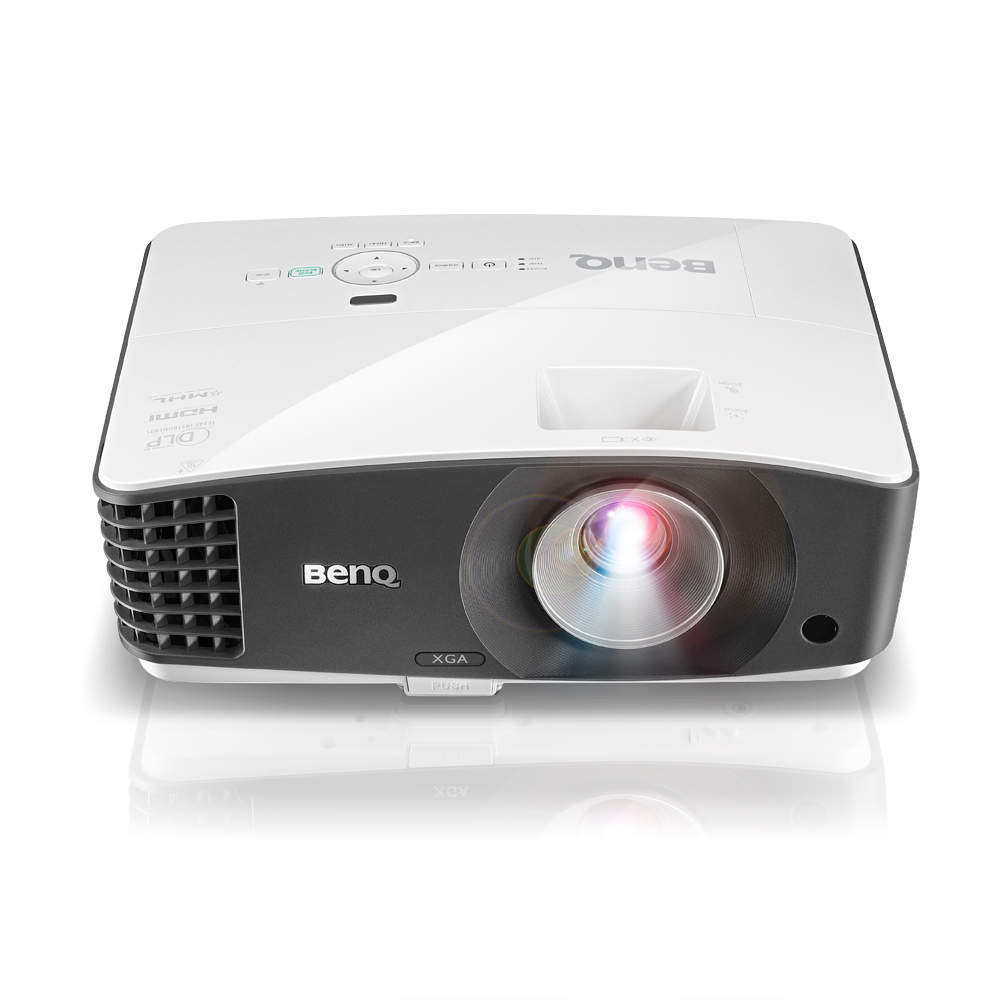

BenQ MX704 Business Projector

MX704 프로젝터 무선과 원터치를 한번에 MX704 프로젝터는 각각 XGA 해상도와 4,000안시의 밝기, 13,000:1 명암비로, 큐캐스트 연동 공간(QCast Plug Space)과 리모컨의 QCast 버튼으로 별도 구매품 QCast 무선 동글을 더욱 편하게 사용할 수 있습니다.

Product characteristics

  • 에코 블랭크 모드와 Qcast를 원터치로 손쉽게 사용
  • 4000ANSI 고안시 밝기
  • 13,000:1 명암비
  • Whisper Quiet 31dB in Daily Meeting
  • 큐캐스트 연동 공간(QCast Plug Space)

  • Description
  • Spec
  • Option
  • Download



프로젝션 방식‎DLP ‎
기본 해상도‎XGA (1024x768) ‎
밝기*‎4000 ANSI Lumen ‎
명암비‎13000:1 ‎
디스플레이 색상‎1.07 Billion Colors ‎
렌즈‎F=2.56~2.68, f=22.04~24.14mm ‎
투사율‎1.96~2.15 (Wide 78” ±3% @ 3.1m) ‎
영상크기‎60" ~ 300"‎
줌‎1.1x‎
램프 타입‎240W‎
램프모드 (기본 / 에코 /스마트에코 /램프세이브 / LumenCare)‎3000/4000/6000/7500(80%~30%) hours ‎
프로젝션 옵셋 (Projection offset)‎Vertical: 120% ±5%‎
해상도 지원‎VGA(640 x 480) to WUXGA_RB(1920 x 1200)*RB = Reduced blanking ‎
수평 주파수‎15K-102KHz‎
수직 주사율‎23-120Hz‎
인터페이스‎Computer in (D-sub 15pin) x1( integrate with component)
HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1) HDMI x 1)
MHL x 1(HDMI with MHL2.0)
Monitor out x 1
Composite Video in (RCA) x 1
S-Video in x 1
Audio in (Mini Jack) x 1
Audio in (L/R) x1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type A) x 1 (1.5A power supply)
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Top) ‎
크기‎331.0 x 114.4 x 246.2 (without foot)
331.0 x 129.4 x 246.2 (with foot)‎
HDTV 호환성‎480i, 480p, 576i, 576p, 720p, 1080i, 1080p ‎
비디오 호환‎NTSC, PAL, SECAM‎
3D 제공 & 호환성 ‎Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p ‎
무게‎3Kg‎
전원‎AC100 to 240V, TBD A, 50 to 60 Hz‎
이미지모드‎**Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 ‎
액세서리(기본)‎Power Cord (by region)
Remote Control w Battery
VGA cable
User Manual CD
QSG
Lens Cover
Warranty Card (by region)‎
화면비‎Native 4:3 (5 aspect ratio selectable) ‎
키스톤 조절‎2D, Vertical & Horizontal ± 40 degrees; Auto vertical keystone ± 30 degrees ‎
Audible Noise Normal Economic Mode‎31/28 dBA (Normal/Economic mode) ‎
액세서리(추가)‎Spare Lamp Kit
Video Streaming Dongle - QCast
Ceiling mount kit
Carry bag
3D Glasses‎
EnvironmentalNotice‎Lamp in this product contains mercury.
To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.‎
PointWrite
카메라 모듈‎
소비 전력‎350W(Normal), 261W(Eco), Standby <0.5W‎
Software‎
On-Screen Display Languages‎Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/
German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/
Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/
Spanish/ Swedish/ Turkish/ Thai/ TraditionalChinese (28 Languages)‎
