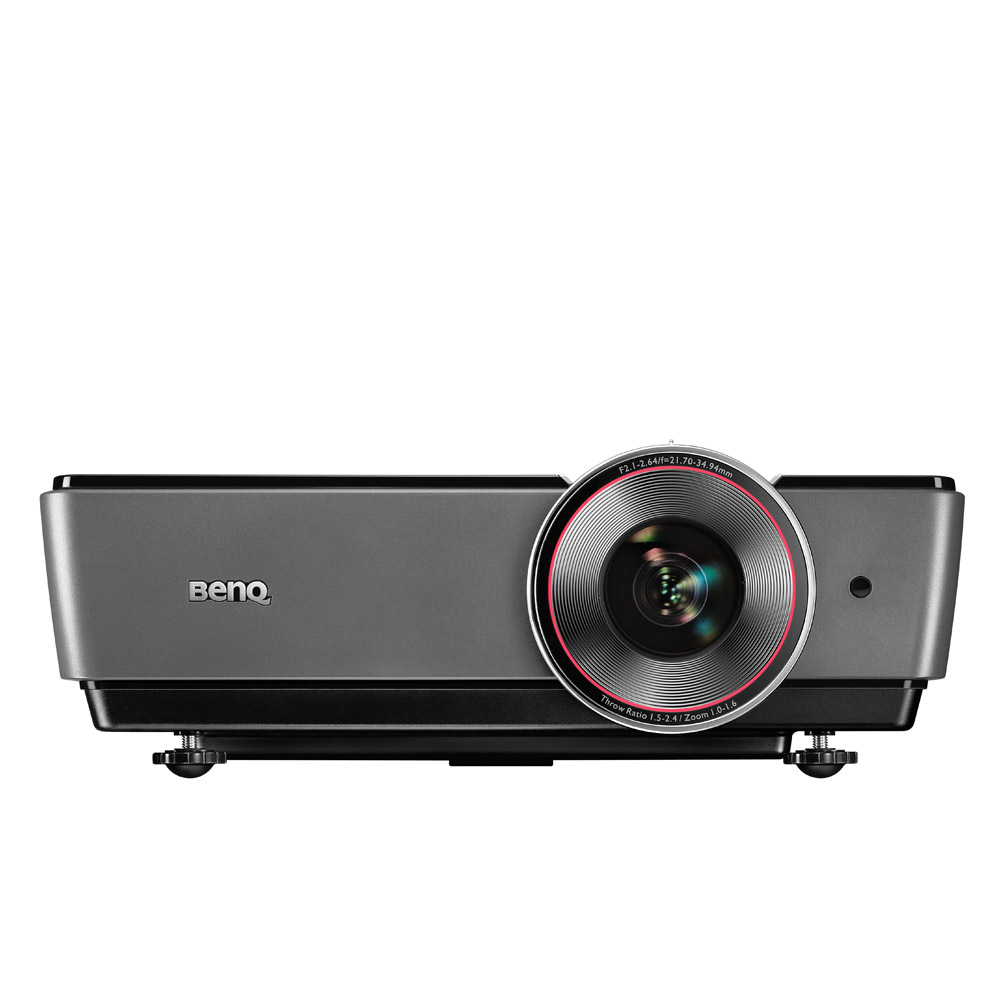

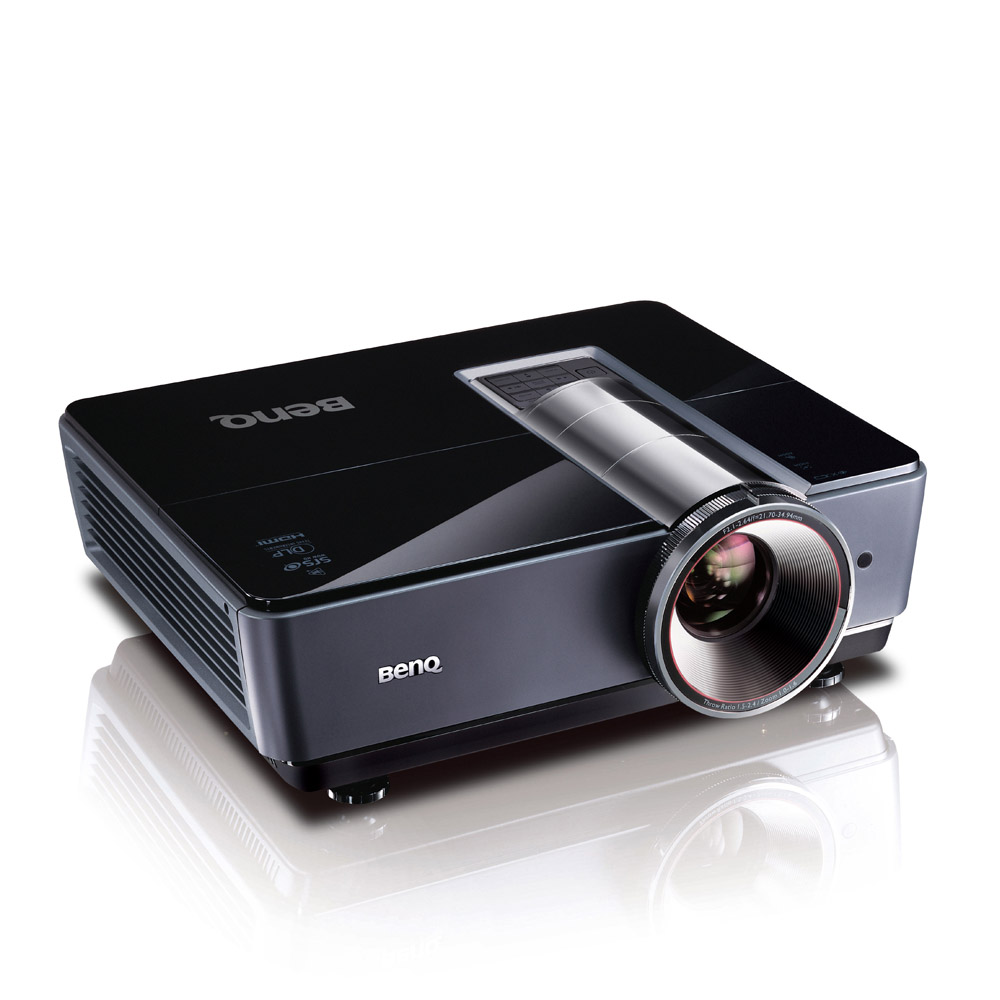

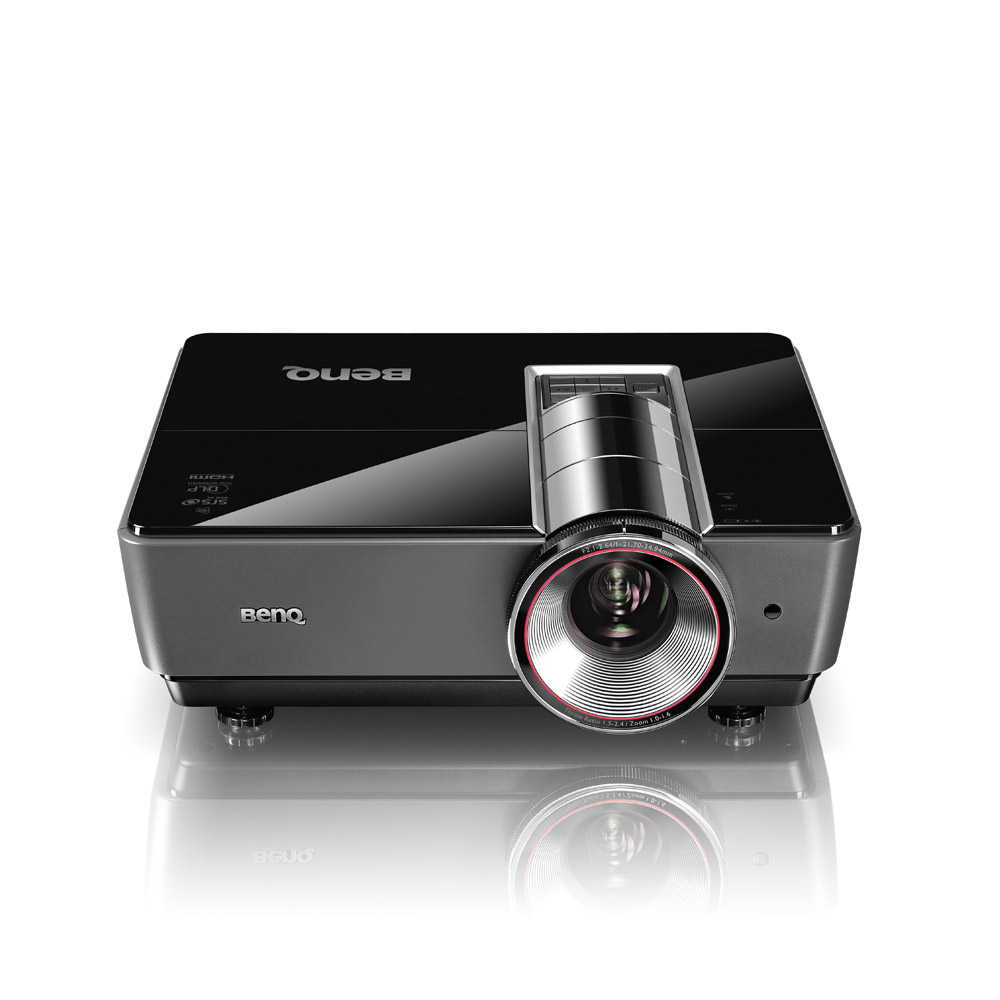

BenQ SX914 고안시 비즈니스 프로젝터

프리젠테이션할 때 불 끄지 마세요! 6000안시의 높은 광량과 6000:1 명암비의 SX914를 사용해보세요. 넓은 회의실의 밝은 조명도 당신의 프리젠테이션을 방해하지 못합니다.

Product characteristics

  • 블루레이 Full HD 3D 지원
  • 렌즈 시프트 기능 지원
  • 설치 편의를 위한 뛰어난 Zoom 기능
  • LAN 컨트롤 (Crestron & PJ-Link)
  • 6000안시

  • Description
  • Spec
  • Option
  • Download



Visual Exellence

6000 ANSI Lumens

It doesn’t matter where you are, with 6000 ANSI lumen high brightness, the SX914 will always give you the best clarity under the brightest lights! So, take advantage! Stay in control and enjoy perfect presentations and the best interactions with your audience!

BenQ SX914 Full HD 3D Network Projector

(Simulated Photos)

SX914




XGA Native Resolution

The SX914 comes with XGA native resolution up to 1024 x 768. This brings you crisp and accurate images in your every presentation!

Diversified Options for Control, Manage

LAN Control Centralized Projector Management

LAN Control enables IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The SX914 offers seamless support for the Crestron and PJ-Link Control system.


BenQ SX914 Full HD 3D Network Projector

Big Zoom for Extra Projector Installation Flexibility

SX914 1.6x big zoom feature opens up space with an impressively wide range of throw distances. All you have to do is simply place the new projector right where your original ceiling mount is. Without adding projector setting re-construction costs to your budget list, you’ll get to save the money for better use.


BenQ SX914 Full HD 3D Network Projector

Lens Shift for Extra Room for Minor Miscalculations

Lens shift offers the extra flexibility to overcome any minor miscalculations during projector installation. All you have to do is adjust the switch next to the lens to shift the projected image up by 115%~125% within the projector housing. With this helpful feature, you’ll never have to worry about positioning the projector slightly out of place again!


BenQ SX914 Full HD 3D Network Projector

Outstanding Audio Performance



Built-in 20W Big Audio Power

The SX914 comes with two built-in 10W speakers to help enrich your presentation with top quality images and sounds, These speakers are sealed and secured within the projector housing by BenQ's anti-shake design to ensure projection stability at all times.

SRS-Certified for Quality Audio Performace

The built-in 10W speakers are SRS-certified to deliver refined the audio quality, making the SX914 the perfect choice for playing video footages as a part of your presentation.






SX914

0.5W in Standby Mode

When inactive, the SX914 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for ealier projector models. This technological advancement in energy saving helps lower energy costs.

MX822ST




Blu-ray Full HD 3D Supported

BenQ SX914 is built with latest DLP® technology to support 3D functionality, allowing schools, corporates and institutions to bring an immersive learning experience to their students and audiences with a simple preparation of 3D glasses and 3D content from your blu-ray player.

BenQ DLP® Projectors︱ Long-Lasting Image Perfection with DLP Technology

Timeless Image Quality:

BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.

Non-DLP Projector



MX720

BenQ DLP Projector



MX720

DLP Technology also affords a filter-free engine design for carefree confidence in long-lasting image quality and reduced total cost of ownership. BenQ’s SmartEco™ Technology further boosts contrast performance and image quality endurance while saving up to 70% on lamp power consumption.

Razor-Sharp Clarity with Ultra-Readability:

Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.

BenQ DLP Projectors also feature high contrast ratios for flawless rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused and clean. Your presentations will be easily readable and highly effective, even from the back row of a well-lit venue.



LX60ST

Vibrant, True-to-Life Colors:

Even in lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy, with BrilliantColor™ Technology additionally boosting true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green. From intense hues to elusive mid-tones like aqua blues and light yellows, your every presentation is rendered in pure, living splendor.



LX60ST

(All photos portraying projection scenarios are simulated.)

ecoFACTS Label

ecoFACTS can tell you how eco-friendly BenQ products are!

Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!

ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.

SX914



인터페이스‎
Computer in (D-sub 15pin)x 2(Share with component)
Monitor out (D-sub 15pin)x 1
Composite Video in (RCA)x 1
S-Video in (Mini DIN 4pin)x 1
Component video inx 1
HDMIx 2
Audio in (Mini Jack)x 1
Audio in (L/R)x 1
Audio out (Mini Jack)x 1
Microphone in (Mini Jack)x 1
Speaker10W x 2
USB (Type mini B)x 1 (Download & page/down)
RJ45x 1(LAN Control & LAN Display & Audio)
USB (Type A)x 2 (USB Reader & Wireless Display & Remote Desktop)
RS232 (DB-9pin)x 1
DC 12V Trigger (3.5mm Jack)x 1
IR Receiverx2 (Front+rear)
무게‎6.2kg(13.7lbs)‎
프로젝션 방식‎DLP‎
기본 해상도‎XGA(1024x768)‎
밝기*‎6000AL‎
명암비‎6000:1‎
디스플레이 색상‎1.07 Billion Colors‎
렌즈‎F=2.1-2.63, f=21.70-34.94mm‎
투사율‎1.5-2.4 (65.6"±3% @ 2m)‎
영상크기‎30"~300"‎
줌‎1.6±2%‎
램프 타입‎350W‎
램프수명‎1500/2000 hours‎
키스톤 보정‎1D, Vertical +/- 40 degrees‎
해상도 지원‎VGA(640 x 480) to UXGA(1600 x 1200)‎
수평 주파수‎15K-102KHz‎
수직 주사율‎23-120Hz‎
렌즈시프트기능‎Vertical:115%-125%±5%‎
크기‎446 x 152 x 336 mm‎
HDTV 호환성‎480i, 480p, 576i, 567p, 720p, 1080i, 1080p‎
비디오 호환‎NTSC, PAL, SECAM‎
3D 제공 & 호환성 ‎Frame Sequential: Up to 480i
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 60Hz 1080i
Top Bottom: Up to 24Hz 1080p
소음도‎35/30 dBA (Normal/Economic mode)‎
자동전원공급‎AC100 to 240V, 5A, 50 to 60 Hz‎
소비전력‎525W(Max), Standby<0.5W‎
다국어지원‎Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/
English/ Finnish/ French/ German/ Greek/ Hindi/
Hungarian/ Italian/ Indonesian/ Japanese/ Korean/
Norwegian/ Polish/ Portuguese/ Romanian/ Russian/
Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/
Traditional Chinese (28 Languages)‎
이미지모드‎Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2‎
액세서리(기본)‎
Lens CoverRemote Control w Battery
Power Cord (by region)VGA(D-sub 15pin) Cable
Warranty Card (by region)User Manual CD, QSG
액세서리(추가)‎Spare Lamp Kit
Ceilling Mount
RS232 Cable‎



  • Data does not exist.
  • User Manual

  • Documents

    • SX914_cad    1.31 MB    SX914_OUTLINE.zip    2017-05-11
  • Software

    • Data does not exist.
  • Driver

    • SX914_driver    31.66 KB    SX914.zip    2017-05-11
