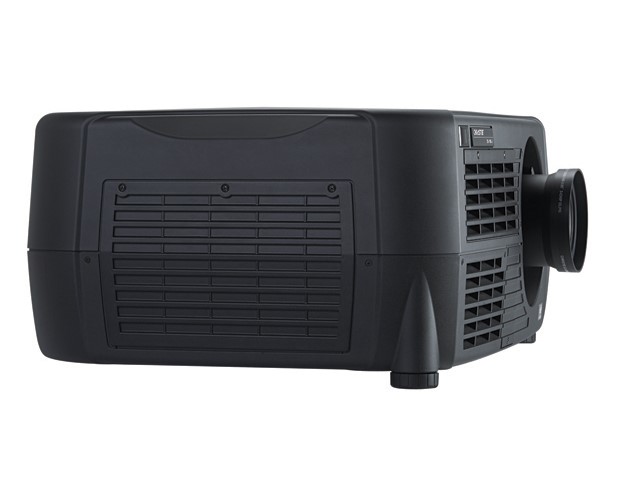

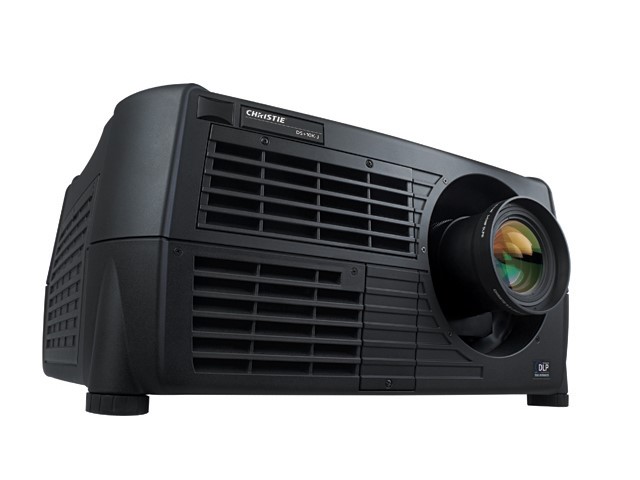

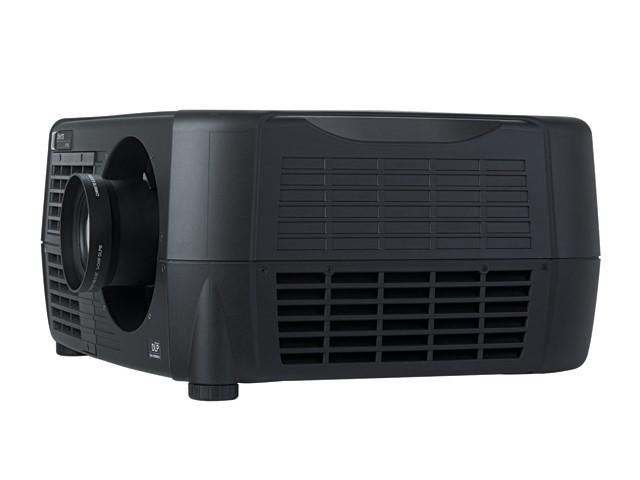

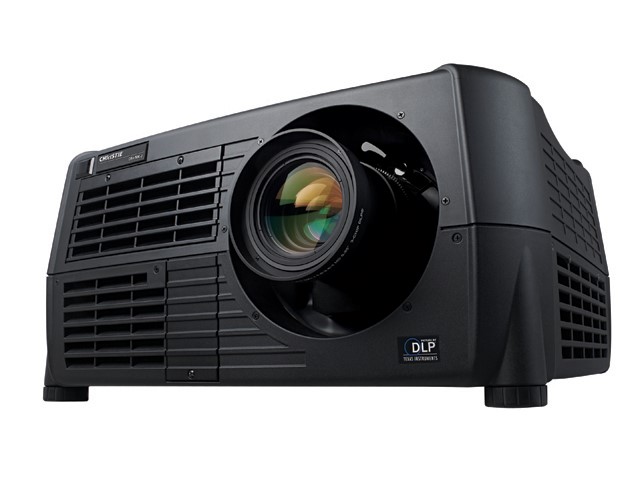

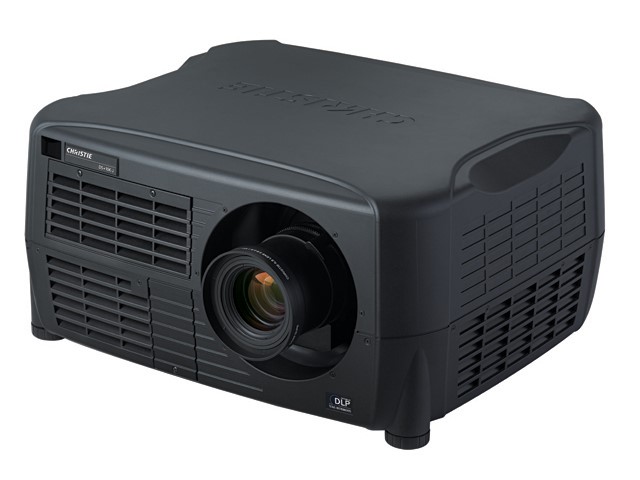

Home Products Christie Projector 3DLP J Series Christie DS+10K-J

3DLP SXGA+ 9350 center lumen Xenon lamp digital projector

Part Number: 132-007108-XX Creating visually compelling displays is paramount to your success. That’s our business too, so we’ve made higher brightness, Christie® Twist™, image quality and flexibility standard in the Christie DS+10K-J. You’ll see we’ve upgraded our existing Xenon 3DLP® platform with the features and functionality that you rely on to share, collaborate and create.

Product characteristics

  • Technology 3DLP
  • Resolution 1400 x 1050 SXGA+
  • Brightness 9350 center lumens
  • Contrast 1600-2000:1 full field | 650:1 ANSI
  • Illumination 1.2kW Cermax® Xenon pre-aligned lamp module
  • Lamp Life 1500 hours typical lamp life
  • Height 12.9" (328 mm)
  • Width 26.0" (660 mm)
  • Depth 22.3" (566 mm)
  • Weight 88 lb (40 kg)

  • Description
  • Spec
  • Option
  • Download

 Technology

 ​3DLP

 Resolution

 1400 x 1050 SXGA+

 Brightness

 9350 center lumens

 Contrast

 1600-2000:1 full field | 650:1 ANSI

 Illumination

 1.2kW Cermax® Xenon pre-aligned lamp module

 Lamp Life

 1500 hours typical lamp life

 Height

 12.9" (328 mm)

 Width

 26.0" (660 mm)

 Depth

 22.3" (566 mm)

 Weight

 88 lb (40 kg)


Ideal for boardrooms, broadcast sets, churches, classrooms, conference rooms, rental/staging, training rooms and more, the Christie DS+10K-J is fitted with the broadest range of high quality lenses – all with Intelligent Lens System (ILS™) capabilities. You can use existing stacking hardware, lenses1, lamps, input cards2 and other Christie accessories (e.g. portrait lens adapter) with this new line of projectors.

This projector couples the benefits of Xenon illumination – for the most natural color accuracy and stability - with the next level of technology, performance and flexibility. The additional standard features, an expanded lens suite and world-renowned Christie warranties, service and support, ensure the Christie DS+10K-J provides high performance and more lumens per watt in the smallest chassis in its class.

With the Christie J Series you can customize your model according to your needs. Each projector ships standard with the ILS lens mount, but if you prefer to use your existing inventory of CT lenses or require a yellow notch filter (YNF), you can choose, at the time of purchase, the following options:

 Christie DS+10K-J

 ILS lens mount (ships standard)

 ILS lens mount + YNF*

 CT lens mount*

 CT lens mount + YNF*

 Part number

 132-007108-XX

 132-007300-XX

 132-007209-XX

 132-007401-XX



Features

1 - CT refers to the suite of lenses available for use with Christie’s legacy Xenon platform. Note: ILS capabilities are not available with CT lenses and lens mount.

2 - Legacy input cards are not compatible with Christie J Series models. The input cards supported by the J Series are compatible with Christie M Series models.




  • Brightness: 9350 center (8500 ANSI) lumens
  • Contrast: 1600-2000:1 full field | 650:1 ANSI
  • Uniformity: 90% brightness uniformity

 Display



  • Type: 3DLP 0.95” DMD
  • Native resolution: SXGA (1400 x 1050)

 Lamp

 ​

  • Type: 1.2kW Cermax® xenon pre-aligned lamp module
  • Life:1500 hours typical lamp life

 Input



Standard

  • Analog
  • Dual link DVI

Optional

  • Analog
  • Dual link DVI
  • SD/HD-SDI
  • Video Decoder
  • Twin HDMI

Signals

  • HDTV formats VGA through to QXGA (2048 x 1536)
  • Accepts all current HDTV/DTV formats
  • Multistandard video decoder
  • Horizontal and vertical scaling, all inputs

Pixel clock

  • 165 MHz

Scan rates

  • 15 kHz to 120 kHz Horizontal
  • 23.97 Hz to 150 Hz Vertical

 Control and networking



  • RS232 In/Out
  • RS422 In
  • Ethernet (10/100)
  • USB Device
  • GPIO (RS232 9 Pin male connector)
  • Built-in, backlit LCD keypad
  • Remote control (with optional wired XLR connection)

 Lens options



Fixed

  • ILS Lens 0.73:1 SX+ / 0.67:1 HD*
  • ILS Lens 1.2:1 SX+ / 1.1:1 HD

Zoom

  • ILS Lens 1.25-1.6:1 SX+ / 1.16-1.49:1 HD**
  • ILS Lens 1.5-2.0:1 SX+ / 1.4-1.8:1 HD
  • ILS Lens 2.0-2.8:1 SX+ / 1.8-2.6:1 HD
  • ILS Lens 2.8-4.5:1 SX+ / 2.6-4.1:1 HD
  • ILS Lens 4.5-7.5:1 SX+ / 4.1-6.9:1 HD
  • ILS Lens 7.5-11.2:1 SX+ / 6.9-10.4:1 HD

Offsets

  • +/- 100% Vertical
  • +/- 50% Horizontal
  • (* +/-23%V   +/- 13%H)
  • (** +/-70%V   +/- 45%H)

 Accessories



Standard

  • IR remote
  • Line cord

Optional

  • 1.2kW Xenon lamp
  • Analog input card
  • Dual link DVI input card
  • Video decoder input card
  • Dual SD/HD-SDI input card
  • Twin HDMI input card
  • DMX512 interface card
  • ILS lens adapter kit
  • Portrait display adapter
  • Ceiling mount
  • Ceiling mount extension
  • Stacking kit
  • Edge-blending kit
  • Remote IR sensor
  • Christie AutoStack™
  • Christie AutoStack™ Premium

 Enhanced feature sets



  • Embedded Christie Twist™
  • Embedded image tiling
  • Intelligent Lens System (ILS)
  • Advanced block artifact reduction
  • ChristieNET™ Web interface
  • User-friendly, intuitive LCD keypad
  • Advanced Loop-Thru twin HDMI card
  • Lamp memory module
  • User replaceable lamps
  • Advanced, 10-bit processing
  • Automatic shut off and ECO mode
  • Dust-sealed light engine
  • SNMP (simple network management protocol)
  • DHCP (dynamic host configuration protocol)
  • Hybrid stack
  • Compatibility with legacy accessories

 Power requirements



  • Operating voltage: 200 VAC to 240 VAC @ 50/60 Hz
  • Max current: 10A @200V
  • Max power: 2000W
  • Dissipation: 6830 BTU/hr

 Dimensions



  • Dimensions: (L x W x H): 22.3 x 26.0 x 12.9" 566 x 660 x 328
  • Shipping dimensions: (L x W x H): 33.5 x 30.0 x 26.0" (851 x 762 x 660mm)
  • Weight: 88 lb (40 kg) (without lens)
  • Shipping weight: 125 lb (57 kg)

 Operating environment



  • Temp: 40 to 104° (5 to 40° C)
  • Humidity: 20 - 80% noncondensing

 Regulatory



  • Directives (EC) 2002/95/EC (RoHS); 2002/96/EC
    (WEEE)
  • Regulation (EC) No. 1907/2006 (REACH);
    CAN/CSA C22.2 No. 60950-1; UL 60950-1; IEC
    60950-1; FCC, Part 15, Subpart B, Class A;
    EN55022/CISPR22 Class A; EN55024 / CISPR24
  • Certifications marks:
    - cULus (Canada and US)
    - CE (EU)
    - CCC (China)
    - GoST-R (Russia)
    - KC (Korea)
    - PSE (Japan)
    - C-Tick (Australia & New Zealand)
    - South Africa

 ​Limited warranty



  • Three years parts and labor (including light engine)



Due to constant research, specifications and features are subject to change without notice.
