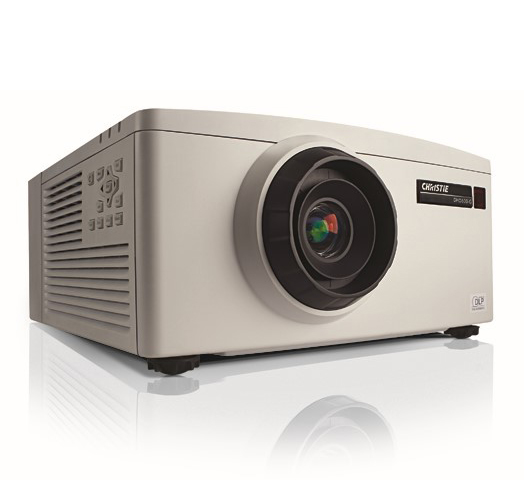

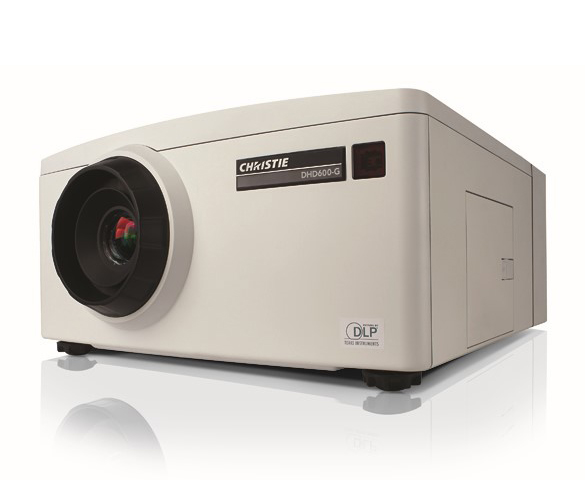

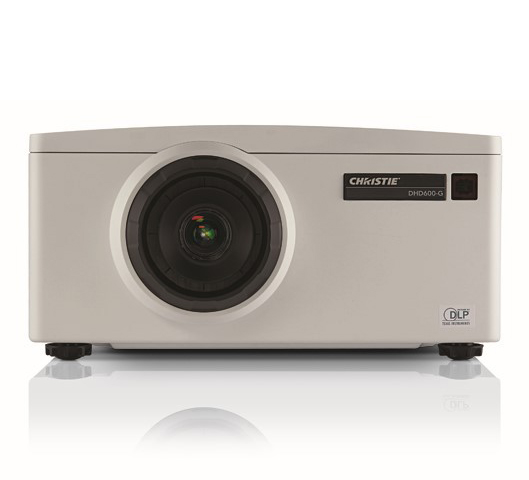

Christie DHD600-G HD 1DLP projector

Part Number: 140-003104-XX HD 1DLP 5,950 ANSI lumen digital projector.

Product characteristics

  • single-lamp design
  • 1DLP® technology for excellent image quality and reliability
  • built-in color matching for a more uniform image in a multiple projector configuration
  • blending and warping capabilities for curved surfaces using the optional Dual Processor Warp Module
  • 24/7 use capability
  • 2,000 hours long lamp life contributes to a low cost of ownership
  • filter-free and dust-sealed for low maintenance and costs
  • eco-friendly features
  • Dynamic Contrast, which enhances images by increasing the contrast ratio to 4000:1
  • an optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes​​​

  • Description
  • Spec
  • Option
  • Download

The Christie® DHD600-G offers unsurpassed value and is a perfect fit for a variety of applications. Its single lamp design lowers total cost of ownership by reducing maintenance and energy cost.

Features

  • single-lamp design
  • 1DLP® technology for excellent image quality and reliability
  • built-in color matching for a more uniform image in a multiple projector configuration
  • blending and warping capabilities for curved surfaces using the optional Dual Processor Warp Module
  • 24/7 use capability
  • 2,000 hours long lamp life contributes to a low cost of ownership
  • filter-free and dust-sealed for low maintenance and costs
  • eco-friendly features
  • Dynamic Contrast, which enhances images by increasing the contrast ratio to 4000:1
  • an optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes​​​
Brightness
  • 6,200 center (5,950 ANSI) lumens
Contrast
  • 4800:1 (dynamic contrast enabled)
  • 1200:1 (full on/ full off)
  • 250:1 (ANSI)
Display technology and resolution
  • 1DLP 0.65" DMD
  • 1920 x 1080 HD
Lamp
  • 465W NSH
  • 2000 hrs typical​ @ 465W
  • 2500 hrs typical @ 360W
Inputs

Standard

  • 1x HDMI
  • 1x DVI-D (digital only)
  • 1x DisplayPort
  • 1x HD15
  • 1x RCA (composite video)
  • 1x S-Video (mini DIN)
  • Component video (RCA)
  • 1x USB (type B mini) - display over USB
  • 1x USB (type A) - image viewer or WiF​i dongle (optional)
  • 1x RJ45

Signals

  • HDTV formats VGA through to WUXGA (1920 x 1200)
  • Horizontal and vertical scaling while maintaining aspect ratio, all inputs
Pixel clock
  • 162 MHz
Scan rates
  • Horizontal: 15 kHz to 100 kHz
  • Vertical: 24 kHz to 85 kHz
​Outputs
  • ​1x HD15
Control and networking
  • RS232 in
  • Ethernet (10/100) RJ45 with ChristieNET™ connectivity

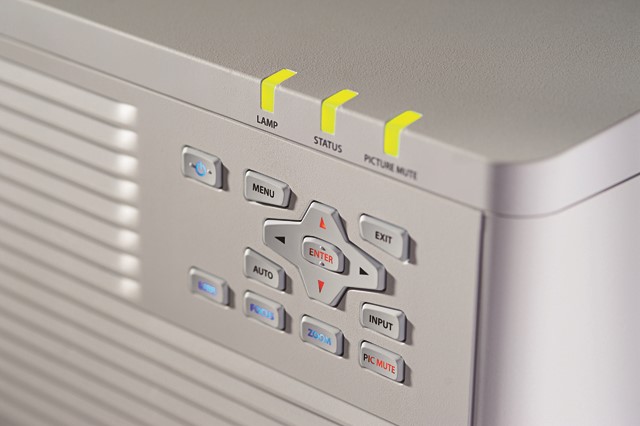

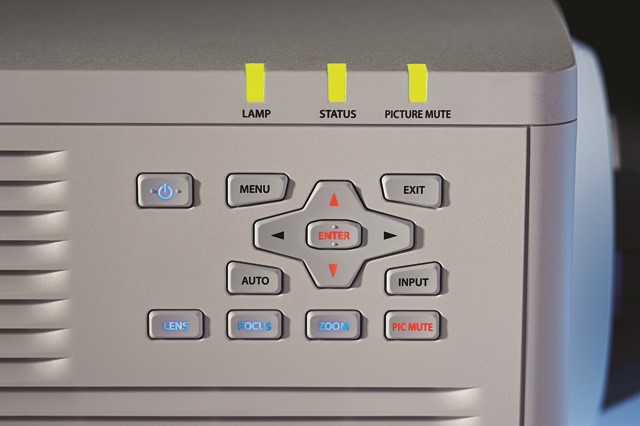

  • Build-in backlit keypad
  • Wired remote control (3.5mm stereo) - wire not included
Optical system
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorized zoom, focus and lens offset
Lenses
  • 1.22-1.52:1 (HD) zoom lens (included)
  • 1.22-1.53:1 (HD) zoom lens (optional)
  • 2.90-5.50:1​ (HD) zoom lens (optional)
  • 1.52-2.89:1 (HD) zoom lens (optional)
  • 0.95-1.22:1 (HD) zoom lens (optional)
Offsets
  • Vertical: +/-120% (+/- 648 pixels)
  • Horizontal: +/-20% (+/-192 pixels)
Standard accessories

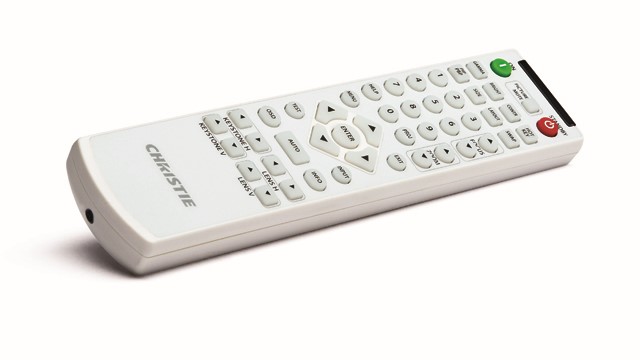

  • IR remote w/ wired remote jack (wire not included)
  • AC line cord for projector head
  • User manual
Optional accessories
  • 1DWUSB-BGN (Wireless dongle)
  • Warp module
  • Cable cover
  • Ceiling mount
  • Ceiling mount extension
Power requirements
  • Operating voltage: 100 VAC to 240 VAC @ 50/60 Hz
  • Operating current: 6.5A max
  • Power consumption: 580W max, 450W eco mode
  • Dissipation: 1979 BTU/hr max, 1535 BTU/hr eco mode
Dimensions and weight
  • Size: (L x W x H): 15.28 x 17.13 x 8.15” (388 x 435 x 207 mm) without feet
  • Shipping size: 23.27 x 23.03 x 17.44" (591 x 501 x 443mm)
  • Weight: 33.7 lb (15.3 kg)
  • Shipping Weight: 45.2 lb (20.5 kg)
Operating environment
  • Temperature: 40 – 95°F (5 – 35°C)
  • Humidity: 10 – 85% non-condensing
Regulatory approvals
  • UL/CSA/IEC 60950-1
  • FCC Class A, CE, CCC, KC, EAC, PSE, CU, SABS, BIS and RCM
  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • This product is designed to comply to the rules and regulations required for the product to be sold in various regional markets, including USA/Canada, EU, Norway, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, India, Russia, South Africa and Saudi Arabia
  • RoHS, REACH, WEEE
Limited warranty
  • 3 years parts and labor (including light engine)
  • Lamp: 500 hours or one year (whichever comes first)
  • Contact an authorized Christie representative for full details of our limited warranty
