Christie DHD555-GS

Part Number: 140-006107-XX 1DLP HD 5,000 lumen laser phosphor projector

Product characteristics

  • Laser phosphor illumination and 1DLP technology for excellent image quality and reliability
  • 20,000 hours of low-cost operation
  • Built-in color matching for a more uniform image in a multiple projector configuration
  • blending and warping capabilities for curved surfaces using the optional Dual Processor Warp Module
  • 24/7 operation
  • Standard HDBaseT input
  • Optional wireless module for device flexibility and easy presentation set up

  • Description
  • Spec
  • Option
  • Download

Featuring laser phosphor illumination, the Christie DHD555-GS 1DLP® projector eliminates the need for lamp and filter replacements, providing 20,000 hours of low-cost operation. With its small footprint, low-weight, quiet operation and a full suite of lenses, the Christie DHD555-GS is ideal for boardrooms, higher education, houses of worship and smaller location-based entertainment venues.



Technology

1DLP

Resolution

1920 x 1080 HD

Brightness

5,000 ANSI lumens

Contrast

2,000,000:1*

Illumination

Solid State (Laser Phosphor)

Illumination Life

20,000 hrs

Length

19.88" (505 mm)

Width

17.95" (456 mm)

Height

7.52" (191 mm)

​Weight

35 lbs (15.9 kg)



Features

  • Laser phosphor illumination and 1DLP technology for excellent image quality and reliability
  • 20,000 hours of low-cost operation
  • Built-in color matching for a more uniform image in a multiple projector configuration
  • blending and warping capabilities for curved surfaces using the optional Dual Processor Warp Module
  • 24/7 operation
  • Standard HDBaseT input
  • Optional wireless module for device flexibility and easy presentation set up







Brightness
  • 5000 ANSI (typical)
Contrast
  • 2,000,000:1 with Christie RealBlack™ enabled, 250:1 ANSI (nominal)
Display
  • 1DLP 0.65" DMD
Resolution
  • 1920 x 1080 (16:9)
Illumination
  • Solid State (Laser Phosphor)
Illumination Life
  • 20,000 hrs

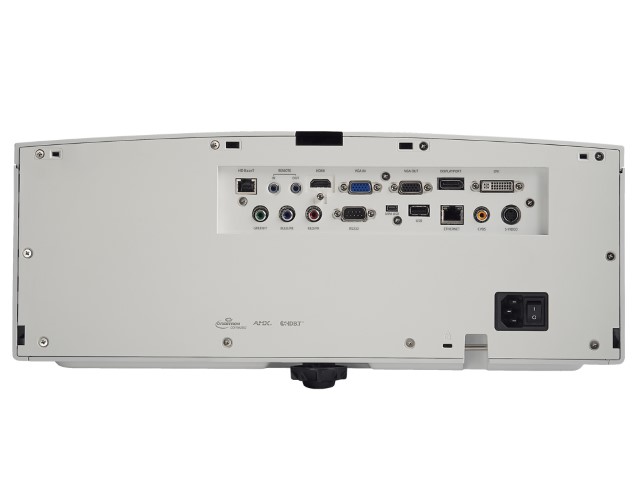

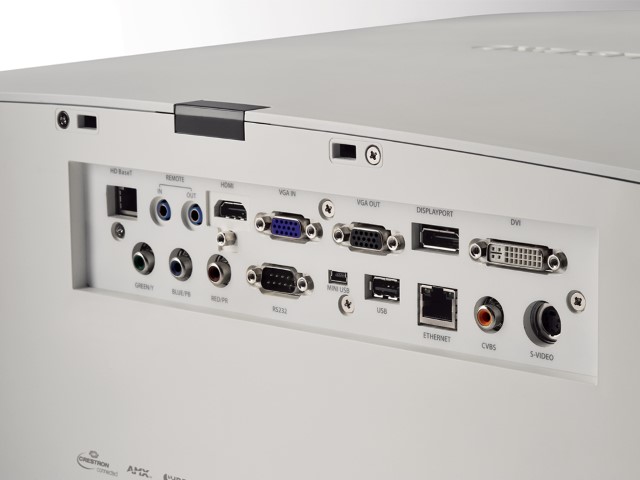

Inputs
  • HDMI x 1
  • DVI-D x 1 (digital only)
  • DisplayPort x 1
  • HD15 x 1
  • Composite video x 1 (RCA)
  • S-Video x 1 (mini DIN)
  • Component video (Y/Pb/Pr)
  • USB x 1 (type B mini) - display over USB
  • USB x 1 (type A) - image viewer or WiFi dongle (optional)
  • RJ45 x 1
Signals
  • HDTV formats VGA through to WUXGA (1920 x 1200)
Pixel clock
  • 162 MHz
Scan rates
  • Horizontal 15 kHz to 100 kHz
  • Vertical: 24 Hz to 85 Hz
Monitor out
  • HD15 x 1
Networking
  • RS-232 in
  • Ethernet (10/100) RJ45 with ChristieNET connectivity

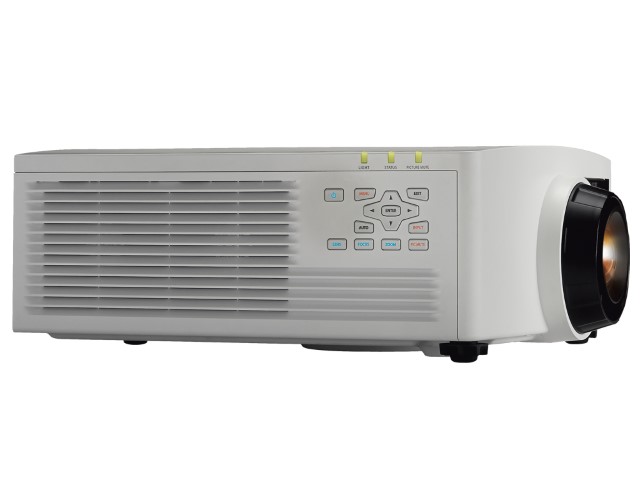

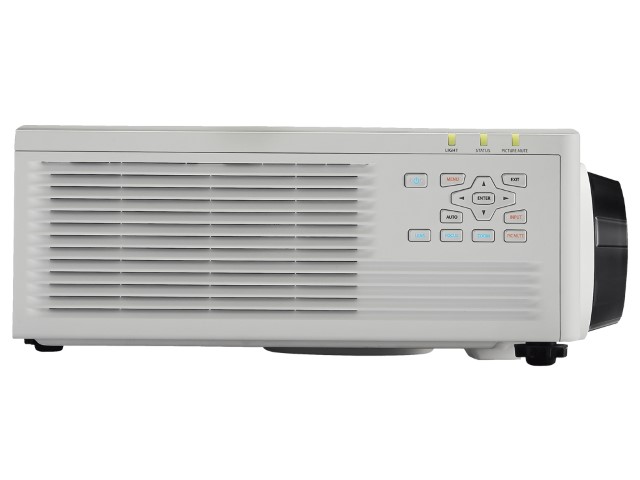

  • Built-in backlit keypad
  • Compatible with Crestron Connected, AMX Discovery
Standard accessories
  • IR remote w/ wired remote jack (wire not included)
  • AC line cord for projector head
  • User manual
Optional accessories
  • 1DWUSB-BGN (wireless dongle for video and control) (133-113106-XX)
  • Warp module (133-111104-XX)
  • Cable cover (140-106108-XX white | 140-106119-XX black)
  • Ceiling mount (108-506102-XX)
  • Portrait side cover (140-108100-XX white | 140-108111-XX black)
  • Christie One Mount (108-506102-XX)
Lens mount
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorized horizontal and vertical lens offset
  • Motorized zoom and focus adjustment
Lenses
  • 0.95-1.22:1 (HD/WU) zoom lens (140-101103-XX)
  • 1.22-1.53:1 (HD/WU) zoom lens (140-100102-XX)
  • 1.22-1.52:1 (HD/WU) zoom lens (140-131106-XX)
  • 1.52-2.92:1 (HD/WU) zoom lens (140-102104-XX)
  • 2.9-5.50:1 (HD/WU) zoom lens (140-107109-XX)
Offsets
  • +/-120% vertical (+/-648 pixels)
  • +/-30% horizontal (+/-288 pixels)
Power
  • voltage: 100-240VAC @ 50/60 Hz
  • consumption: 520W max, 340W eco mode
  • current: 6.0A max
Dissipation
  • 1774 BTU/hr max, 1160 BTU/hr Eco Mode
Audible noise
  • Standard Mode: 38dB(A), Eco Mode: 34dB(A)
Dimensions
(L x W x H)
  • physical: 19.88 x 17.95 x 7.52" (505 x 456​ x 191 mm) without feet
  • shipping: 31.89 x 23.43 x 13.43"
Weight ​
  • physical: 35.0 lbs (15.9 kg)
  • shipping: 47.8 lbs (21.7 kg)
Operating environment
  • temperature: 5 to 40°C (40 to 104°F)
  • humidity: 0 to 90% non-condensing
Regulatory
  • UL/CSA/IEC 60950-1
  • FCC Class A, CE, CCC, KC, EAC, PSE, C-tick, CU, SABS, BIS, VCCI, RCM and South Africa
  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • RoHS, REACH, WEEE
Limited warranty
  • 3 years parts and labor on the projector
  • 3 years or 15,000 hours parts and labor on the illumination system*
  • Contact an authorized Christie representative for full details of our limited warranty
