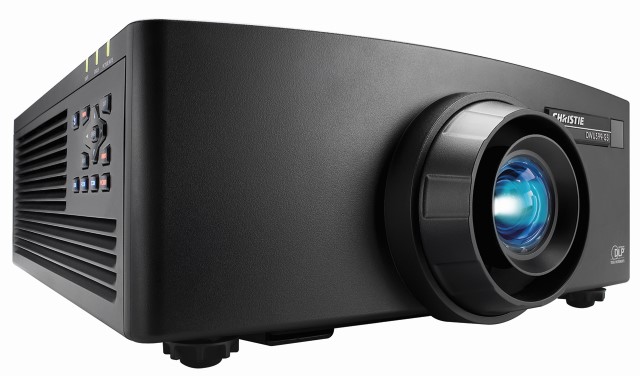

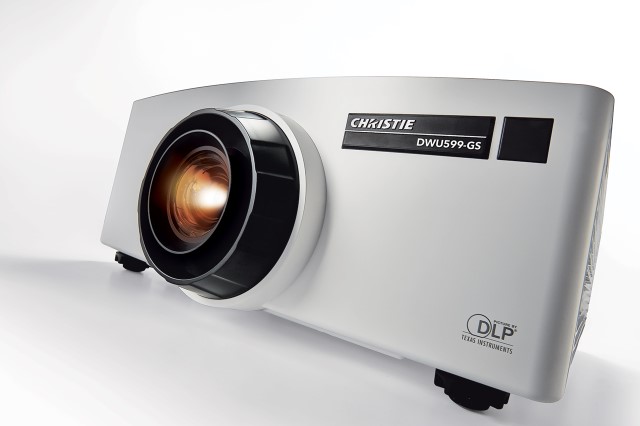

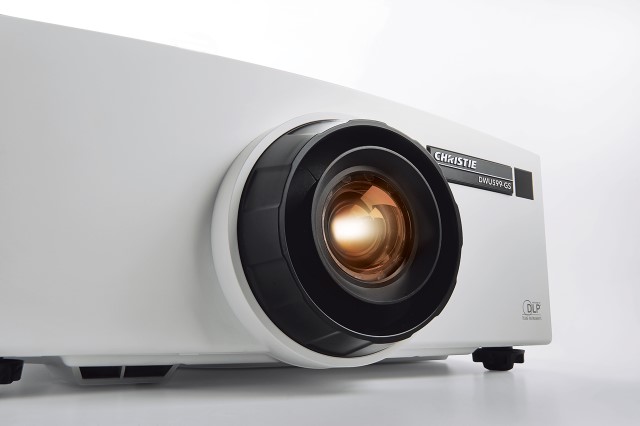

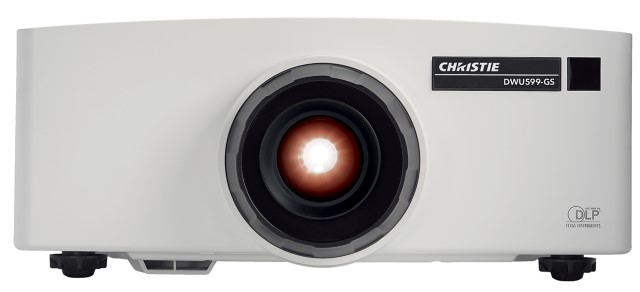

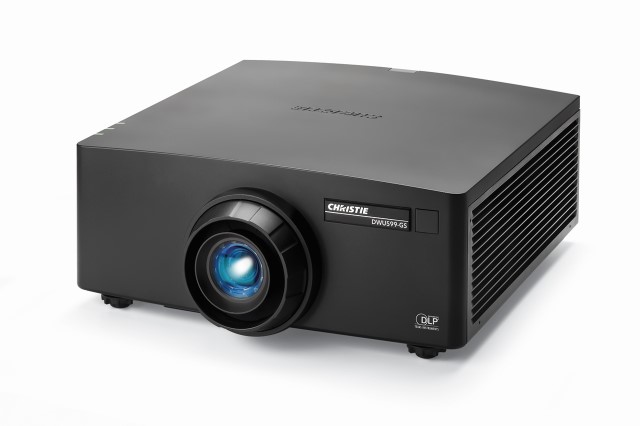

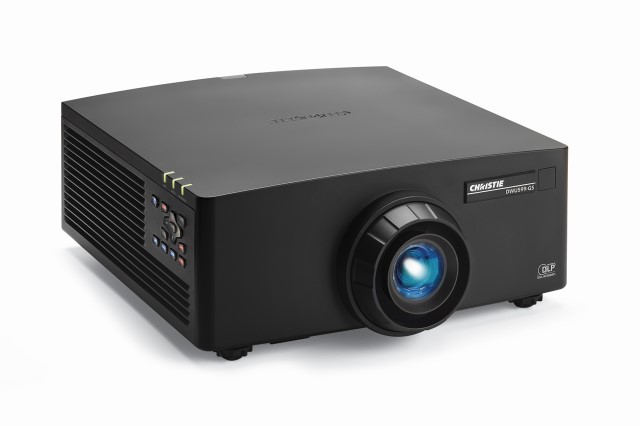

Christie DWU599-GS

Part Number: 140-036100-XX (Black) | 140-034108-XX (White) 1DLP WUXGA 6,065 ISO lumen laser phosphor projector

Product characteristics

  • Laser phosphor illumination and 1DLP technology for excellent image quality and reliability
  • 20,000 hours of low-cost operation
  • Features precise software color adjustments for hue, saturation and gain. Adjust the hue of each primary color component (red, green, blue and white) for perfecting images on an individual projector or for matching colors across multiple adjacent displays
  • Blending and warping capabilities for curved surfaces using the optional Dual processor warp module
  • 24/7 operation
  • Standard HDBaseT input
  • Optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes​​​

  • Description
  • Spec
  • Option
  • Download

Featuring laser phosphor illumination, the Christie DWU599-GS 1DLP® projector eliminates the need for lamp and filter replacements, providing 20,000 hours of low-cost operation. With its small footprint, low-weight, quiet operation and a full suite of lenses, the Christie DHD599-GS is ideal for boardrooms, higher education, hous​​es of worship and smaller location-based entertainment venues.



Technology

1DLP

Resolution

1920 x 1200 WUXGA

Brightness

6,065 ISO lumens

Contrast

1,500,000:1*

Illumination

Solid State (Laser Phosphor)

Illumination Life

20,000 hrs

Length

19.90" (505 mm)

Width

17.95" (456 mm)

Height

7.50" (191 mm)

Weight

35 lbs (15.9 kg)



Features

  • Laser phosphor illumination and 1DLP technology for excellent image quality and reliability
  • 20,000 hours of low-cost operation
  • Features precise software color adjustments for hue, saturation and gain. Adjust the hue of each primary color component (red, green, blue and white) for perfecting images on an individual projector or for matching colors across multiple adjacent displays
  • Blending and warping capabilities for curved surfaces using the optional Dual processor warp module
  • 24/7 operation
  • Standard HDBaseT input
  • Optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes​​​





Brightness
  • 6065 ISO lumens (typical)
  • 5400 Center lumens (typical)
  • 5400 ANSI lumens (typical)
Contrast
  • 1,5​00,000:1 with full on/off (Christie RealBlack™​ enabled) 250:1 ANSI (nominal) with full on/off (Christie RealBlack disabled): 1200:1
Display
  • 1DLP 0.65" DMD
Resolution
  • 1920 x 1200
Illumination
  • Solid State (Laser Phosphor)
Illumination Life
  • 20,000 hrs

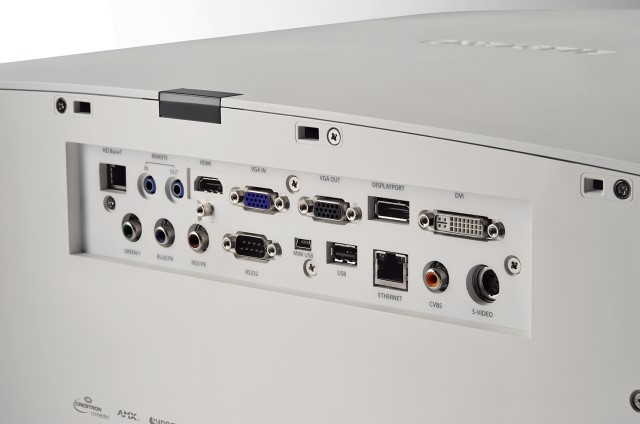

Inputs
  • HDMI x 1
  • DVI-D x 1 (digital only)
  • DisplayPort x 1
  • VGA x 1
  • Composite video x 1 (RCA)
  • S-Video x 1 (mini DIN)
  • Component video (Y/Pb/Pr)
  • USB x 1 (type B mini) - display over USB
  • USB x 1 (type A) - image viewer or WiFi dongle (optional)
  • RJ45 x 1 (ChristiePresenter over wired network connection)
Signals
  • HDTV formats VGA through to WUXGA (1920 x 1200)
Pixel clock
  • 162 MHz
Scan rates
  • Horizontal 15 kHz to 100 kHz
  • Vertical: 24 Hz to 85 Hz
Monitor out
  • HD15 x 1
Networking
  • RS-232 in
  • Ethernet (10/100) RJ45 with ChristieNET connectivity

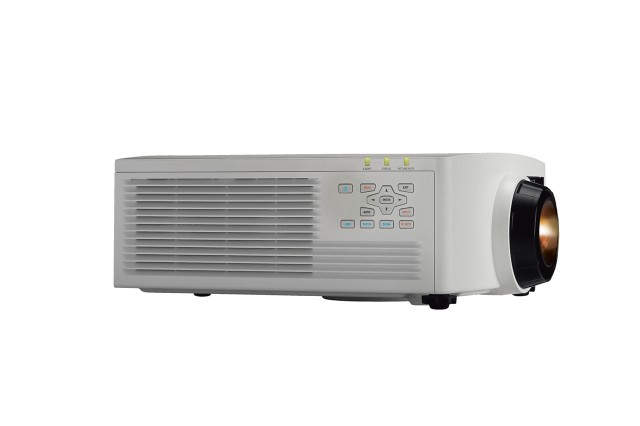

  • Built-in backlit keypad
  • Compatible with Crestron Connected, AMX Discovery
Standard accessories

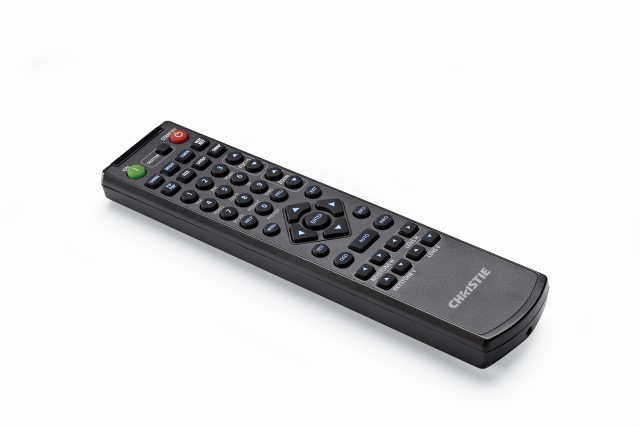

  • IR remote w/ wired remote jack (wire not included)
  • AC line cord for projector head
  • User manual
Optional accessories
  • 1DWUSB-BGN (wireless dongle for video and control) (133-113106-XX)
  • Warp module (133-111104-XX)
  • Cable cover (140-106108-XX white | 140-106119-XX black)
  • Ceiling mount (108-506102-XX)
  • Portrait side cover (140-108100-XX white | 140-108111-XX black)
  • Christie One Mount (108-506102-XX)
  • One Mount Extender Rod (121-125109-XX)
  • One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod) (121-126100-XX)
Lens mount
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorized horizontal and vertical lens offset
  • Motorized zoom and focus adjustment
Lenses
  • 0.75-0.95: 1 zoom lens G (140-119102-XX)
  • 0.95-1.22 :1 zoom lens G (140-101103-XX)
  • 1.22-1.52: 1 zoom lens HP G/GS (140-131106-XX)
  • 1.22-1.53: 1 zoom lens standard G/GS except 700/850-GS (140-100102-XX)
  • 1.22-1.53: 1 zoom lens standard G/GS except 700/850-GS (140-132107-XX)
  • 1​.52-2.89:1 zoom lens G (140-102104-XX)
  • 2.90-5.50: 1 zoom lens G/GS (140-107109-XX)
Offsets
  • +/-50% vertical (+/-648 pixels)
  • +/-15% horizontal (+/-288 pixels)
Power
  • voltage: 100-240VAC @ 50/60 Hz
  • consumption: 550W max, 280W eco mode
  • current: 6.0A max
Dissipation
  • 1774 BTU/hr max, Full power mode: 1875.5 BTU/hr +/-15% ECO mode: 954.8 BTU/hr +/-15%
Audible noise
  • Standard Mode: 38dB(A), Eco Mode: 34dB(A)
Dimensions (LxWxH)
  • physical: 19.9 x 17.95 x 7.5" (505 x 456​ x 190mm) w/o feet
  • shipping: 24.6 x 23.5 x 13.4" (810 x 595 x 341mm)
Weight
  • physical: 36.0 lbs (16.5 kg)
  • shipping: 49.2 lbs (22.3 kg)
Operating environment
  • temperature: 5 to 40°C (40 to 104°F)
  • humidity: 0 to 90% non-condensing
Regulatory
  • UL/CSA/IEC 60950-1
  • FCC Class A, FDA, CE, CCC, KC, EAC, PSE, C-tick, EAC, SABS, BIS, VCCI, RCM​
  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • RoHS, REACH, WEEE
Limited warranty
  • 3 years parts and labor on the projector
  • 3 years or 15,000 hours parts and labor on the illumination system*
  • Contact an authorized Christie representative for full details of our limited warranty
