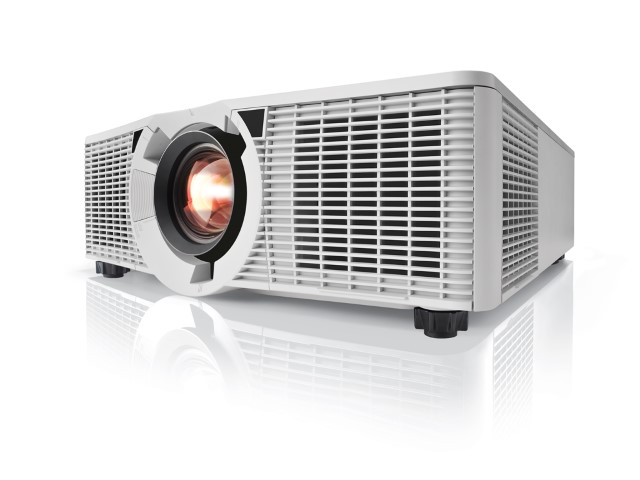

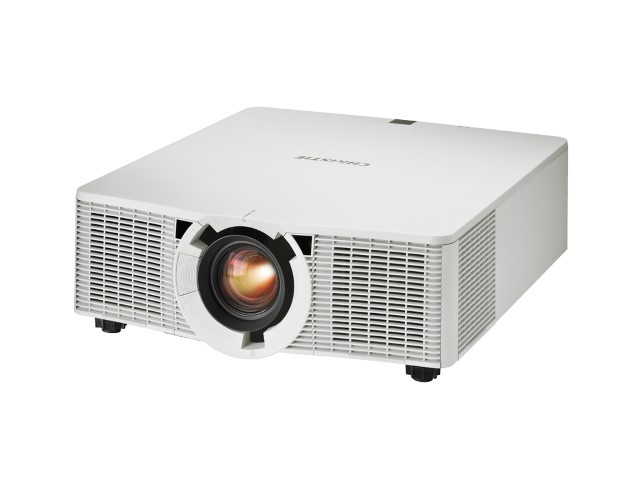

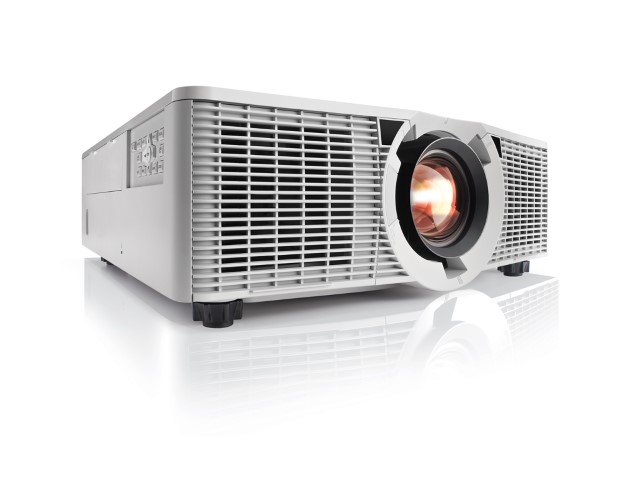

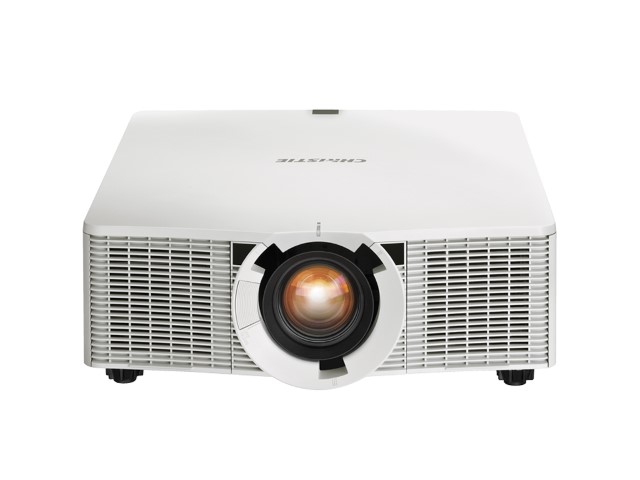

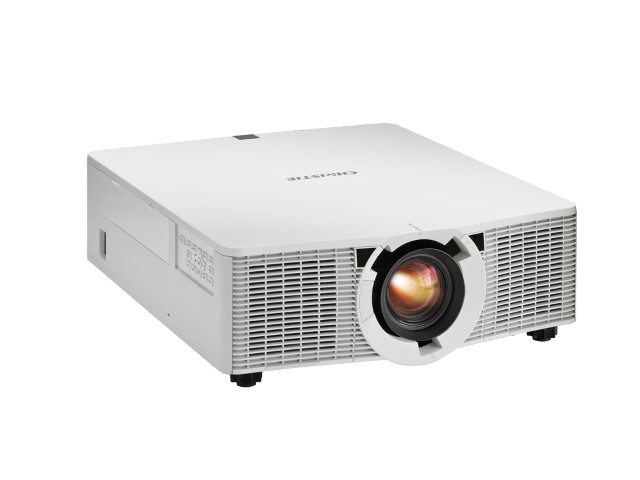

Christie D12HD-H 1DLP projectors

Part Number: 140-010102-XX (Black) 1DLP dual-lamp digital projector series

Product characteristics

  • HD: 11,250 ISO 21118, 11,000 center lumens, 10,500 ANSI lumens,
  • Proven DLP® technology
  • Dual-lamp, 2 x 465W
  • Excellent image quality
  • Built-in warping, blending and color correction
  • 3D capability
  • Energy-saving features
  • Low maintenance costs
  • Easy integration – wide selection of inputs, Crestron and AMX compatible. Plus, second HDMI input on bottom of projector for ceiling installs, cover plate for side input panel for clean look

  • Description
  • Spec
  • Option
  • Download

From boardrooms to auditoriums, the Christie® H Series is our most versatile 1DLP projector. Combining high​ 1DLP brightness with excellent color reproduction, the Christie H Series is small, light and quiet – perfect for discrete installations.

Ideal for medium-to-large venues

The Christie H Series can be set-up in any orientation, includes built-in warping and blending, and offers a full suite of lenses to meet even the most challenging projection needs. With superior image quality, flexible connectivity and less than half the noise of competitive products, the Christie H Series makes itself seen, not heard.

It packs a punch

The Christie H Series packs a lot of high-performance features into a surprisingly small and sleek package. Plus, the Christie H Series looks great: with an input panel cover plate and a second HDMI input on the bottom of the projector to hide cords. Don’t sacrifice one for the other: experience color integrity and bright, powerful images with Christie H Series projectors.

Read on to see what else we’ve packed into this beautiful and versatile powerhouse projector:

  • HD: 11,250 ISO 21118, 11,000 center lumens, 10,500 ANSI lumens,
  • Proven DLP® technology
  • Dual-lamp, 2 x 465W
  • Excellent image quality
  • Built-in warping, blending and color correction
  • 3D capability
  • Energy-saving features
  • Low maintenance costs
  • Easy integration – wide selection of inputs, Crestron and AMX compatible. Plus, second HDMI input on bottom of projector for ceiling installs, cover plate for side input panel for clean look

The Christie H Series is backed by Christie’s industry-leading warranties and support.​


Brightness

  • 11,250 lumens (Compliance with ISO 21118 standard)
  • 11,000 Center lumens
  • 10,500 ANSI lumens

Contrast

  • 5000:1 (Dynamic Aperture Enabled)
  • 1200:1 Full On/Off
  • 250:1 ANSI

Color Wheel

  • 6-segment (RGBCYW)
Display

Type

  • 1-chip 0.95" DMD

Native Resolution

  • 1920 x 1080 HD (2,073,600 pixels) 16:9
Lamp

Type

Life

  • 1500 hours typical​ @ 465W
  • 2000 hours typical @ 370W
Input

Standard

  • HDMI x 2 (One on side panel, one on bottom of projector, independently selectable)
  • 3GSDI x 1 (BNC)
  • DVI-D x 1 (Digital only)
  • Display Port x 1
  • HD15 x 1
  • RGBHV/Component (5 BNC)
  • Composite Video x 1 (BNC)
  • S-Video x 1 (mini DIN)
  • Component Video (RCA)
  • USB x 1 (Type B mini) - Display over USB
  • USB x 1 (type A) - Image Viewer or WiFi Dongle (optional)
  • HDBaseT (RJ45 x 1)
  • RJ45 x 1 (ChristiePresenter over wired network connection)
3D
  • HDMI, HDBaseT - frame packed, side by side, top/bottom

Signals

  • HDTV formats VGA through to WUXGA (1920 x 1200)
  • Horizontal and vertical scaling while maintaining aspect ratio, all inputs

Pixel Clock

  • 162 MHz

Scan Rates

  • Horizontal: 15 kHz to 100 kHz
  • Vertical: 24 Hz to 85 Hz
Output

Standard

  • HD15 x 1

Control & Networking

  • RS232 In
  • Control via HDBaseT
  • Ethernet (10/100) RJ45 with ChristieNET connectivity
  • Built-in backlit keypad
  • Wired remote control (3.5mm stereo) - Loop out available for daisy chaining
Accessories

Standard

  • IR Remote w/ wired remote jack (wire not included)
  • Coarse Dust Filters - 3 Pack (Not mandatory for standard use)
  • AC Line cords for projector Head
  • User Manual

Optional

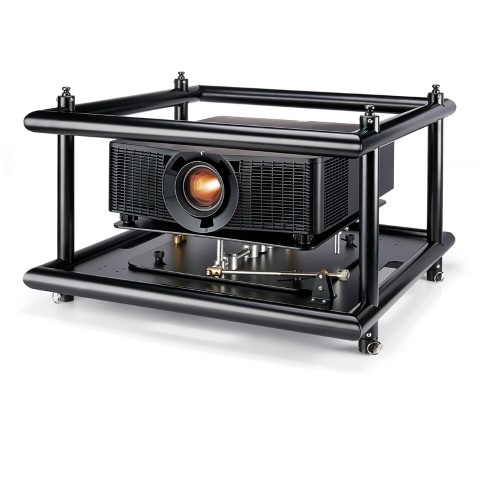

  • Rigging/Stacking Frame
  • Lens Adapter for E Series Lenses
  • 1DWUSB-BGN (Wireless Dongle for video and control)
  • Fog Filters - 3 Pack
  • Ceiling Mount
  • Ceiling Mount Extension Rod
  • Replacement Remote Control
​Lens mount
  • ​Tool-free lens insertion system
  • Boresight adjustable
  • Motorized horizontal and vertical lens offset (Memory Available)
  • Motorized zoom and focus adjustment (Memory Available for Full ILS lenses)
​Lens options

​Lenses

  • 0.84-1.02:1 Zoom Lens (No Zoom/Focus Memory) - Adapted 1.2-1.5:1 E Series Lens
  • 1.02-1.36:1 Zoom Lens (No Zoom/Focus Memory) - Adapted 1.5-2.0:1 E Series Lens
  • 1.2-1.5:1 Zoom Lens (Full ILS)
  • 1.5-2.0:1 Zoom Lens (Full ILS)
  • 2.0-4.0:1 Zoom Lens (Full ILS)
  • ​​​​​4.0-​7.2:1 Zoom Lens (Full ILS)

Offsets (Full ILS lenses)

  • +/- 133% Vertical (+/- 720 pixels)
  • +/- 50% Horizontal (+/- 480 pixels)
Power requirements

Operating Voltage

  • 100-240VAC @ 50/60 Hz

Current Rating

  • 5.5A max (220V), 12A max (110V)

Power Consumption

  • Normal Mode: 1100W max (220V) 1180W max (110V)
  • Eco Mode: 880W max (220V), 950W (110V)

Thermal Dissipation

  • 3753 BTU/hr max, 3003 BTU/hr Eco Mode
Dimensions

Dimensions (LxWxH) (without lens and feet)

  • 604 (L) x 520 (W) x 182 (H) mm
  • 23.78 (L) x 20.47 (W) x 7.16 (H) in.

Net Weight (without lens)

  • 23.8kg (52.5 lbs)

Shipping Dimensions

  • 790 (L) x 666 (W) x 352 (H) mm
  • 31.10 (L) x 26.22 (W) x 13.86 (H) in.

Shipping Weight

  • 28.5kg (62.8 lbs)
Operating Environment

Noise

  • Typical: 465W: 40dB(A)
  • Eco Mode: 370W: 37dB(A)

Temperature

  • 32-104°F (0-40°C)

Humidity

  • 10-85% non-condensing
Regulatory
  • UL/CSA/IEC 60950-1
  • FCC Class A
  • CE
  • CCC
  • KC
  • PSE
  • CU
  • SABS
  • BIS
  • VCCI
  • RCM

This product conforms to all relevant European directives, standards, safety, health and environmental concerns
RoHS, REACH, WEEE
Limited warranty
  • 3 years parts and labor (including light engine)
  • Lamp: 500 hours or one year (whichever comes first)
  • Contact an authorized Christie representative for full details of our limited warranty
