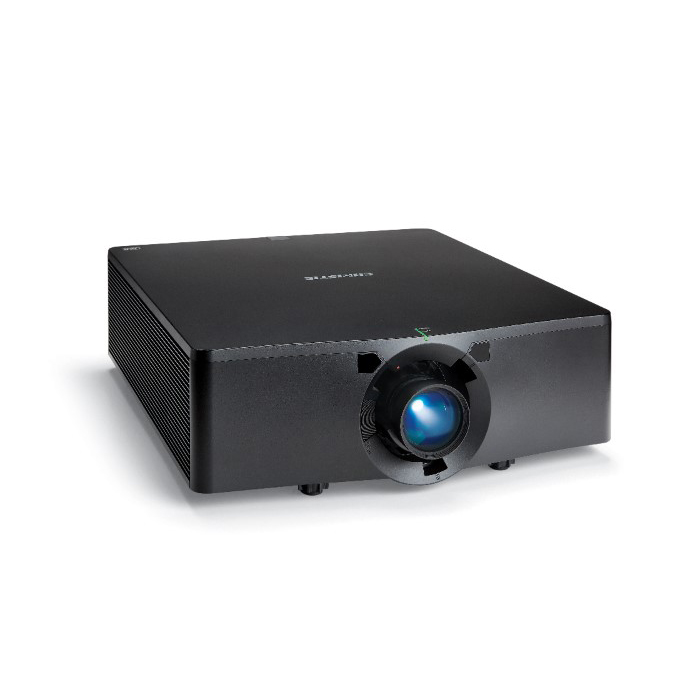

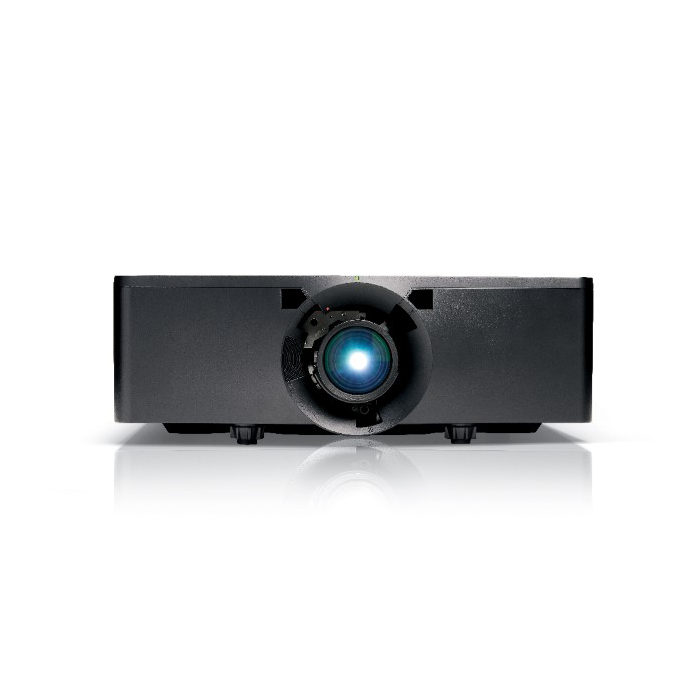

Christie D13WU-HS

Part Number: 140-015107-XX 1DLP laser phosphor projection in WUXGA resolution with super-quiet operation

Product characteristics

  • High-quality, brighter images
  • Smooth, seamless content
  • Unparalleled color reproduction
  • Quick, easy warping and blending
  • Stable, consistent performance – 24/7
  • Long life
  • Easy to handle and install with a lightweight, compact design
  • Loop through capability
  • Backed by industry-leading warranties and service
  • ​DICOM simulation mode for training purposes

  • Description
  • Spec
  • Option
  • Download

Achieve high-precision 2D and 3D images with a compact, super- quiet projection solution. Christie®D13WU-HS offers the world’s brightest 1DLP® laser phosphor projector boasting up to 13,500 lumens in WUXGA resolution, with Christie BoldColor Technology.

Christie BoldColor Technology

For ultimate satisfaction in laser phosphor projected content, Christie BoldColor Technology offers a premium viewing experience, taking color accuracy and image quality to the next level. Images are bold and realistic at high brightness levels, resulting in richer, more appealing visual content and meeting the Rec. 709 standard for high-definition color reproduction.

​Benefits:

  • High-quality, brighter images
  • Smooth, seamless content
  • Unparalleled color reproduction
  • Quick, easy warping and blending
  • Stable, consistent performance – 24/7
  • Long life
  • Easy to handle and install with a lightweight, compact design
  • Loop through capability
  • Backed by industry-leading warranties and service
  • ​DICOM simulation mode for training purposes

Christie BoldColor Technology infographic

What matters most to the ProAV community when choosing a laser phosphor projector? Find out this and more by viewing our Christie BoldColor Technology infographic.​​​

See the full infographic »











Anatomy of a laser phosphor projector

Learn about laser phosphor projection and discover the top 10 advantages of this emerging illumination platform​.​​​​

See the full infographic »


Brightness

  • 13,500 ISO lumens
  • 12,500 center lumens
  • 12,000 ANSI lumens

​Color wheel

  • 4 segment (RGBY) - 2X or 3X speed

Contrast (nominal)

  • 750,000:1 full on/off (Christie RealBlack enabled)
  • Dynamic contrast 7,500:1
  • 1200:1 full on/off (Christie RealBlack disabled)
  • 250:1 ANSI
Display

Type

  • 1 x 0.96” DMD

Native resolution

  • 1920 x 1200 (2,304,000 pixels) 16:10
Illumination system

Type

  • Laser phosphor with Christie BoldColor Technology

Typical lifetime

  • 20,000 hours

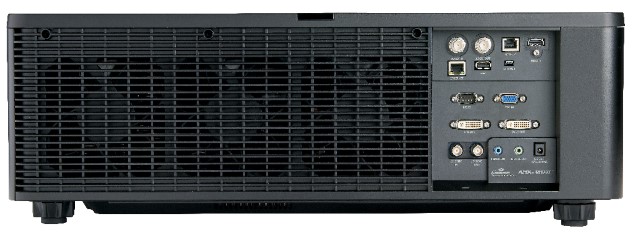

Signal inputs

Standard

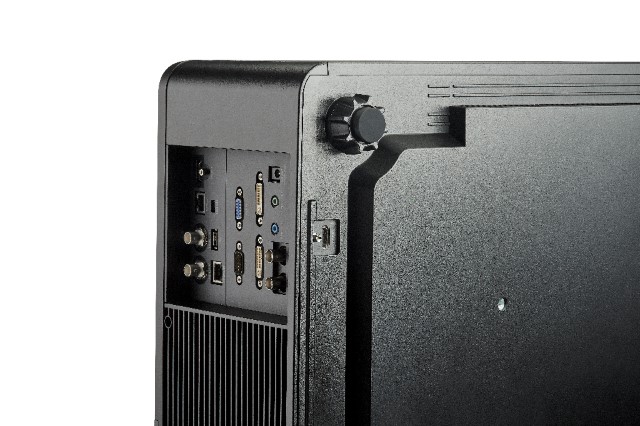

  • HDMI x 2 (one on rear panel, one on bottom of projector, independently selectable)
  • 3GSDI x 1 (BNC)
  • DVI-D x 1 (digital only)
  • HD15 x 1
  • USB x 1 (type B mini) - display over USB
  • USB x 1 (type A) - image viewer or WiFi dongle (optional)
  • HDBaseT (RJ45 x 1)
  • RJ45 x 1 (ChristiePresenter over wired network connection)

3D

  • HDMI 1.4, HDBaseT - frame packed, top/bottom, side-by-side
  • Up to 120Hz output
  • 3D Sync In (BNC) - for genlocking projectors
  • 3D Sync Out (BNC) - for genlocking projectors or controlling emitter or polarizer

Signals

  • HDTV formats VGA through to WUXGA (1920 x 1200)
  • Horizontal and vertical scaling while maintaining aspect ratio, all inputs

Pixel clock

  • 162 MHz

Scan rates

  • Horizontal: 15 kHz to 91 kHz
  • Vertical: 24 Hz to 85 Hz
Signal outputs

Monitor out (loop through)

  • 3GSDI x 1 (BNC)
  • DVI-D x 1 (digital only)
Control and networking
  • RS232 In
  • Control via HDBaseT
  • Ethernet (10/100) RJ45 with ChristieNET connectivity

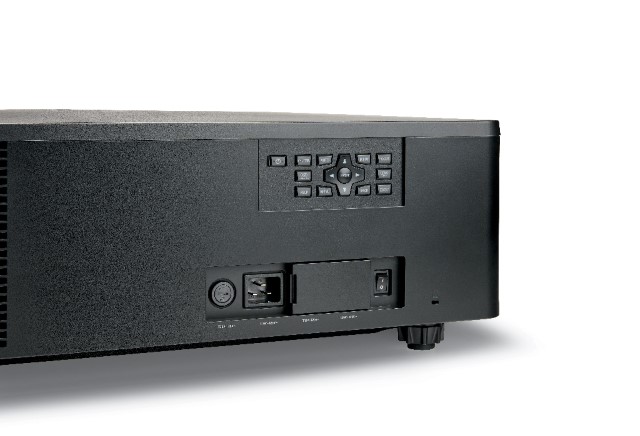

  • Built-in backlit keypad
  • Wired remote control (3.5mm stereo) - Loop out available for daisy chaining
Accessories

Standard

  • IR remote w/ wired remote jack (wire not included)
  • AC line cords for projector head
  • User manual

Optional

  • Christie One Rigging Frame
  • Lens adapter for E Series lenses
  • 1DWUSB-BGN (Wireless dongle for video and control)
  • HS fog filter covers + filters (order once per projector then only filters refills)
  • HS fog filter refills (1 set)
  • Christie One Mount Plus
  • One Mount Extender Rod
  • One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod)
  • Replacement remote control
Lens mount
  • Boresight adjustable
  • Motorized horizontal and vertical lens offset (memory available)
  • Motorized zoom and focus adjustment (memory available for full ILS lenses)
Lens options

Lenses

  • 0.84-1.02:1 zoom lens (no zoom/focus memory) - adapted 1.2-1.5:1 E Series lens
  • 1.02-1.36:1 zoom lens (no zoom/focus memory) - adapted 1.5-2.0:1 E Series lens
  • 1.2-1.5:1 zoom lens (full ILS)
  • 1.5-2.0:1 zoom lens (full ILS)
  • 2.0-4.0:1 zoom lens (full ILS) (Not available in the U.S. at this time)​​​
  • 4.0-7.0:1 zoom lens (full ILS) (Not available in the U.S. at this time)​​​​

Offsets (Full ILS lenses)

  • +/- 120% Vertical (+/- 720 pixels)
  • +/- 50% Horizontal (+/- 480 pixels)

Offsets 0.84-1.02:1

  • +37 / -60% vertical (+222/-363 pixels)
  • +15 / -44% horizontal (+152/-426 pixels)

Offsets 1.02-1.36:1

  • +51 /-53% vertical (+307/-318 pixels)
  • ​+11 / -50% horizontal (+107/-480 pixels)
Power requirements

Operating voltage

  • Normal: 100-120VAC / 200-240VAC @ 60/50 Hz

Power consumption

  • Normal mode: 1220W +/-15% (220V),  1300W +/-15% (100V)
  • ECO1 mode: 1000W +/-15% (220V), 1050W +/-15%(100V)
  • ECO2 mode: 660W +/-15% (220V), 700W +/-15%(100V)

Operating current

  • Normal mode: 7A (200-240VAC), 14A (100-120VAC)

Dissipation

  • Normal mode: 4435 BTU/hr
  • ECO1 mode: 3580 BTU/hr
  • ECO2 mode: 2390 BTU/hr
Audible noise
  • Typical: 39dB(A)
  • Eco mode: 37dB(A)
Physical specs

Dimensions

  • (L x W x H) 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet

Weight (without lens)

  • 93.7 lb (42.5 kg)

Shipping dimensions

  • (L x W x H) 36.34 x 33.19 x 20.20" (923 x 843 x 513mm)

Shipping weight

  • 119 lb (54 kg)
Operating environment
  • Temp: 0 to 40° C (32 to 104° F)
  • Humidity: 0 - 85% non-condensing
Regulatory

​Contact Christie for the timing of certifications:

  • TUV
  • UL/CSA/IEC 60950-1
  • FCC Class A
  • CE
  • FDA
  • CCC
  • KC
  • PSE
  • CU
  • SABS
  • BIS
  • VCCI
  • RCM
  • Ukr
  • TER
  • SASO

This product conforms to all relevant European directives, standards, safety, health and environmental concerns

  • RoHS
  • REACH
  • WEEE
Limited warranty
  • Three years parts and labor on the projector
  • Three years or 15,000 hours parts and labor on the illumination system*
  • Contact an authorized Christie representative for full details of our limited warranty
