Brightness

• 8,500 center (8,200 ANSI) lumens

Contrast

• 2500:1 full on, full off

Uniformity

• ≤90%

Type

• 1DLP 0.65" DMD

Native Resolution

• 1920 x 1080 HD

Type

• Dual 370W P-VIP

Life

• Up to 2000 hours in standard mode
• Up to 4000 hours in eco mode
• Up to 500 hours in portrait mode

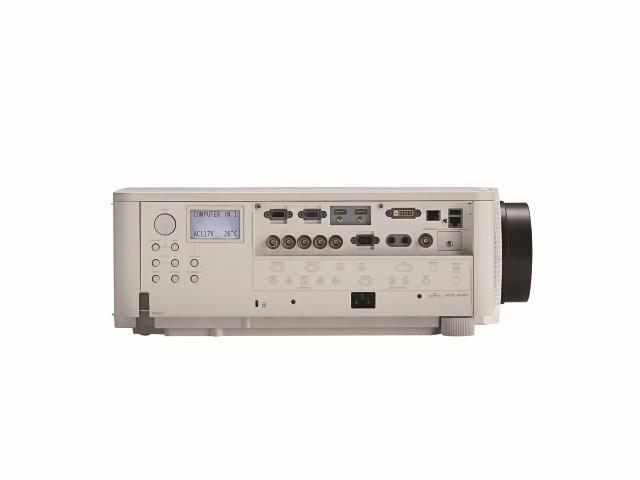

Standard

• Computer  D-sub 15 pin mini jack x1
• 3G-SDI x1
• BNC connector x1 (composite)
• HDMI connector x2
• DVI-D connector x1
• RJ-45 x1 (HDBaseT)
• D-sub 9 pin x1 (RS232c)
• RJ-45 x1 (LAN)
• USB type A connector x1 (optional wireless USB or PC-less)
• Wired remote control (3.5mm)

Signals

• 525i(480i)
• 525p(480p)
• 625i(576i)
• 1125i(1080i @ 50/60)
• 750p(720p @ 50/60)
• 1125p(1080p @ 50/60)

Pixel Clock

• 27MHz～150MHz

Standard

• Computer out D-sub 15 pin mini jack x1
• Wired remote control (3.5mm)

Control & Networking

• RJ-45 x1 (LAN)
• RJ-45 x1 (HDBaseT)
• D-sub 9 pin x1 (RS232c)

Standard

• Power cord (US cord, 3m) / (Euro cord, 3m)
• Power cord (China cord, 3m Only For China Models)
• RGB cable (2m)
• Wireless remote control / AA" batteries x2
• Adapter cover
• Ferrite core and band x2
• Cable tie x2
• User's manual
• User’s manual CD x1
• Safety guide
• Quick setup guide
• Network quick setup guide
• Operating guide
• Network guide
• Instant stack guide
• Technical guide
• Software license agreement

Optional

• Replacement lamp - P/N 003-005053​-XX
• Replacement hybrid filter - P/N  003-004775-XX
• Optional wireless dongle (USB) - P/N 121-116109-XX
• Replacement remote

• 2 HDMI input
• eClarity & HDCR
• Built in ultra rich color wheel
• HD​BaseT
• Portrait mode capable
• Edge blending
• Geometric correction
• Status monitor display
• Motorized zoom , focus and lens shift with memory
• PC-less presentation
• 3G-SDI

Operating Voltage

• 110-120V AC
• 220-240V AC

Current Rating

• 10.5A +10% or less at 110V-120V AC
• 5.2A+10% or less at 220V-240V AC

Power Consumption

• AC110 - 120V, 50/60Hz 1060W
• AC220 - 240V, 50/60Hz 990W
• Less than 0.5W @ standby with saving. (AC230V):
• Saving mode disables MONITOR OUT, AUDIO OUT, speaker sound, LAN communication and RS232C control except power ON command in standby

Thermal Dissipation

• 3618BTU(110-120V)
• 3379BTU(220-240V)

Dimensions (LxWxH) (without lens and feet in min. position)

• 463 (L) x537(W) x 174 (H) mm
• 18.2 (L) x 21.1(W) x 6.9 (H) in.

Net Weight (without lens)

• 17.0kg max (37.5 lbs)

Shipping Dimensions

• 561 (L) x 743 (W) x 315 (H) mm
• 22.1 (L) x 29.3 (W) x 12.4 (H) ins

Shipping Weight

• 22.5kg (49.6 lbs)

Noise

• Standard mode: 36 dBA / 29 dBA Eco mode

Temperature

• 32-113°F (0-45°C) from sea level to 1600m (5249 feet)
• 32-104°F (0-40°C) from 1600m (5249 feet) to 3048m (10000 feet)

Altitude

• 0 to 10000 feet (0 to 3048m)

Humidity

• 10-80% non-condensing

This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC)

• FCC, Part 15, Subpart B, Class A
• EN55022/CISPR22 Class A
• ICES/NMB003 (A)
• EN55024 / CISPR24
• IEC 60950-1
• UL 60950-1
• EN 60950-1
• CAN/CSA C22.2 No. 60950-1
• Directive 2011/65/EU (RoHS)
• Directive 2012/19/EU (WEEE)
• EU Regulation (EC) No. 1907/2006 (REACH)
• Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU),  CCC (China), EAC (Russia), RCM (Australia and New Zealand), India (BIS), Mexico (NOM), Saudi Arabia, South Africa

• 3 years parts and labor (including light engine)
• Lamp: 500 hours or one year (whichever comes first)
• Contact an authorized Christie representative for full details of our limited warranty
