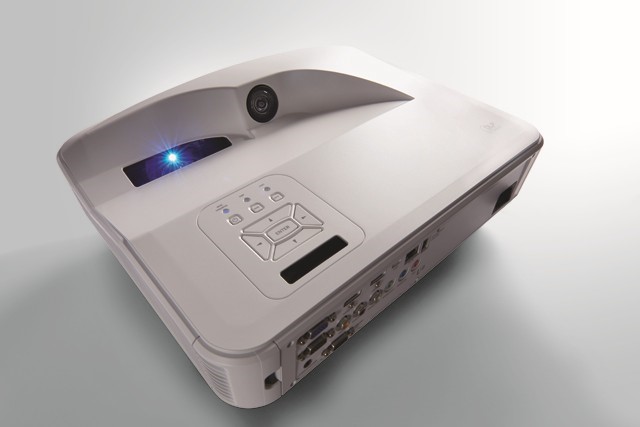

Christie Captiva DHD400S 1DLP ultra short throw projector

Part Number: 140-012104-XX 3,500 lumen 1DLP laser phosphor ultra short throw projector

Product characteristics

  • Compact, quiet, powerful and bright
  • Standard HD aspect ratio
  • 20,000 hours of low cost operation
  • Reliable, easy to use and economical
  • Multiple orientation options and 3D formats
  • Easily add interactivity

  • Description
  • Spec
  • Option
  • Download

Make the most out of your space with the Christie® Captiva DHD400S 1DLP® ultra short throw projector. With one of the shortest throw distances available, this compact, quiet and powerful 3,500 lumen projector allows you to maximize your space without sacrificing visual impact. Easily add interactivity capabilities and create and share unique user experiences whether it’s in the classroom, conference room or retail environment.

Featuring laser phosphor illumination, the Christie Captiva DHD400S provides 20,000 hours of low cost and low maintenance operation. With a suite of easy-to-use features, multiple mounting options, instant on/off and a very attractive price point, the Christie Captiva DHD400S lets you focus on what’s important – the content.

Features

  • Compact, quiet, powerful and bright
  • Standard HD aspect ratio
  • 20,000 hours of low cost operation
  • Reliable, easy to use and economical
  • Multiple orientation options and 3D formats
  • Easily add interactivity

Christie support and service

All Christie products are backed by industry-leading warranties, renowned service and support. We ensure our customers are well supported with training, service and technical support through our extensive distribution and support network.

  • 3500 center lumens
  • 3100 ANSI lumens
  • 3500 ISO lumens
  • 1800:1 contrast ratio (Full on/off)
Display
  • 0.65” 1DLP chip
  • 1920 x 1080 (16:9)
  • 80-100" diagonal image size
Illumination
  • Solid state (Laser phosphor)
  • 20,000 hrs
Signals

Standard

  • HDMI x 2
  • VGA x 1 + monitor out or VGA x 2
  • VGA audio in (3.5mm phone jack)
  • Composite video x 1 (RCA) + audio (RCA x 2)
  • Microphone input
  • USB A (for use with optional Wireless Dongle)

Max input pixel rate

  • 1600 x 1200 @ 60Hz (162MHz)
  • 1920 x 1200 @ 60Hz reduced blanking (154 MHz)

3D

  • Frame packed/side-by-side/top and bottom 3D (HDMI 1.4a)
  • Frame sequential DLP link 3D (VGA/HDMI)
  • Frame sequential/field sequential HQFS 3D (Composite/S-Video)

Pixel Clock

  • 162 MHz

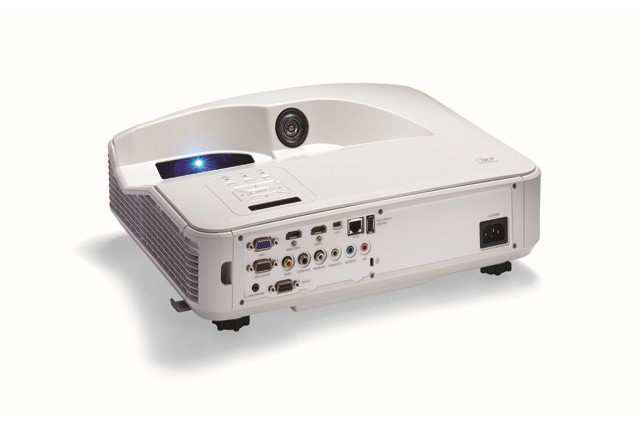

Inputs, control and networking
  • VGA monitor out (or second VGA in)
  • 10W speaker
  • Audio output (3.5mm phone jack)
  • RS-232 in
  • Ethernet (100BaseT) RJ45

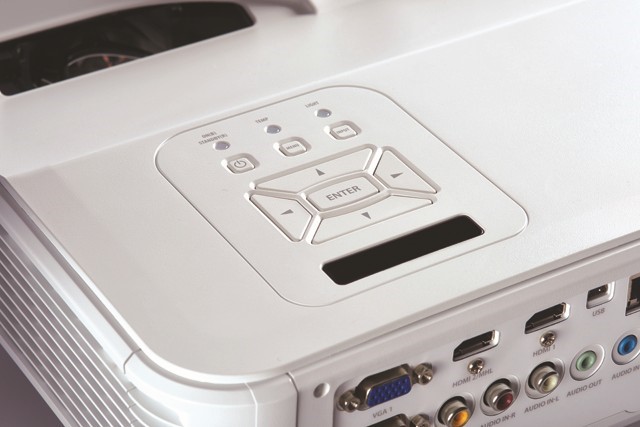

  • Built-in keypad
  • Compatible with Crestron RoomView, AMX, PJ Link
Accessories

Standard

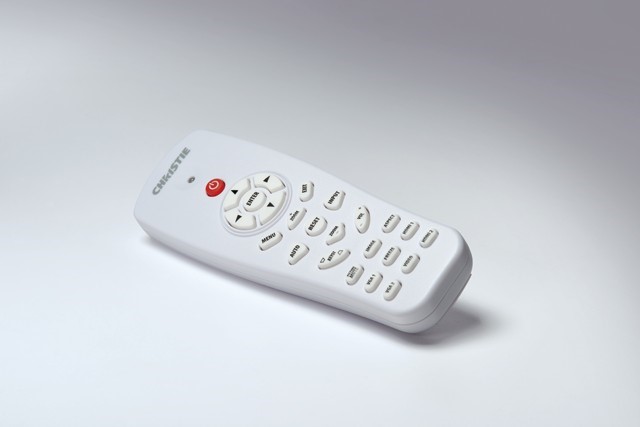

  • IR remote
  • AC Line cord for projector Head
  • VGA cable

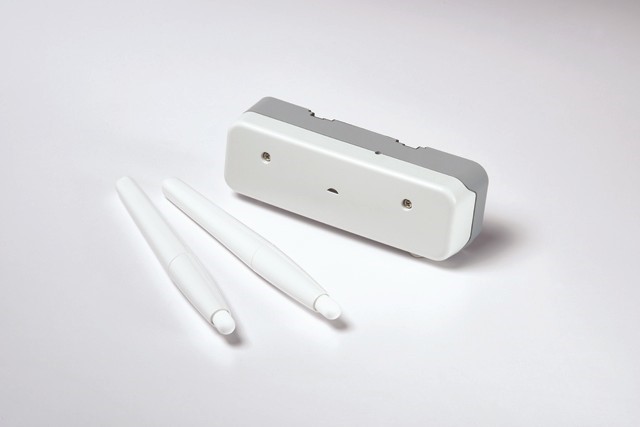

  • Camera for interactivity accessories
  • User manual

Optional

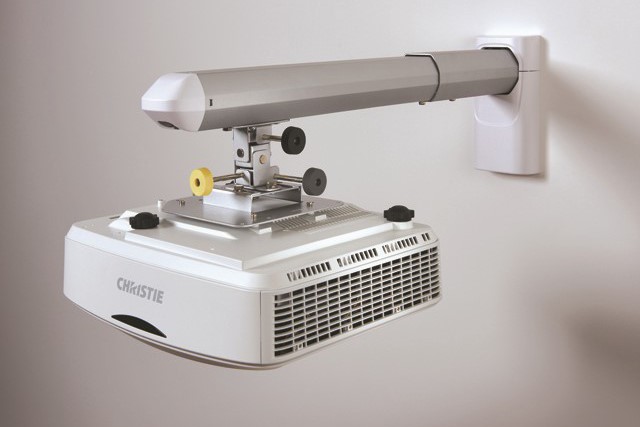

  • Wall mount
  • IR pens
  • Captiva Touch (laser IR curtain)
Lens
  • Focus adjustment

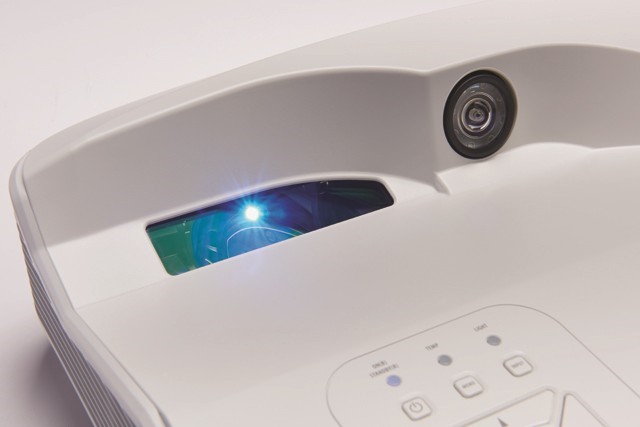

  • 0.25:1 ultra-​short throw lens
  • Fixed offset based on image size
Power requirements



Operating voltage

  • 100-240 VAC @ 50/60 Hz

Power consumption

  • 335W max
  • 225W eco mode

Operating current

  • 3.5A max

Dissipation

  • 1143 BTU/hr max
  • 768 BTU/hr eco mode
Physical

Audible noise

  • Standard mode: 36dB(A)
  • Eco mode: 32dB(A)

​Size

  • (LxWxH) 12.20 x 15.08 x 4.06"
    (310 x 383 x 103mm) w/o feet

Weight

  • 12.1lbs (5.5 kg)

Shipping size

  • (LxWxH) 19 x 16.5 x 12.9"
    (483 x 420 x 328 mm)

Shipping weight

  • 19.4lbs (8.8kg)
Operating environment
  • Operating temperature: 40-104°F (5-40°C)
  • Humidity (noncondensing): 5-90%
Regulatory approvals



This product conforms to all relevant European directives, standards, safety, health and environmental concerns.

Directives

  • RoHS
  • REACH
  • WEEE
  • UL/CSA/IEC 60950-1
  • FCC Class A
  • CE
  • CCC
  • KC
  • PSE
  • VCCI
  • CU
  • BIS
  • RCM and SABS
Limited warranty
  • Three years on the projector
  • Three years or 15,000 hours on the illumination system1
  • Contact an authorized Christie representative for full details of our limited warranty
