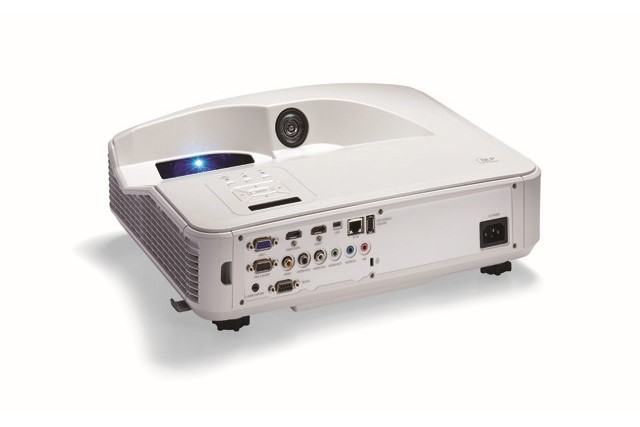

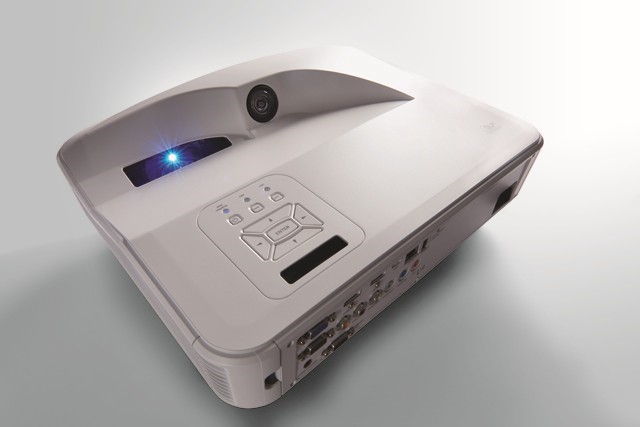

Christie Captiva DUW350S 1DLP ultra short throw projector

Part Number: 140-011103-XX 3,000 lumen 1DLP laser phosphor ultra short throw projector

Product characteristics

  • Compact, quiet, powerful and bright
  • Unique ultra wide aspect ratio
  • 20,000 hours of low cost operation
  • Reliable, easy to use and economical
  • Multiple orientation options
  • Easily add interactivity
  • Christie support

  • Description
  • Spec
  • Option
  • Download

Captivate audiences or inspire collaboration with striking, ultra wide visuals with the Christie® Captiva DUW350S ultra short throw projector. Create high definition canvases up to 140” diagonal in size with this 3,000 lumen, 1DLP® lampless projector. With an impressive 16:6 aspect ratio, you’re able to run multiple applications side-by-side for presentation and collaboration ease. Or use the entire space to showcase your content in unique ways that attract and engage audiences. Easily add interactivity capabilities for an enhanced user experience.

Featuring laser phosphor illumination, the Christie Captiva DUW350S provides 20,000 hours of low cost and low maintenance operation. With a suite of easy-to-use features, multiple mounting options, 3D, instant on/off and a very attractive price point, the Christie Captiva DUW350S lets you focus on what’s important – the content.

Features

  • Compact, quiet, powerful and bright
  • Unique ultra wide aspect ratio
  • 20,000 hours of low cost operation
  • Reliable, easy to use and economical
  • Multiple orientation options
  • Easily add interactivity

Christie support and service

All Christie products are backed by industry-leading warranties, renowned service and support. We ensure our customers are well supported with training, service and technical support through our extensive distribution and support network.

  • 3000 center lumens
  • 2700 ANSI lumens
  • 3000 ISO lumens
  • 1800:1 contrast ratio (Full on/off)
Display
  • 0.65” 1DLP chip
  • 1920 x 720 (16:6)
  • 100-140" diagonal image size
Illumination
  • Solid state (Laser phosphor)
  • 20,000 hrs
Signals

Standard

  • HDMI x 2
  • VGA x 1 + monitor out or VGA x 2
  • VGA audio in (3.5mm phone jack)
  • Composite video x 1 (RCA) + audio (RCA x 2)
  • Microphone input
  • USB A (for use with optional Wireless Dongle)

Max input pixel rate

  • 1600 x 1200 @ 60Hz (162MHz)
  • 1920 x 1200 @ 60Hz reduced blanking (154 MHz)

3D

  • Frame packed/side-by-side/top and bottom 3D (HDMI 1.4a)
  • Frame sequential DLP link 3D (VGA/HDMI)
  • Frame sequential/field sequential HQFS 3D (Composite/S-Video)

Pixel Clock

  • 162 MHz

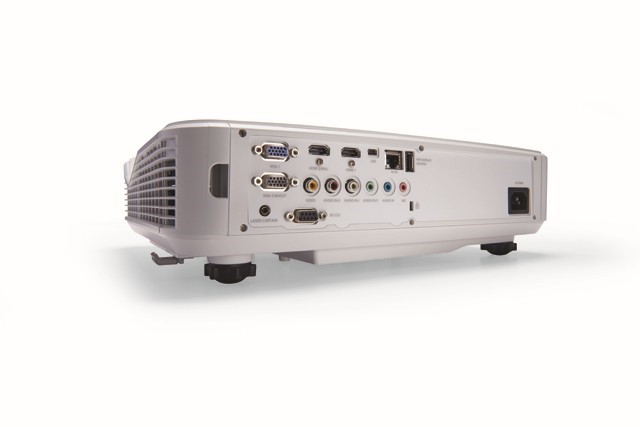

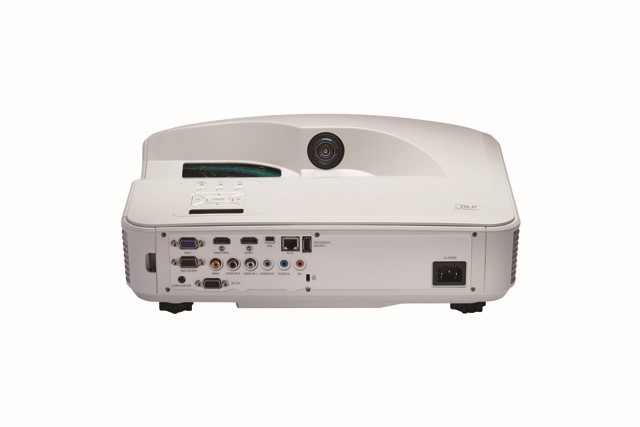

Inputs, control and networking
  • VGA monitor out (or second VGA in)
  • 10W speaker
  • Audio output (3.5mm phone jack)
  • RS-232 in
  • Ethernet (100BaseT) RJ45
  • Built-in keypad
  • Compatible with Crestron RoomView, AMX, PJ Link
Accessories

Standard

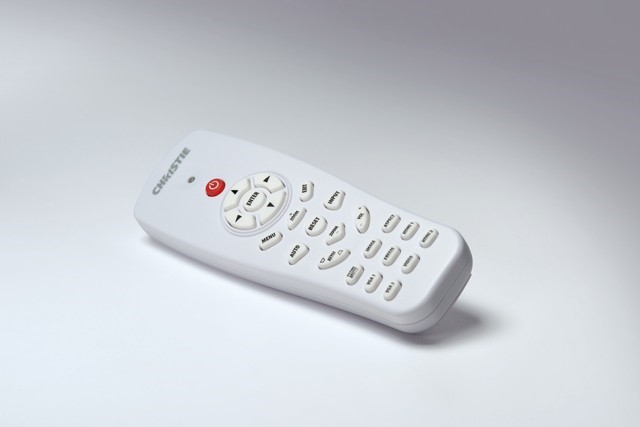

  • IR remote
  • AC Line cord for projector Head
  • VGA cable
  • Camera for interactivity accessories
  • User manual

Optional

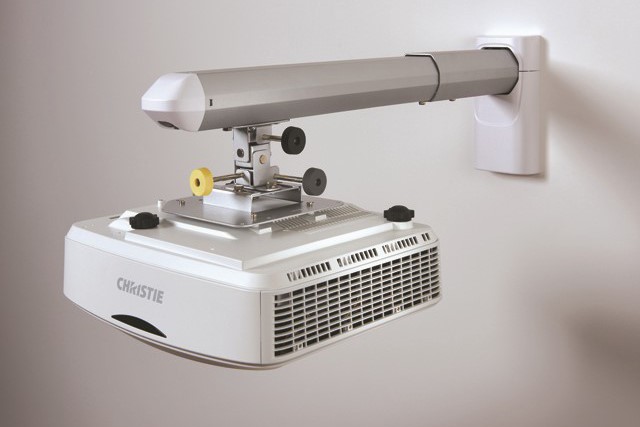

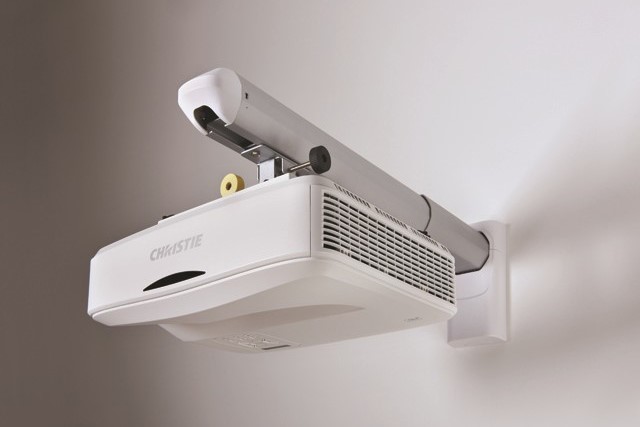

  • Wall mount
  • IR pens
  • Captiva Touch (laser IR curtain)

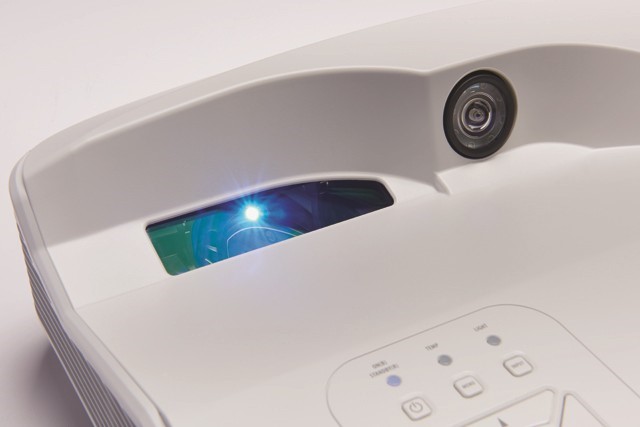

Lens
  • Focus adjustment
  • 0.25:1 ultra-​short throw lens
  • Fixed offset based on image size
Power requirements



Operating voltage

  • 100-240 VAC @ 50/60 Hz

Power consumption

  • 335W max
  • 225W eco mode

Operating current

  • 3.5A max

Dissipation

  • 1143 BTU/hr max
  • 768 BTU/hr eco mode
Physical

Audible noise

  • Standard mode: 36dB(A)
  • Eco mode: 32dB(A)

​Size

  • (LxWxH) 12.20 x 15.08 x 4.06"
    (310 x 383 x 103mm) w/o feet

Weight

  • 12.1lbs (5.5 kg)

Shipping size

  • (LxWxH) 19 x 16.5 x 12.9"
    (483 x 420 x 328 mm)

Shipping weight

  • 19.4lbs (8.8kg)
Operating environment
  • Operating temperature: 40-104°F (5-40°C)
  • Humidity (noncondensing): 5-90%
Regulatory approvals



This product conforms to all relevant European directives, standards, safety, health and environmental concerns.

Directives

  • RoHS
  • REACH
  • WEEE
  • UL/CSA/IEC 60950-1
  • FCC Class A
  • CE
  • CCC
  • KC
  • PSE
  • VCCI
  • CU
  • BIS
  • RCM and SABS
Limited warranty
  • Three years on the projector
  • Three years or 15,000 hours on the illumination system1
  • Contact an authorized Christie representative for full details of our limited warranty
