Christie Boxer 4K30

Part Number: 144-001012-XX​ 4K, 30,000 lumens, 60Hz, 3DLP projector

Product characteristics

  • Christie TruLife processing ensures stunning color reproduction and image quality
  • Mercury lamps for more than double the life of Xenon illumination
  • Omnidirectional deployment capabilities
  • Built-in warp and blend functionality

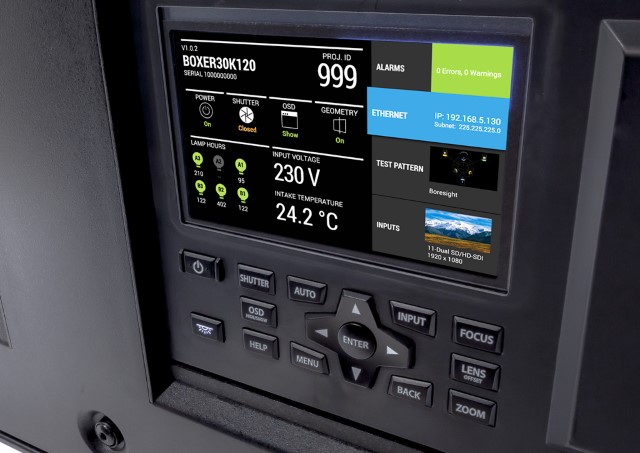

  • Preview screen for at-a-glance status updates
  • Integrated near field communication (NFC) for lamp information tracking
  • Weighs only 160lbs

  • Description
  • Spec
  • Option
  • Download

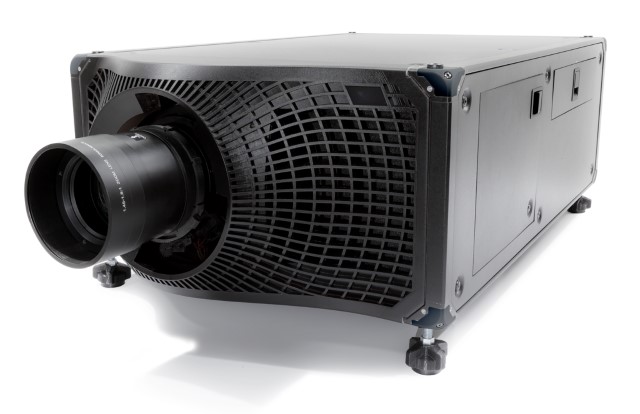

Christie® Boxer 4K30 is a 30,000 lumen, 4K resolution, 3DLP® projector designed for high impact live events. With intelligent design and feedback, Christie Boxer 4K30 is the most profit-focused professional projector in the market that will help you deliver an unprecedented user experience time and again. The Boxer 4K30 ensures a low cost of ownership, increases your return on investment, and future proofs your fleet – in the smallest, smartest and most efficient 30K projector available.

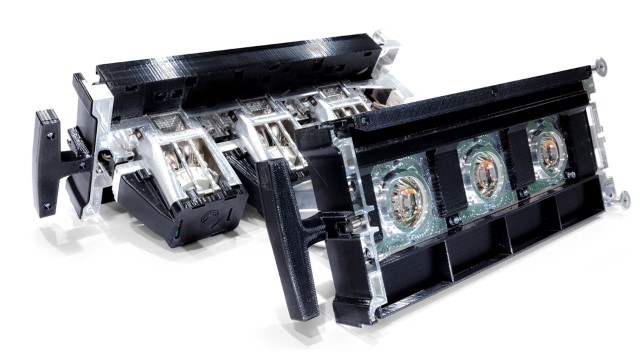

Featuring six-lamp Mercury illumination, the Christie Boxer 4K30 provides 1,500 hours of lamp-life to 70% brightness. With the added benefits of single-phase power, built-in warping and blending, omnidirectional installation options, a full-range of connectivity and Christie TruLife™ electronics, the Christie Boxer 4K30 packs a punch in creating powerful and inspiring visual experiences.

Features

  • Christie TruLife processing ensures stunning color reproduction and image quality
  • Mercury lamps for more than double the life of Xenon illumination
  • Omnidirectional deployment capabilities
  • Built-in warp and blend functionality
  • Preview screen for at-a-glance status updates
  • Integrated near field communication (NFC) for lamp information tracking
  • Weighs only 160lbs

We’re here to support your investment

Backed by Christie's industry-leading warranties, service and support, you can feel confident investing in the Christie Boxer 4K30. If you have any questions, or if you’d like to speak to a Christie sales representative, please contact us.

Brightness
  • 29,000 ANSI (typical)
  • 30,000 Center
  • 32,500 ISO
Contrast
  • 2000:1
Display
  • 3DLP 1.38" DMD
Resolution
  • 4K (4096 x 2160)
Illumination
  • 6x 450W NSH
Lamp Life
  • 1500 hours to 70% initial brightness
Inputs
  • 2 x Dual 3G HD-SDI input card
  • 2 x Twin DisplayPort input card
  • HDBaseT
Pixel clock
  • 1.2Gpx/s - TruLife Electronics
Networking
  • Keypad
  • RS232 in
  • Ethernet (10/100) RJ45
Optional accessories
  • Dual link DVI input card
  • Twin HDMI input card
  • Dual 3G HD-SDI input card
  • Twin DisplayPort input card​
  • Rigging and stacking frame
  • HB Multi input card
  • Quad DisplayPort input card (HB)
Lens mount
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorized horizontal and vertical lens offset
  • Motorized zoom and focus adjustment
Lens options

Fixed

  • 0.72:1 (no offset)
  • 0.9:1 (Offset: V: ±45%, H:​ ±18%)

Zoom

  • 1.13-1.31:1 (Offset: V: ±60%, H: 23%)
  • 1.31-1.63:1 (Offset: V: ±82%, H: 28%)
  • 1.63-2.17:1 (Offset: V: ±86%, H: 32%)
  • 1.98-2.71:1 (Offset: V: ±13%, H: 4%)
  • 2.71-3.89:1 (Offset: V: ±43%, H: 14%)
  • 3.89-5.43:1 (Offset: V: ±86%, H: 22%)
  • 4.96:1-7.69:1 (Offset: V: ±56%, H: 19%)
Power
  • 200-240V
  • 19A
Dimensions
(L x W x H)
  • 37.75 x 23.5 x 12"
  • 959 x 597 x 305 mm
Weight
  • ~160lbs
Operating environment
  • Temperature: 5 to 40°C (41 to 104°F)
  • Humidity: 10 to 80%, non-condensing
Limited warranty
  • 3 years
  • Data does not exist.
