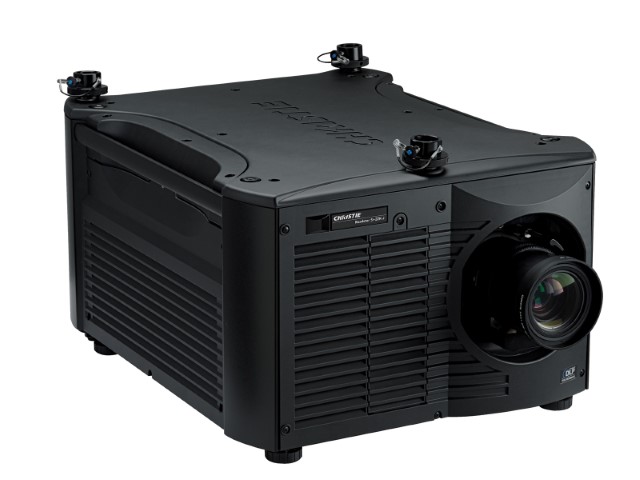

Roadster S+22K-J 3DLP projector

Part Number: 132-016119-XX 3DLP SXGA+ 22,000 center lumens Xenon lamp digital projector

Product characteristics

  • SXGA+ resolution (1400 x 1050)
  • 22,000 center lumens
  • Embedded Christie Twist™ for image warping and edge blending
  • Variable contrast ratio of 1600-2000:1 full field | 650:1 ANSI for crisp, detailed images
  • 3.0kW Xenon bubble lamp module
  • Comprehensive Color Adjustment (CCA™)
  • Dust-sealed engine
  • Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset
  • Multiwindowing and screen processing (up to a 3x3 array)
  • CT lens mount (optional)
  • Yellow notch filter (optional)
  • Set-up lights help users see menu displays in low-light environments
  • Hybrid stacking
  • User-replaceable lamps
  • Built-in portrait capabilities

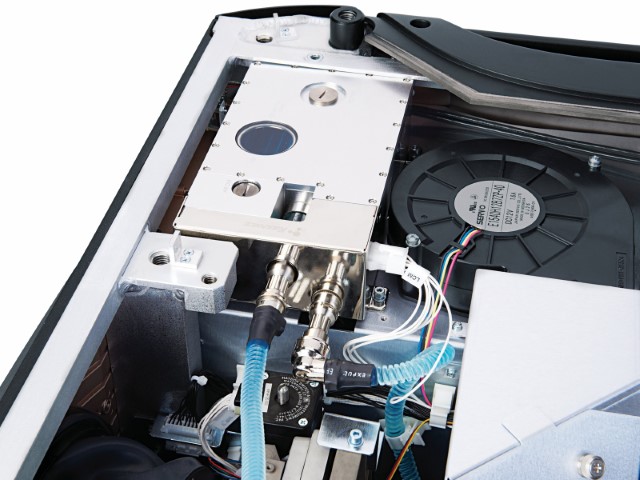

  • Liquid cooling allows for operating temperatures up to 104°F (40°C)
  • 3D capable model available in the Mirage Series
  • 3D upgradable

  • Description
  • Spec
  • Option
  • Download

Creating visually compelling displays is paramount to your success. That’s our business too, so we’ve made higher brightness, Christie® Twist™, 3D upgradability and flexibility standard in the Christie Roadster S+22K-J. You’ll see we’ve upgraded our existing Xenon 3DLP® platform with the features and functionality that you rely on to share, collaborate and create.



Technology

3DLP

Resolution

1400 x 1050 SXGA+

Brightness

22,000 center lumens

Contrast

1600-2000:1 full field | 650:1 ANSI

Illumination

3.0kW Xenon bubble lamp module

Lamp Life

750 hours typical lamp life

Height

16.5" (419 mm)

Width

24.5" (621 mm)

Depth

32.0" (815 mm)

Weight

160 lb (72.5 kg)



Ideal for large venues - building displays, churches, classrooms, concerts, conference rooms, live events, tradeshows and more, the Roadster S+22K-J is fitted with the broadest range of high-quality lenses – all with Intelligent Lens System (ILS™) capabilities. You can use existing stacking hardware, lenses1, lamps, input cards2 and other Christie accessories with this new line of projectors. Fly, rig, stack and ship it - the Roadster S+22K-J performs flawlessly.

This projector couples the benefits of Xenon illumination – for the most natural color accuracy and stability - with the next level of technology, performance and flexibility. The additional standard features, an expanded lens suite and world-renowned Christie warranties, service and support, ensure the Christie Roadster S+22K-J provides high performance and more lumens per watt in the smallest chassis in its class.

With the Christie J Series you can customize your model according to your needs. Each projector ships standard with the ILS lens mount, but if you prefer to use your existing inventory of CT lenses or require a yellow notch filter (YNF), you can choose, at the time of purchase, the following options:

Christie Roadster S+22K-J

ILS lens mount (ships standard)

ILS lens mount + YNF*

CT lens mount*

CT lens mount + YNF*

Part number

132-016119-XX

132-016311-XX

132-016210-XX

132-016412-XX


*Please allow six weeks for delivery.

Features

  • SXGA+ resolution (1400 x 1050)
  • 22,000 center lumens
  • Embedded Christie Twist™ for image warping and edge blending
  • Variable contrast ratio of 1600-2000:1 full field | 650:1 ANSI for crisp, detailed images
  • 3.0kW Xenon bubble lamp module
  • Comprehensive Color Adjustment (CCA™)
  • Dust-sealed engine
  • Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset
  • Multiwindowing and screen processing (up to a 3x3 array)
  • CT lens mount (optional)
  • Yellow notch filter (optional)
  • Set-up lights help users see menu displays in low-light environments
  • Hybrid stacking
  • User-replaceable lamps
  • Built-in portrait capabilities
  • Liquid cooling allows for operating temperatures up to 104°F (40°C)
  • 3D capable model available in the Mirage Series
  • 3D upgradable

1 - CT refers to the suite of lenses available for use with Christie’s legacy Xenon platform. Note: ILS capabilities are not available with CT lenses and lens mount.

2 - Legacy input cards are not compatible with Christie J Series models. The input card supported by the J Series are compatible with Christie M Series models.


  • Brightness: 22,000 center (20,000 ANSI) lumens
  • Contrast: 1600-2000:1 full field | 650:1 ANSI
  • Uniformity: 90% brightness uniformity

Display

  • Type: 3DLP 0.95” DMD
  • Native resolution: SXGA+ (1400 x 1050)

Lamp

  • Type: 3.0kW Xenon bubble lamp module
  • Life: 750 hours typical lamp life

Input

Standard

  • Analog
  • Dual link DVI
  • SD/HD-SDI
  • Video Decoder

Optional

  • Analog
  • Dual link DVI
  • SD/HD-SDI
  • Video Decoder
  • Twin HDMI

Signals

  • HDTV formats VGA through to QXGA (2048 x 1536)
  • Accepts all current HDTV/DTV formats
  • Multi-standard video decoder
  • Horizontal and vertical scaling, all inputs

Pixel clock

  • 165 MHz

Scan rates

  • 15 kHz to 120 kHz Horizontal
  • 23.97 Hz to 150 Hz Vertical

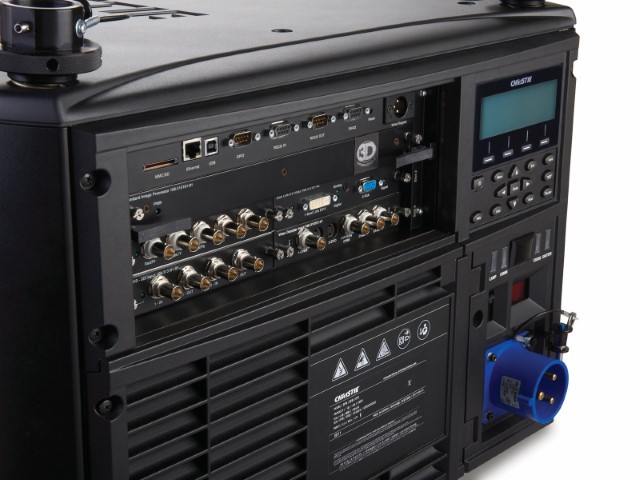

Control and networking
  • RS232 In/Out
  • RS422 In
  • Ethernet (10/100)
  • USB Device
  • GPIO (RS232 9 Pin male connector)
  • Built-in, backlit LCD keypad
  • Remote control (with optional wired XLR connection)

Lens options

Fixed

  • ILS Lens 0.73:1 SX+ / 0.67:1 HD*
  • ILS Lens 1.2:1 SX+ / 1.1:1 HD

Zoom

  • ILS Lens 1.25-1.6:1 SX+ / 1.16-1.49:1 HD**
  • ILS Lens 1.5-2.0:1 SX+ / 1.4-1.8:1 HD
  • ILS Lens 2.0-2.8:1 SX+ / 1.8-2.6:1 HD
  • ILS Lens 2.8-4.5:1 SX+ / 2.6-4.1:1 HD
  • ILS Lens 4.5-7.5:1 SX+ / 4.1-6.9:1 HD
  • ILS Lens 7.5-11.2:1 SX+ / 6.9-10.4:1 HD

Offsets

  • +/- 100% Vertical
  • +/- 50% Horizontal
  • (* +/-23%V   +/- 13%H)
  • (** +/-70%V   +/- 45%H)

Accessories

Standard

  • IR remote
  • Line cord

Optional

  • 3.0kW Xenon lamp
  • 3.0kW Xenon lamp bare bulb kit
  • Bulb alignment tool
  • Analog input card
  • Dual link DVI input card
  • Video decoder input card
  • Dual SD/HD-SDI input card
  • Twin HDMI input card
  • DMX512 interface card
  • ILS lens adapter kit
  • Fog juice filters
  • Edge-blending kit
  • Remote IR sensor
  • 3D upgrade kit
  • Christie AutoStack™

Enhanced feature sets

  • 3D upgradable
  • Embedded Christie Twist™
  • Embedded image tiling
  • Intelligent Lens System (ILS)
  • Liquid cooling
  • Advanced block artifact reduction
  • ChristieNET ™ Web interface
  • User-friendly, intuitive LCD keypad
  • Advanced Loop-Thru twin HDMI card
  • Set-up lights
  • Lamp memory module
  • User replaceable lamps
  • Advanced, 10-bit processing
  • Automatic shut off and ECO mode
  • Dust-sealed light engine
  • SNMP (simple network management protocol)
  • DHCP (dynamic host configuration protocol)
  • Hybrid stack
  • Compatibility with legacy accessories

Power requirements

  • Operating voltage: 200 VAC to 240 VAC @ 50/60 Hz
  • Max current: 20 A @200V
  • Max power: 4000 W
  • Dissipation: 13,650 BTU/hr

Dimensions

  • Dimensions: (L x W x H): 32.0 x 24.5 x 16.5" (815 x 621 x 419mm)
  • Shipping dimensions: (L x W x H): 41.0 x 32.5 x 29.5" (1041 x 825 x 749mm)
  • Weight: 160 lb (72.5 kg) (without lens)
  • Shipping weight: 200 lb (91 kg)
Operating environment
  • Temp: 40 to 104° (5 to 40° C)
  • Humidity: 20 - 80% noncondensing

Regulatory

  • Regulatory Approvals/Markings: Directives (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE); Regulation (EC) No. 1907/2006 (REACH)
  • CAN/CSA C22.2 No. 60950-1
  • UL 60950-1
  • IEC 60950-1
  • FCC, Part 15, Subpart B, Class A
  • EN55022/CISPR22 Class A
  • EN55024 / CISPR24
  • Certifications marks (check with CDS for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC (Korea), PSE (Japan), C-Tick (Australia & New Zealand), South Africa
Limited warranty
  • Three years parts and labor (including light engine)
