Roadster S+10K-M SXGA+ 3DLP projector

Part Number: 118-023106-XX 3DLP SXGA+ 11,550 center lumens dual lamp digital projector

Product characteristics

  • SXGA+ resolution (1400 x 1050)
  • 11,500 center lumens
  • Variable contrast ratio of 2500-10000:1 using contrast aperture (full on, full off) / 650:1 ANSI for crisp, detailed images.
  • At maximum brightness (10500 ANSI lumens), the projector draws a maximum power of 1320W
  • Dual mercury lamps (350W)
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust sealed engine, filter-free design
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multi-windowing and screen processing (up to a 3x3 array)
  • Ships with a stacking frame and four input cards
  • 3D upgradable
  • Built-in portrait display capabilities

  • Description
  • Spec
  • Option
  • Download

The most compact in its class, the Christie M Series projector platform provides the high-performance and feature-rich standards expected in all Christie products. Embedded warping, blending and color matching, along with built-in portrait capabilities give you even more installation flexibility with this SXGA+ model.​



Technology

3DLP®

Resolution

1400 x 1050 SXGA+

Brightness

11,550 center lumens
10,500 ANSI lumens
10,518 ISO lumens

Contrast

Up to 10,000:1

Illumination

Dual 350W P-VIP

Lamp life

1,500 hours, up to 2,000 in eco mode

Height

10.2" (259 mm)

Width

19.7" (500 mm)

Depth

22.1" (561 mm)

Weight

55 lb (25 kg)



The Roadster S+10K-M, designed with stagers in mind offers high efficiency and low cost of ownership by drawing a maximum power of 1320W giving you full brightness while using less power.

Features

  • SXGA+ resolution (1400 x 1050)
  • 11,500 center lumens
  • Variable contrast ratio of 2500-10000:1 using contrast aperture (full on, full off) / 650:1 ANSI for crisp, detailed images.
  • At maximum brightness (10500 ANSI lumens), the projector draws a maximum power of 1320W
  • Dual mercury lamps (350W)
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust sealed engine, filter-free design
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multi-windowing and screen processing (up to a 3x3 array)
  • Ships with a stacking frame and four input cards
  • 3D upgradable
  • Built-in portrait display capabilities

All this, combined with a 3-year warranty and our industry-leading service and support, enables the M Series to provide high performance and peace of mind for all users.

  • Dual lamp: 11,550 center (10,500 ANSI, 10,518 ISO) lumens
  • Single lamp: 5,775 center (5,250 ANSI​, 5,259 ISO) lumens
Contrast
  • 2500-10,000:1 using contrast aperture (full on, full off)
  • 650:1 ANSI (typical)
Display technology and resolution
  • 3-chip 0.95" DLP­
  • SXGA+ (1400 x 1050) resolution
Lamp
  • Dual 350W PVIP
  • High power: 1500 hrs @ 350W
  • Low power: 2000 hrs @ 300W
Input signal compatibility
  • HDTV formats VGA through to QXGA (2048 x 1536)
  • Accepts all current HDTV/DTV formats
  • Multi-standard video decoder
  • Horizontal and vertical scaling, all inputs
​Standard Inputs
  • ​Twin DisplayPort Input card
  • Dual-link DVI
  • 3G SD/HD-SDI
  • Video decoder
​Optional Inputs
  • ​​Analog 5 BNC
Scan rates
  • Horizontal: 15 to 120 kHz
  • Vertical: 23.97 to 150 Hz
Pixel clock
  • 165 MHz

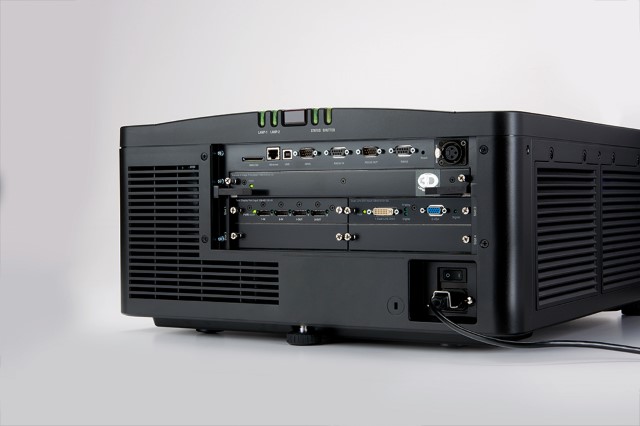

Inputs, controls and networking
  • RS232 in/out
  • RS422 in
  • Ethernet (10/100)
  • USB device
  • GPIO (RS232 9-pin male connector)

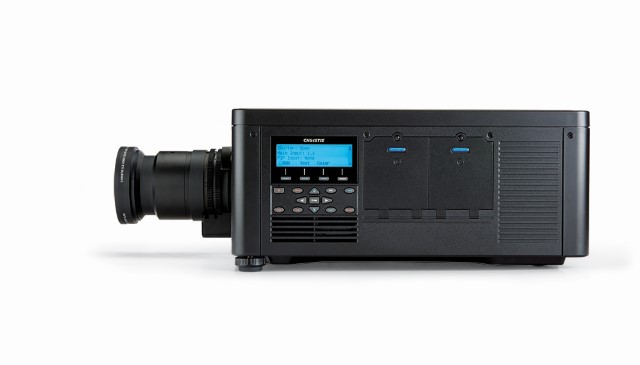

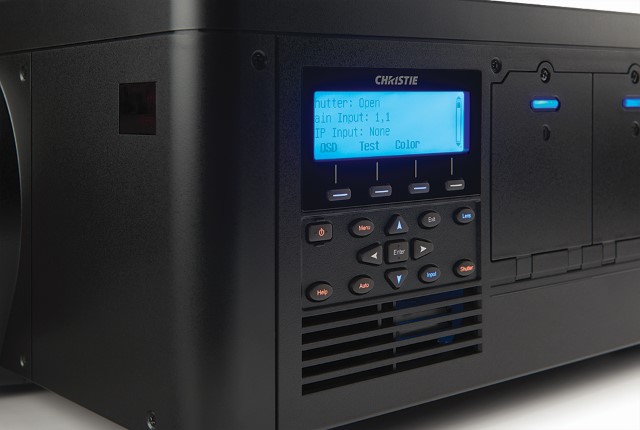

  • Built-in backlit LCD keypad
  • Remote control (with optional wired XLR connection)
Optical system
  • Dust sealed, 3-Chip DMD light engine
  • Motorized horizontal and vertical lens offset
  • Scheimpflug (tilt) adjustment
  • Built-in light shutter
  • Tool-free lens insertion system
Fixed lenses
  • ILS lens 0.73:1 SX+/0.67:1 HD*
  • ILS lens 1.2:1 SX+/1.1:1 HD
Zoom lenses
  • ILS lens 1.25-1.6:1 SX+/1.16-1.49:1 HD**
  • ILS lens 1.5-2.0:1 SX+/1.4-1.8:1 HD
  • ILS lens 2.0-2.8:1 SX+/1.8-2.6:1 HD
  • ILS lens 2.8-4.5:1 SX+/2.6-4.1:1 HD
  • ILS lens 4.5-7.3:1 SX+/4.1-6.9:1 HD
  • ILS lens 7.3-11.2:1 SX+/6.9-10.4:1 HD
Lens offsets
  • +/- 100% Vertical
  • +/- 50% Horizontal
  • (* ±23%V / ±13%H)
  • (** ±70%V / ±45%H)
Standard accessories
  • Dual-link DVI input card
  • Dual SD/HD-SDI input card
  • Video decoder
  • User manual
  • IR remote
  • Line cord
  • Stacking frame
Optional accessories
  • Coarse dust filter
  • Fog juice filter
  • Ceiling mount
  • Analog BNC input card
  • Dual-link DVI input card
  • Dual SD-HD-SDI input card
  • Video decoder
  • ​DMX512 interface card
Enhanced feature sets
  • LiteLOC™
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multi-windowing and screen processing (up to a 2x3 array)
  • Contrast a​perture
  • Menus in five languages
  • 99 channel memories
  • Auto setup
  • Digital keystone correction
  • Dust sealed engine, filter-free design
  • Motorized yellow notch filter (HD & WUXGA models only)
  • Built-in portrait display capabilities*
  • 3D upgradable

*Christie M Series stacking frame is required in portrait orientation.
Power requirements
  • 110-240 VAC 50/60 Hz operating voltage
  • 13.2 A @100V operating current
  • 1320 W power consumption
  • 4508 BTU/hr dissipation
Dimensions
  • (L x W x H): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)
  • Weight: 55 lb (25 kg)
  • Shipping weight: 87 lb (39kg)
  • Shipping dimensions - (LxWxH): 31.3 x 24.2 x 28.1" (795 x 615 x 715mm)
Operating environment
  • Temp: 40 to 104° F (5 to 40° C)
  • Humidity: 10-80% non-condensing
Regulatory approvals
  • UL/CSA/IEC 60950 (3rd edition)
  • FCC Class A, CE, CCC
  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • RoHS, WEEE
Limited warranty
  • 3 years parts and labor (including light engine)
