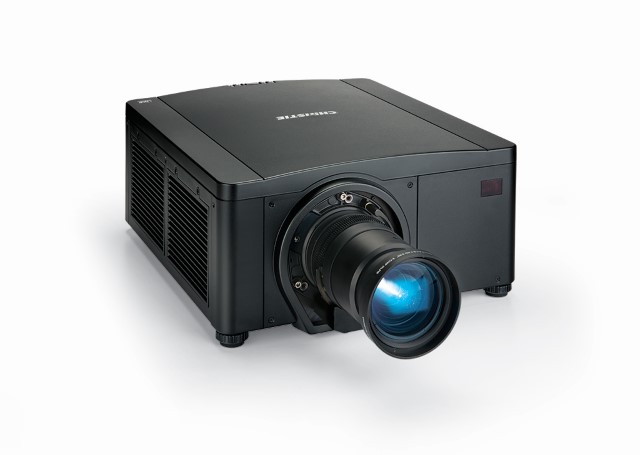

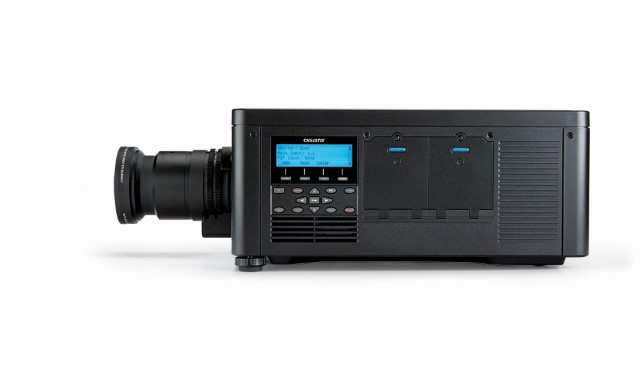

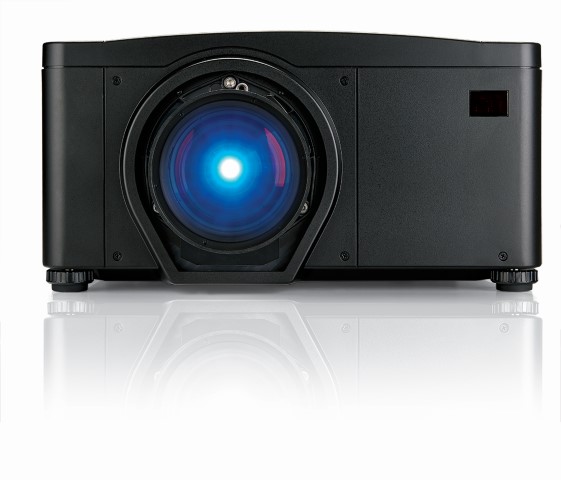

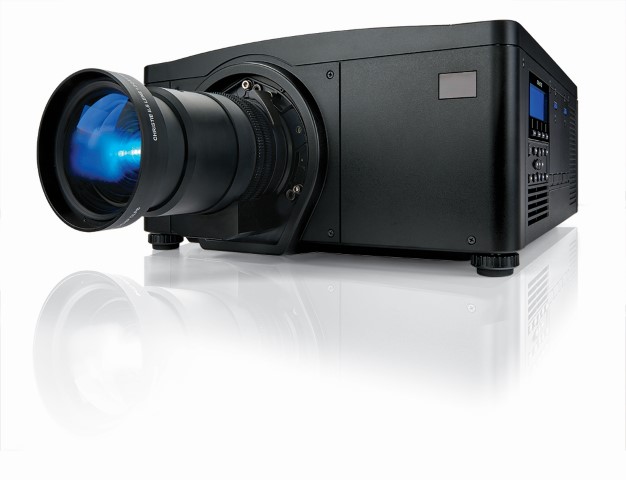

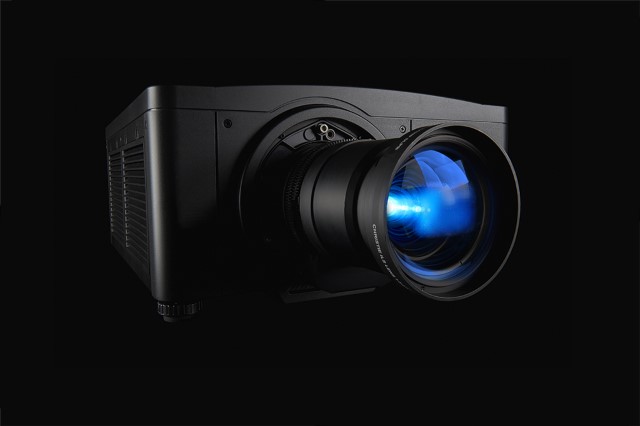

Christie Roadster S+14K-M SXGA+ 3DLP projector

Part Number: 118-020114-XX 3DLP SXGA+ 14,000 center lumen, dual-lamp, digital projector

Product characteristics

  • SXGA+ resolution (1400 x 1050)
  • 14,000 center lumens
  • Variable contrast ratio of 2,500:1 (full on/full off) / 650:1 ANSI for crisp, detailed images
  • At maximum brightness this projector draws 1500W at 110V
  • Smallest chassis in its class
  • Dual mercury lamps (450W)
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust-sealed engine, filter-free design
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multiwindowing and screen processing (up to a 3x3 array)
  • 3D capable model available in the Mirage Series
  • 3D upgradable
  • AutoDesk® Revit® model
  • 24/7 operation

  • Description
  • Spec
  • Option
  • Download

The Christie® M Series projector platform provides the high-performance and feature-rich standards expected in all Christie products. The most compact in its class, this projector platform has embedded warping , blending and color matching capabilities that give you even more installation flexibility. The Roadster S+14K-M also ships equipped with more input cards than the other M Series models, and a stacking frame.



Technology

3DLP®

Resolution

1400 x 1050 SXGA+

Brightness

14,000 center lumens
12,500 ANSI lumens
13,750 ISO lumens

Contrast

Up to 2,500:1

Illumination

Dual 450W NSH

Lamp life

1,750 hours, up to 2,000 in eco mode

Height

10.2" (259 mm)

Width

19.7" (500 mm)

Length

22.1" (561 mm)

Weight

55 lbs (25 kg)



The Christie Roadster S+14K-M, offers high efficiency and low cost of ownership. It draws a maximum power of 1500W (at 110V), giving you full brightness with two lamps instead of four.

Features

  • SXGA+ resolution (1400 x 1050)
  • 14,000 center lumens
  • Variable contrast ratio of 2,500:1 (full on/full off) / 650:1 ANSI for crisp, detailed images
  • At maximum brightness this projector draws 1500W at 110V
  • Smallest chassis in its class
  • Dual mercury lamps (450W)
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust-sealed engine, filter-free design
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multiwindowing and screen processing (up to a 3x3 array)
  • 3D capable model available in the Mirage Series
  • 3D upgradable
  • AutoDesk® Revit® model
  • 24/7 operation

Christie’s 3DLP projectors are 2D and 3D capable. The Christie Roadster S+14K-M is available as a 3D display solution  or it can be upgraded from its existing 2D display technology to include 3D capabilities. Christie is the first to offer an upgrade path for its 3DLP projectors with the Mirage advanced 3D functionality.

All this, combined with a 3-year warranty and our industry-leading service and support, means the M Series gives you high performance and peace of mind.

Brightness
  • Dual lamp: 14,000 center (12,500 ANSI, 13,750 ISO) lumens
  • Single lamp: 7,000 center (6,250 ANSI, 6,875 ISO) lumens
Contrast
  • 2,500:1 (full on/off) 650:1 ANSI (typical)
Uniformity
  • 90% brightness uniformity
Display type
  • 3DLP 0.95"
Resolution
  • SXGA+ (1400 x 1050)
Lamp type
  • Dual 450W NSH
Lamp life
  • High power: 1,750 hrs @ 450W
  • Low power: 2,000 hrs @ 360W

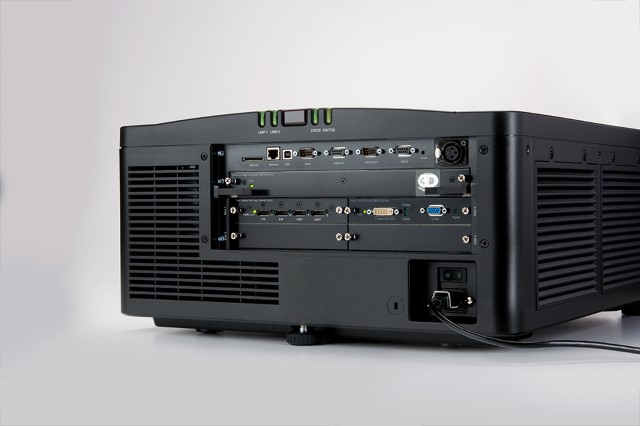

Standard inputs
  • Twin DisplayPort input card
  • Dual-link DVI
  • 3G SD/HD-SDI
  • Video decoder
Optional inputs
  • Analog (5 BNC)
  • ​Twin HDMI
Input signals
  • HDTV formats VGA through to QXGA (2048 x 1536)
  • Accepts all current HDTV/DTV formats
  • Multi-standard video decoder
  • Horizontal and vertical scaling, all inputs
Pixel clock
  • 165 MHz
Scan rates
  • Horizontal: 15 to 120 kHz
  • Vertical: 23.97 to 150 Hz
Inputs, control & networking
  • RS232 in/out
  • RS422 in
  • Ethernet (10/100)
  • USB device
  • GPIO (RS232 9-pin male connector)

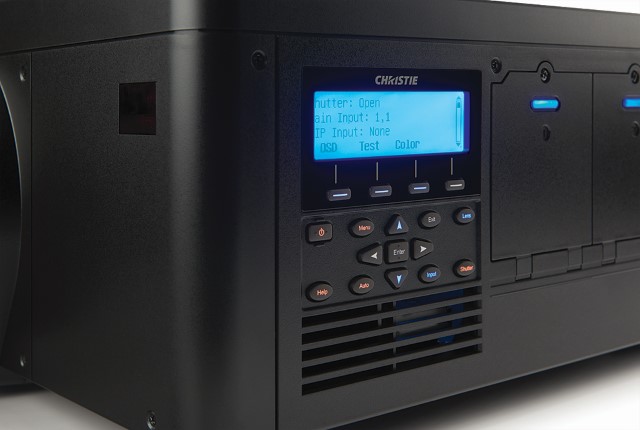

  • Built-in backlit, LCD keypad
  • Remote control (with optional wired XLR connection)
Optical systems
  • Dust sealed, 3-chip DMD light engine
  • Motorized horizontal and vertical lens offset
  • Scheimpflug (tilt) adjustment
  • Built-in light shutter
  • Tool-free lens insertion system
Fixed lenses
  • ILS lens 0.73:1 SX+/0.67:1 HD*
  • ILS lens 1.2:1 SX+/1.1:1 HD
Zoom lenses
  • ILS lens 1.25-1.6:1 SX+/1.16-1.49:1 HD**
  • ILS lens 1.5-2.0:1 SX+/1.4-1.8:1 HD
  • ILS lens 2.0-2.8:1 SX+/1.8-2.6:1 HD
  • ILS lens 2.8-4.5:1 SX+/2.6-4.1:1 HD
  • ILS lens 4.5-7.3:1 SX+/4.1-6.9:1 HD
  • ILS lens 7.5-11.2:1 SX+/6.9-10.4:1 HD
Offsets
  • ±100% Vertical
  • ±50% Horizontal
  • (* ±23%V / ±13%H)
  • (** ±73%V / ±45%H)
Standard accessories
  • Stacking frame
  • IR remote
  • Line cord
Optional accessories
  • Coarse dust filter
  • Fog juice filter
  • Ceiling mount
  • Ceiling mount extension
  • ILS lens adapter kit
  • Stacking frame
  • Christie AutoStack™
  • DMX512 interface card
Enhanced feature sets
  • LiteLOC™
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset for all lenses
  • Auto setup
  • Digital keystone correction
  • Menus in five languages
  • 99 channel memories
  • Multi-windowing and processing (up to a 3 x 3 array)
  • Black level blending
  • 24/7 operation
  • 3D upgradable
Operating voltage
  • 110-240 VAC 50/60 Hz
Operating current
  • 15 A @ 100V AC
Power
  • 1500W
Dissipation
  • 5118 BTU/hr
Size
  • (LxWxH): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)
Shipping dimensions
  • (LxWxH): 29.0 x 27.0 x 24.6" (737 x 689 x 625mm)
Weight
  • 55 lbs (25kg)
Shipping weight
  • 80 lbs (36kg)
Operating environment
  • Temperature: 40 to 104° F (5 to 40° C)
  • Humidity: 20-80% non-condensing
Regulatory approvals
  • Directives (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE); Regulation (EC) No. 1907/2006 (REACH)
  • CAN/CSA C22.2 No. 60950-1
  • UL 60950-1
  • IEC 60950-1
  • FCC, Part 15, Subpart B, Class A
  • EN55022/CISPR22 Class A
  • EN55024 / CISPR24
  • Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC (Korea), PSE (Japan), C-Tick (Australia & New Zealand), South Africa
Limited warranty
  • Three years parts and labor (including light engine)
  • Contact an authorized Christie representative for full details of our limited warranty
