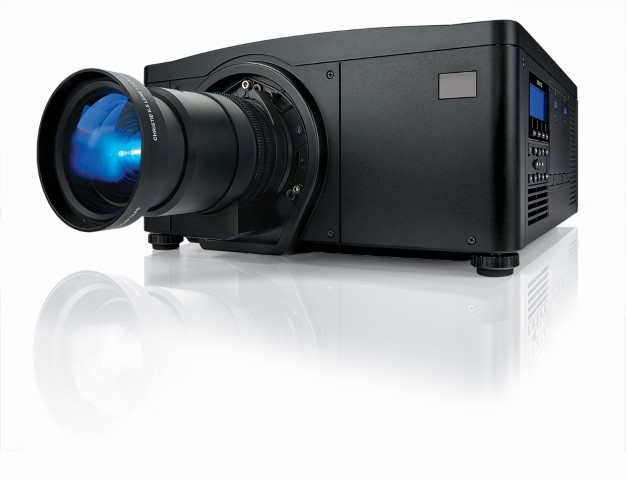

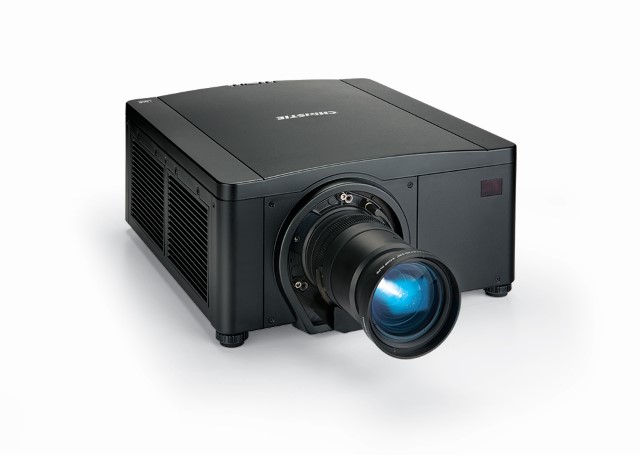

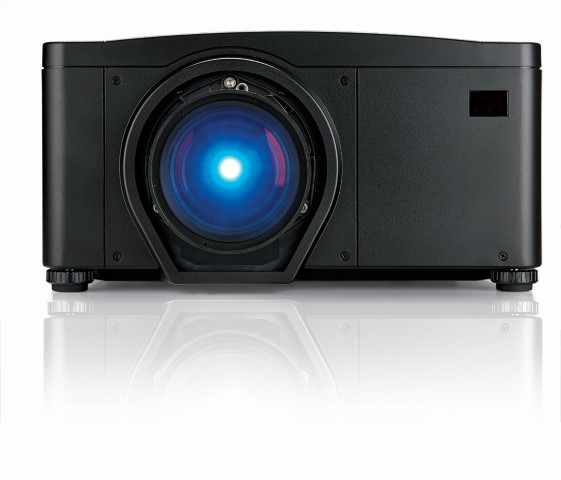

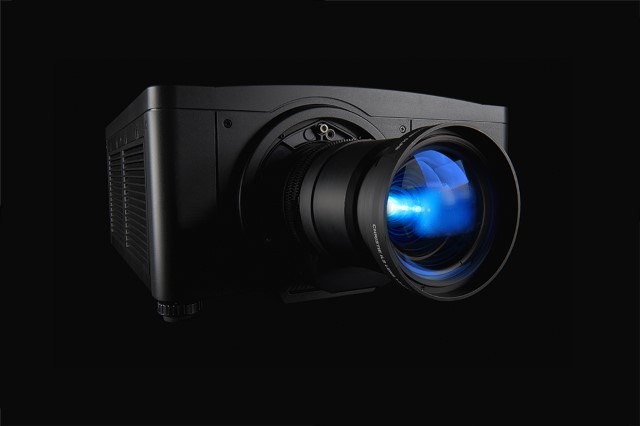

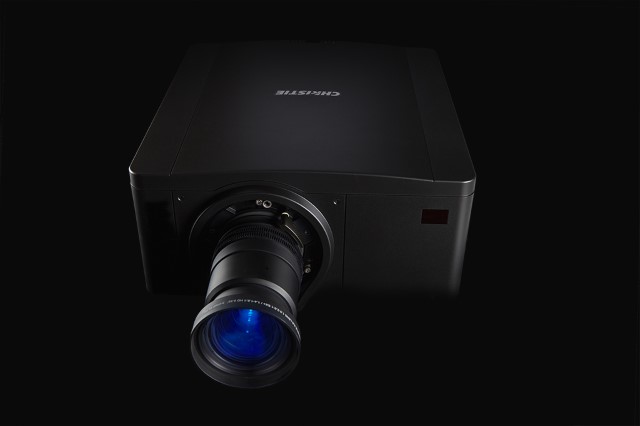

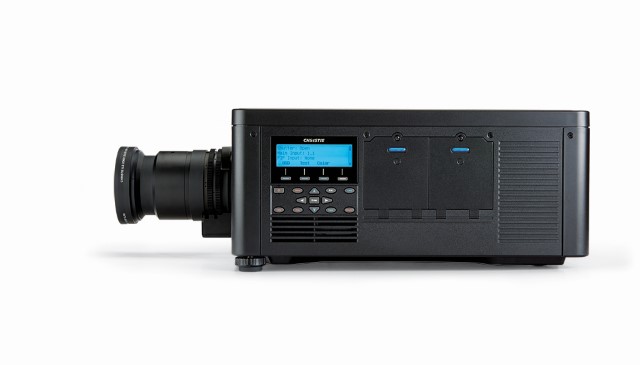

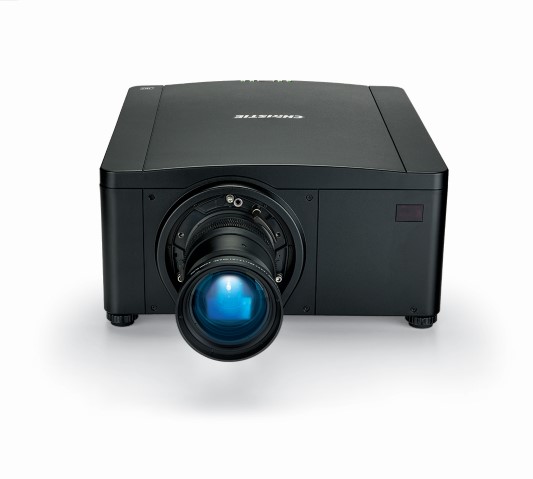

Roadster HD10K-M 1080 HD 3DLP Projector

Part Number: 118-021104-XX 3DLP 1080 HD 11,000 center lumen dual lamp digital projector

Product characteristics

  • True HD native resolution (1920 x 1080)
  • 11,000 center lumens
  • Variable contrast ratio of 2500-10000:1 contrast aperture (Full on, Full off) / 650:1 ANSI for crisp, detailed images.
  • At maximum brightness this projector draws a maximum power of 1320W
  • Smallest chassis in its class
  • Dual mercury lamps (350W)
  • Two high definition input channels that allow 4:4:4 HD signals
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust sealed engine, filter-free design
  • Motorized yellow notch filter
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multi-windowing and screen processing (up to a 3x3 array)
  • 3D upgradable
  • Built-in portrait display capabilities

  • Description
  • Spec
  • Option
  • Download

The most compact in its class, the Christie M Series projector platform provides the high-performance and feature-rich standards expected in all Christie products. Embedded warping, blending and color matching, along with built-in portrait capabilities give you even more installation flexibility with this HD model.



Technology

3DLP®

Resolution

1920 x 1080 HD

Brightness

11,000 center lumens
10,000 ANSI lumens
10,625 ISO lumens

Contrast

Up to 10,000:1

Illumination

Dual 350W P-VIP

Lamp life

1,500 hours, up to 2,000 in eco mode

Height

10.2" (259 mm)

Width

19.7" (500 mm)

Depth

22.1" (561 mm)

Weight

55 lbs (25 kg)



The Roadster HD10K-M, at 11,000 center lumens (dual lamps, 350W), offers high efficiency and low cost of ownership by drawing a maximum power of 1320W giving you full brightness while using less power.

Features

  • True HD native resolution (1920 x 1080)
  • 11,000 center lumens
  • Variable contrast ratio of 2500-10000:1 contrast aperture (Full on, Full off) / 650:1 ANSI for crisp, detailed images.
  • At maximum brightness this projector draws a maximum power of 1320W
  • Smallest chassis in its class
  • Dual mercury lamps (350W)
  • Two high definition input channels that allow 4:4:4 HD signals
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust sealed engine, filter-free design
  • Motorized yellow notch filter
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multi-windowing and screen processing (up to a 3x3 array)
  • 3D upgradable
  • Built-in portrait display capabilities

All this, combined with a 3-year warranty and our industry-leading service and support, enables the M Series to provide high performance and peace of mind for all users.

  • Dual lamp: 11,000 center (10,000 ANSI, 10,625 ISO) lumens
  • Single lamp: 5,775 center (5,250 ANSI, 5,312 ISO) lumens
Contrast
  • 2500-10,000:1 using dynamic iris (full on, full off)
  • 650:1 ANSI (typical)
Display technology and resolution
  • 0.95" 3DLP­
  • HD (1920 x 1080) resolution
Lamp
  • Dual 350W PVIP
  • High power: 1500 hrs @ 350W
  • Low power: 2000 hrs @ 300W
Input signal compatibility
  • HDTV formats VGA through to QXGA (2048 x 1536)
  • Accepts all current HDTV/DTV formats
  • Multi-standard video decoder
  • Horizontal and vertical scaling, all inputs
​Standard inputs
  • Twin DisplayPort input card
  • Dual-link DVI
  • 3G SD/HD-SDI
  • Video decoder
Scan rates
  • Horizontal: 15 to 120 kHz
  • Vertical: 23.97 to 150 Hz
Pixel clock
  • 165 MHz

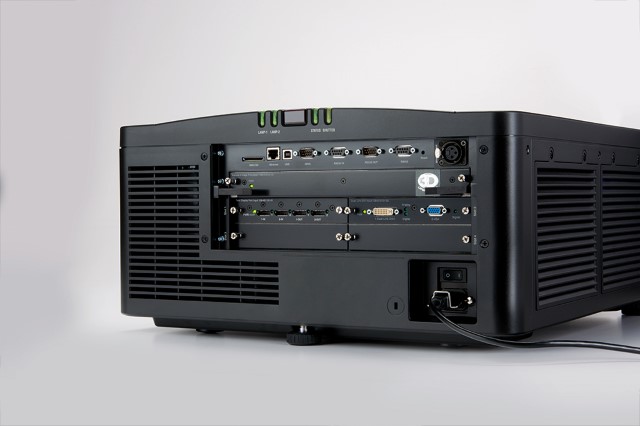

Inputs, controls and networking
  • RS232 in/out
  • RS422 in
  • Ethernet (10/100)
  • USB device
  • GPIO (RS232 9-pin male connector)

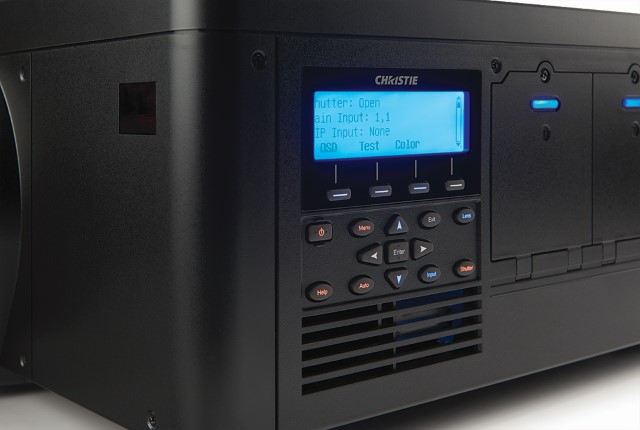

  • Built-in backlit LCD keypad
  • Remote control (with optional wired XLR connection)
Optical system
  • Dust sealed, 3-Chip DMD light engine
  • Motorized horizontal and vertical lens offset
  • Scheimpflug (tilt) adjustment
  • Built-in light shutter
  • Tool-free lens insertion system
Fixed lenses
  • ILS lens 0.73:1 SX+/0.67:1 HD*
  • ILS lens 1.2:1 SX+/1.1:1 HD
Zoom lenses
  • ILS lens 1.25-1.6:1 SX+/1.16-1.49:1 HD**
  • ILS lens 1.5-2.0:1 SX+/1.4-1.8:1 HD
  • ILS lens 2.0-2.8:1 SX+/1.8-2.6:1 HD
  • ILS lens 2.8-4.5:1 SX+/2.6-4.1:1 HD
  • ILS lens 4.5-7.3:1 SX+/4.1-6.9:1 HD
  • ILS lens 7.3-11.2:1 SX+/6.9-10.4:1 HD
Lens offsets
  • +/- 120% Vertical
  • +/- 54% Horizontal
  • (* ±35%V / ±12%H)
  • (** ±100%V / ±40%H)
Standard accessories
  • ​Dual-link DVI input card
  • Dual SD/HD-SDI input card
  • Video decoder
  • User manual
  • IR remote
  • Line cord
  • Stacking frame
Optional accessories
  • Coarse dust filter
  • Fog juice filter
  • Ceiling mount
  • Analog BNC input card
  • Dual-link DVI input card
  • Dual DS/HD-SDI input card
  • Video decoder
  • Twin HDMI™ input card
  • DMX512 interface card
Enhanced feature sets
  • LiteLOC™
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multi-windowing and screen processing (up to a 2x3 array)
  • Contrast ​aperture
  • Menus in five languages
  • 99 channel memories
  • Auto setup
  • Digital keystone correction
  • Dust sealed engine, filter-free design
  • Motorized yellow notch filter (HD & WUXGA models only)
  • Built-in portrait display capabilities*
  • 3D upgradable

*Christie M Series stacking frame is required in portrait orientation.
Power requirements
  • 110-240 VAC 50/60 Hz operating voltage
  • 13.2 A @100V operating current
  • 1320 W power consumption
  • 4508 BTU/hr dissipation
Dimensions
  • (L x W x H): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)
  • Weight: 55 lbs (25 kg)
  • Shipping weight: 87 lbs (39kg)
  • Shipping dimensions - (LxWxH): 31.3 x 24.2 x 28.1" (795 x 615 x 715mm)
Operating environment
  • Temp: 40 to 104° F (5 to 40° C)
  • Humidity: 10-80% non-condensing
Regulatory approvals
  • UL/CSA/IEC 60950 (3rd edition)
  • FCC Class A, CE, CCC
  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • RoHS, WEEE
Limited warranty
  • Three years parts and labor (including light engine)
  • Data does not exist.
