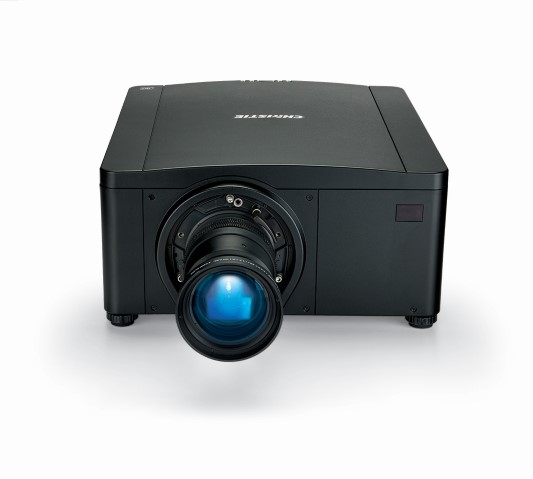

Christie WU12K-M WUXGA 3DLP Projector

Part Number: 118-015107-XX 3DLP WUXGA 11,500 center lumen dual lamp digital projector

Product characteristics

  • WUXGA resolution (1920 x 1200)
  • 11,500 center lumens
  • Variable contrast ratio of 2500-10,000:1 using contrast aperture (full on, full off) / 650:1 ANSI for crisp, detailed images
  • At maximum brightness (10,500 ANSI lumens), the projector draws a maximum power of 1320W
  • Smallest chassis in its class
  • Dual mercury lamps (350W)
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust sealed engine, filter-free design
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multi-windowing and screen processing (up to a 3x3 array)
  • Motorized yellow notch filter
  • 3D capable model available in Mirage Series
  • 3D upgradable
  • AutoDesk® Revit® model
  • Built-in portrait display capabilities

  • Description
  • Spec
  • Option
  • Download

The most compact in its class, this award-winning, dual mercury lamp DLP​® projector provides the high-performance and feature-rich standards you expect in all Christie products. Embedded warping, blending and color matching, along with built-in portrait capabilities give you even more installation flexibility with this WUXGA model.



Technology

3DLP

Resolution

1920 x 1200 WUXGA

Brightness

11,500 center lumens
10,500 ANSI lumens
11,812 ISO lumens

Contrast

Up to 10,000:1

Illumination

Dual 350W P-VIP

Lamp life

1,500 hours, up to 2,000 in eco mode

Height

10.2" (259 mm)

Width

19.7" (500 mm)

Depth

22.1" (561 mm)

Weight

55 lbs (25 kg)



The Christie WU12K-M, at 11,500 center lumens (dual, mercury lamps, 350W), offers high efficiency and low cost of ownership by drawing a maximum power of 1320W. It also employs thermal feedback systems to:

  • Adjust the number of lamps and power level used
  • Control the fan speed to cool the system
  • Shut down (automatically) when the projector does not receive a signal

Features

  • WUXGA resolution (1920 x 1200)
  • 11,500 center lumens
  • Variable contrast ratio of 2500-10,000:1 using contrast aperture (full on, full off) / 650:1 ANSI for crisp, detailed images
  • At maximum brightness (10,500 ANSI lumens), the projector draws a maximum power of 1320W
  • Smallest chassis in its class
  • Dual mercury lamps (350W)
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Dust sealed engine, filter-free design
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Multi-windowing and screen processing (up to a 3x3 array)
  • Motorized yellow notch filter
  • 3D capable model available in Mirage Series
  • 3D upgradable
  • AutoDesk® Revit® model
  • Built-in portrait display capabilities

Whether the application is education, entertainment, gaming, home cinema or live events – Christie’s 3DLP projectors are 2D and 3D capable. The Christie WU12K-M is available as a 3D display solution or it can be upgraded from its existing 2D display technology to include 3D capabilities. Christie is the first to offer an upgrade path for its 3​DLP projectors to equip them with the Mirage advanced 3D functionality.

All this, combined with a 3-year warranty and our industry-leading service and support, enables the M Series to provide high performance and peace of mind for all users.

Brightness
  • Dual lamp: 11,500 center (10,500 ANSI, 11,812​ ISO) lumens
  • Single lamp: 5,775 center (5,250 ANSI, 5,312 ISO​) lumens
Contrast
  • 2500-10,000:1 (full on/off) 650:1 ANSI (typical)
Uniformity
  • 90% brightness uniformity
Display type
  • 0.96" 3DLP
Resolution
  • WUXGA (1920 x 1200)
Lamp type
  • Dual 350W P-VIP
Lamp life
  • High power: 1500 hrs @ 350W
  • Low power: 2000 hrs @ 300W
Standard inputs
  • Twin DisplayPort input card​
  • Dual-link DVI
Optional inputs
  • Analog BNC
  • Dual-link DVI
  • Dual SD/HD-SDI
  • Video decoder
  • Twin HDMI
Input signals
  • HDTV formats VGA through to QXGA (2048 x 1536)
  • Accepts all current HDTV/DTV formats
  • Multi-standard video decoder​
  • Horizontal and vertical scaling, all inputs
Pixel clock
  • 165 MHz
Scan rates
  • Horizontal: 15 to 120 kHz
  • Vertical: 23.97 to 150 Hz

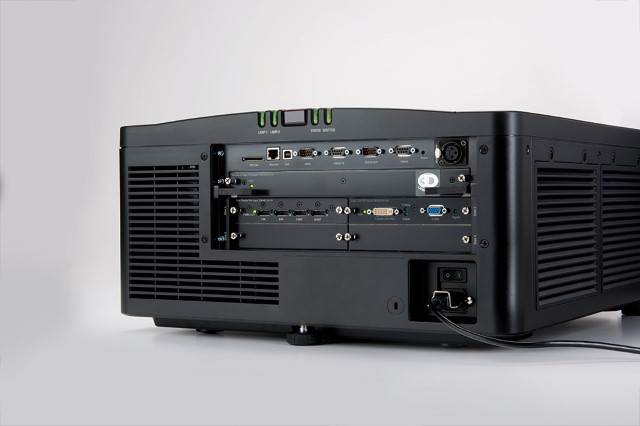

Inputs, control & networking
  • RS232 in/out
  • RS422 in
  • Ethernet (10/100)
  • USB device
  • GPIO (RS232 9-pin male connector)

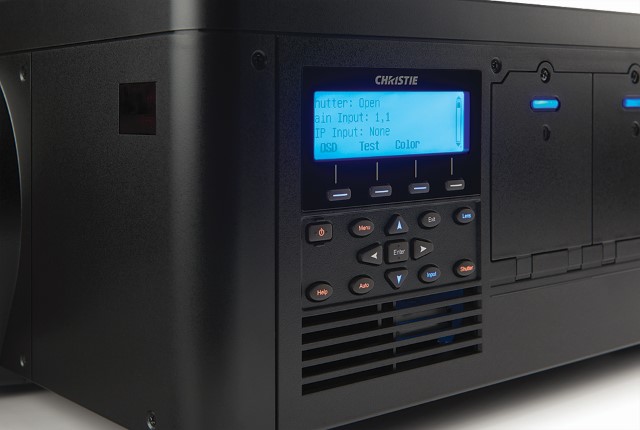

  • Built-in backlit LCD keypad
  • Remote control (with optional wired XLR connection)
Optical systems
  • Dust sealed, 3-chip DMD light engine
  • Motorized horizontal and vertical lens offset
  • Scheimpflug (tilt) adjustment
  • Built-in light shutter
  • Tool-free lens insertion system
Fixed lenses
  • ILS lens 0.73:1 SX+/0.67:1 HD*
  • ILS lens 1.2:1 SX+/1.1:1 HD
Zoom lenses
  • ILS lens 1.25-1.6:1 SX+/1.16-1.49:1 HD**
  • ILS lens 1.5-2.0:1 SX+/1.4-1.8:1 HD
  • ILS lens 2.0-2.8:1 SX+/1.8-2.6:1 HD
  • ILS lens 2.8-4.5:1 SX+/2.6-4.1:1 HD
  • ILS lens 4.5-7.3:1 SX+/4.1-6.9:1 HD
  • ILS lens 7.3-11.2:1 SX+/6.9-10.4:1 HD
Offsets
  • ±112% Vertical
  • ±54% Horizontal
  • (* ±22%V / ±6%H)
  • (** ±82%V / ±38%H)
Standard accessories
  • User manual
  • IR remote
  • Line cord
Optional accessories
  • Coarse dust filter
  • Fog juice filter
  • Ceiling mount
  • Ceiling mount extension
  • ILS lens adapter kit
  • Stacking frame
  • Christie AutoStack™
  • DMX512 interface card
Enhanced feature sets
  • LiteLOC™
  • Comprehensive Color Adjustment (CCA™)
  • Embedded Christie Twist™ image warping and edge-blending
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset for all lenses
  • Auto setup
  • Digital keystone correction
  • Dynamic iris
  • Menus in five languages
  • 99 channel memories
  • Multi-windowing and processing (up to a 3 x 3 array)
  • Motorized yellow notch filter (HD & WUXGA models only)
  • Black level blending
  • Built-in portrait display capabilities*
  • 3D upgradable

*Christie M Series stacking frame is required in portrait orientation.
Operating voltage
  • 110-240 VAC 50/60 Hz
Operating current
  • 13.2 A @ 100 VAC
Power
  • 1320W
Dissipation
  • 4508 BTU/hr
Size
  • (LxWxH): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)
Shipping dimensions
  • (LxWxH): 29.0 x 27.0 x 24.6" (737 x 689 x 625mm)
Weight
  • 55 lbs (25kg) (without lens)
Shipping weight
  • 87 lbs (39kg)
Operating environment
  • Temperature: 40 to 104° F (5 to 40° C)
  • Humidity: 10-80% non-condensing
Regulatory approvals
  • UL/CSA/IEC 60,950 (3rd edition)
  • FCC Class A, CE, CCC
  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • RoHS, WEEE
Limited warranty
  • Three years parts and labor (including light engine)
  • Contact an authorized Christie representative for full details of our limited warranty
