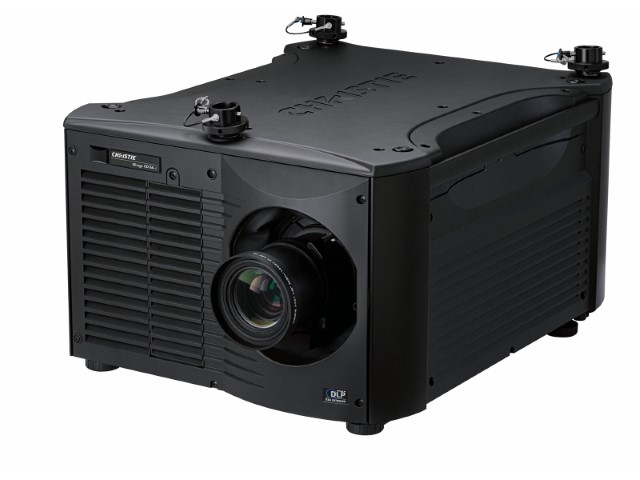

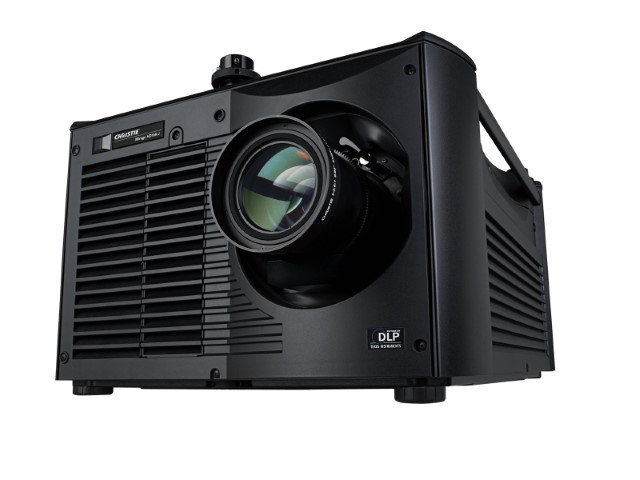

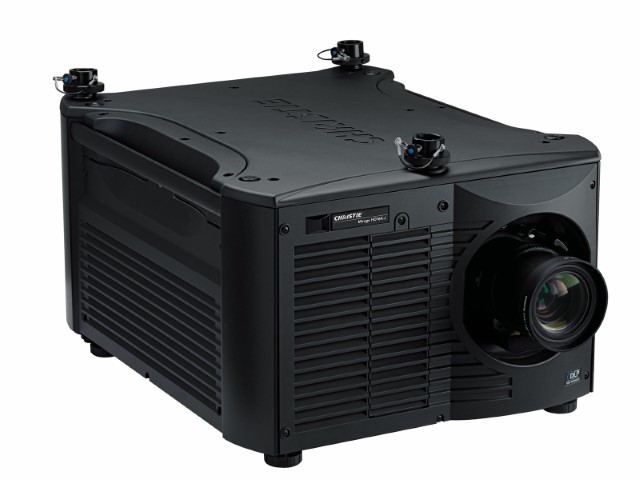

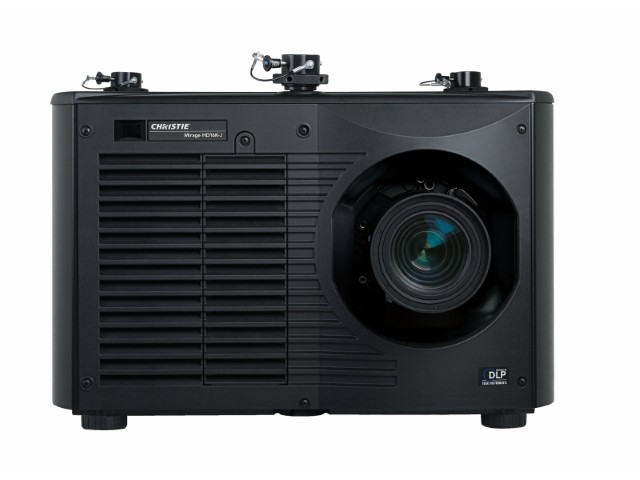

Christie Mirage HD16K-J 3D 3DLP projector

Part Number: 132-014128-XX 3D HD 3DLP 14,000 lumen Xenon-based digital projector

Product characteristics

  • HD resolution (1920 x 1080)
  • 14,000 ANSI (15,400 center) lumens
  • 2.4kW Xenon Bubble pre-aligned lamp module for highest image quality
  • Up to a full 120Hz native frame rate
  • Two standard full 330MHz Dual-link DVI-D input cards
  • Variable contrast ratio using electronically an adjustable iris for crisp, detailed images – 1600-2000:1 (full on, full off) / 650:1 ANSI
  • Smallest chassis in its class
  • CT lens mount (optional)
  • Yellow notch filter (optional)
  • Embedded Christie Twist™ image warping and edge blending
  • Dust-sealed engine
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Liquid cooling allows for operating temperatures up to 40 to 104° F (5 to 40° C)
  • Set-up lights help users see menu displays in low light environments

  • Description
  • Spec
  • Option
  • Download

The Christie® Mirage HD16K-J 3DLP® projector offers exceptional image quality and detail in a compact size. With 14,000 ANSI (15,400 center) lumens for pure presentation power and unsurpassed color accuracy and adjustability, the Christie Mirage J Series platform offers the smallest, high-performance 3DLP stereoscopic products on the market. The Christie Mirage J Series delivers visually stunning 3D for home theater and entertainment, museums and education, scientific research, manufacturing, oil and gas exploration and anything else in between.



Technology

3DLP

Resolution

1920 x 1080 HD

Brightness

14,000 ANSI lumens

Contrast

1600-2000:1 full field | 650:1 ANSI

Illumination

2.4kW Xenon Bubble pre-aligned lamp module

Lamp Life

750 hours typical lamp life

Height

16.5" (419mm)

Width

24.5" (621mm)

Depth

32" (815mm)

Weight

160lbs (72.5kg) (without lens)



The Christie Mirage J Series delivers:

  • Innovative technology
  • Superior image quality – color and stability
  • Full scalability – with resolution for large 1:1 displays
  • High performance for native source data at 120Hz – pixel-for-pixel source matching
  • An overall low cost of ownership and low cost of operation

Powered by dual-image processing, the Christie Mirage J Series displays full resolution at a native frame rate up to 120Hz. Two standard Dual-link DVI input cards support 330MHz bandwidth for full resolution. The Christie Mirage J series boasts dual-input 3D.

The Christie Mirage HD16K-J delivers HD resolution, high brightness, the highest contrast and most natural, accurate, stable color for advanced 3D performance with reduced overall operation costs. The compact Mirage J Series is easy to set up and configure, yet performs powerfully and flexibly.

With the Christie Mirage HD16K-J DLP projector you’ll have peace of mind, thanks to its:

  • high reliability,
  • best price performance on the market,
  • low cost of ownership,
  • industry-leading warranties,
  • and access to Christi​e’s renowned customer service.

This projector couples the benefits of Xenon illumination – for the most natural color accuracy and stability - with the next level of technology, performance and flexibility. The additional standard features, an expanded lens suite and world-renowned Christie warranties, service and support, ensure the Christie Mirage HD16K-J provides high performance and more lumens per watt in the smallest chassis in its class.

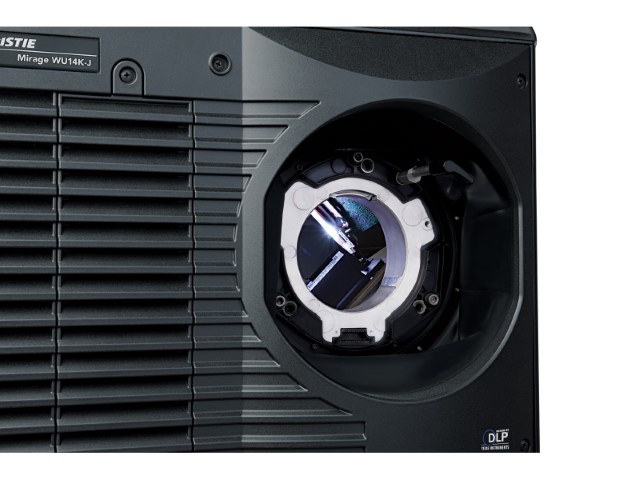

With the Christie J Series you can customize your model according to your needs. Each projector ships standard with the ILS lens mount, but if you prefer to use your existing inventory of CT lenses or require a yellow notch filter (YNF), you can choose, at the time of purchase, the following options:

Christie Mirage HD16K-J

ILS lens mount (ships standard)

ILS lens mount + YNF*

CT lens mount*

CT lens mount + YNF*

Part number

132-014128-XX

132-014320-XX

132-014229-XX

132-014421-XX


*Please allow six weeks for delivery.

Features

  • HD resolution (1920 x 1080)
  • 14,000 ANSI (15,400 center) lumens
  • 2.4kW Xenon Bubble pre-aligned lamp module for highest image quality
  • Up to a full 120Hz native frame rate
  • Two standard full 330MHz Dual-link DVI-D input cards
  • Variable contrast ratio using electronically an adjustable iris for crisp, detailed images – 1600-2000:1 (full on, full off) / 650:1 ANSI
  • Smallest chassis in its class
  • CT lens mount (optional)
  • Yellow notch filter (optional)
  • Embedded Christie Twist™ image warping and edge blending
  • Dust-sealed engine
  • Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
  • Liquid cooling allows for operating temperatures up to 40 to 104° F (5 to 40° C)
  • Set-up lights help users see menu displays in low light environments.

  • Brightness: 14,000 ANSI lumens, 15,400 center lumens
  • Contrast: 1600-2000:1 full field | 650:1 ANSI
  • Uniformity: 80% brightness uniformity

Display
  • Type: 3DLP ​0.95” DMD
  • Native resolution: HD (1920 x 1080)
  • Frame delay: As low as one frame

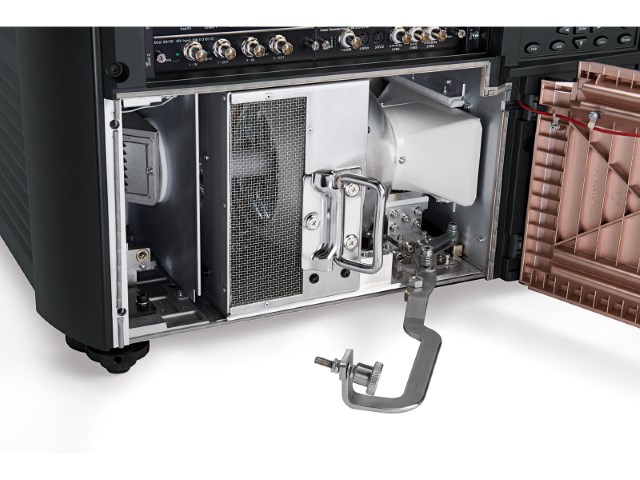

Lamp
  • Type: 2.4kW Xenon Bubble pre-aligned lamp module
  • Life: 750 hours typical lamp life

Input

Standard

  • Slot 1-2 populated, standard: two Dual Link DVI-D (330 MHz) input cards (each has VGA (165 MHz) for 3D or dual input 3D compatibility) with HDMI 1.3 receiver
  • Slot 3-4 unpopulated

Optional

  • Analog
  • Dual link DVI
  • SD/HD-SDI
  • Video Decoder
  • Twin HDMI

Signals

  • HDTV formats VGA through to QXGA (2048 x 1536)
  • Accepts all current 2D HDTV/DTV formats (optional input module may be required)
  • HDMI 1.3 receiver supports mandatory HDMI 1.4a 3D modes of operation plus 24-144Hz triple flash 3D mode
  • Multi-standard video decoder
  • Horizontal and vertical scaling, all inputs

Pixel clock

  • 330 MHz

Scan rates

  • Horizontal: 15-120kHz
  • Vertical: 23.97-150Hz (frame lock maximum 120Hz)
  • 48-60Hz frame doubled or dual input 3D
  • 96-120Hz frame rate up to 1920 x 1200
  • 24-144Hz triple flash 3D

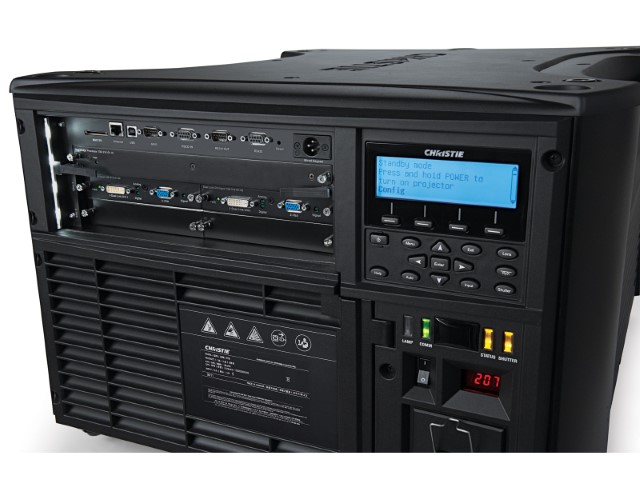

Inputs/outputs, control and networking
  • RS232 In/Out
  • RS422 In
  • Ethernet (10/100)
  • GPIO (RS232 9 Pin male connector)
  • Built-in, backlit LCD keypad
  • Remote control (with optional wired XLR connection)
Optical system
  • Dust-sealed 3-chip DMD light engine
  • Motorized horizontal and vertical lens offset
  • Scheimpflug/Boresight (tilt) adjustment​
  • Built-in light shutter
  • Tool-free lens insertion system

Lens options

Fixed

  • 0.67:1 HD/WU ILS Lens*
  • 1.1:1 HD/WU ILS Lens

Zoom

  • 1.16-1.49:1 HD/WU ILS Lens**
  • 1.4-1.8:1 HD/WU ILS Lens
  • 1.8-2.6 HD/WU ILS Lens
  • 2.6-4.1:1 HD/WU ILS Lens
  • 4.1-6.9:1 HD/WU ILS Lens
  • 6.9-10.4:1 HD/WU ILS Lens

Offsets

  • +/- 120% Vertical
  • +/- 54% Horizontal
  • (* +/-35%V   +/- 12%H)
  • (** +/-102%V   +/-40%H)

Accessories

Standard

  • IR remote
  • Power cord
  • GPIO 3D sync card

Optional

  • 2.4kW Xenon lamp bare bulb kit
  • Bulb alignment tool
  • ILS lens adapter kit
  • Fog filters
  • Remote IR sensor
  • Active 3D glasses
  • Active stereoscopic emitter
  • DMX512 interface card
  • 3D passive glasses
  • Passive stereoscopic modulator

Enhanced feature sets
  • Embedded Christie Twist™
  • Intelligent Lens System (ILS™)
  • Advanced block artifact reduction
  • ChristieNET™ web interface
  • User-friendly, intuitive LCD keypad
  • Advanced Loop-Thru twin HDMI card
  • Lamp memory module
  • User replaceable lamps
  • Advanced, 10-bit processing
  • Automatic shut off
  • Dust-sealed light engine
  • SNMP (simple network management protocol)
  • DHCP (dynamic host configuration protocol)
  • Liquid cooling
  • Set-up lights
  • Compatibility with many legacy accessories

Power requirements
  • Operating voltage: 200-240 VAC @ 50/60 Hz
  • Max current: 16A @200V
  • Max power: 3200W
  • Dissipation: 10,925 BTU/hr

Dimensions
  • Dimensions: (LxWxH): 32 x 24.5 x 16.5" (815 x 621 x 419mm)
  • Shipping dimensions: (LxWxH): 41 x 32.5 x 29.5" (1041 x 825 x 749mm)
  • Weight: 160lbs (72.5kg) (without lens)
  • Shipping weight: 200lbs (91kg)
Operating environment
  • Temp: 40 to 104° (5 to 40° C)
  • Humidity: 20 - 80% noncondensing

Regulatory
  • Directives (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE); Regulation (EC) No. 1907/2006 (REACH)
  • CAN/CSA C22.2 No. 60950-1
  • UL 60950-1
  • IEC 60950-1
  • FCC, Part 15, Subpart B, Class A
  • EN55022/CISPR22 Class A
  • EN55024/CISPR24
  • Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC (Korea), PSE (Japan), C-Tick (Australia & New Zealand), South Africa
Limited warranty
  • Three years parts and labor (including light engine)
  • Contact an authorized Christie representative for full details of our limited warranty
