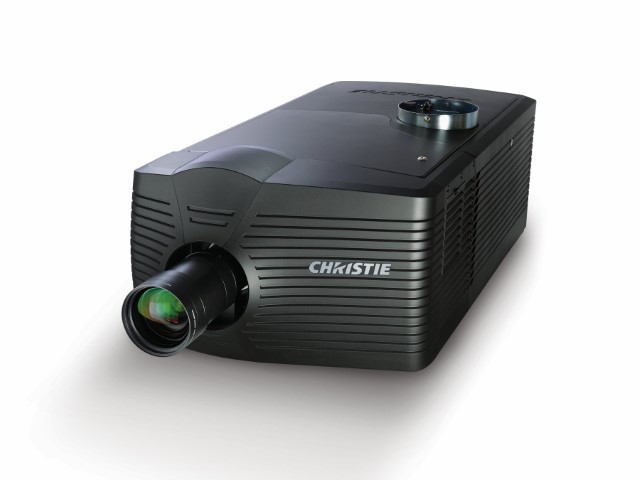

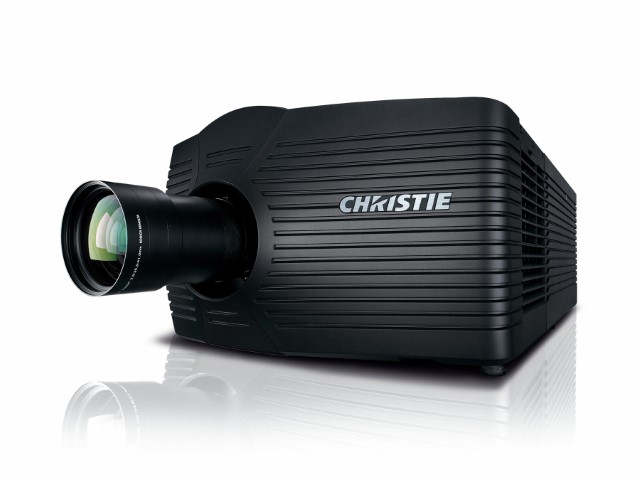

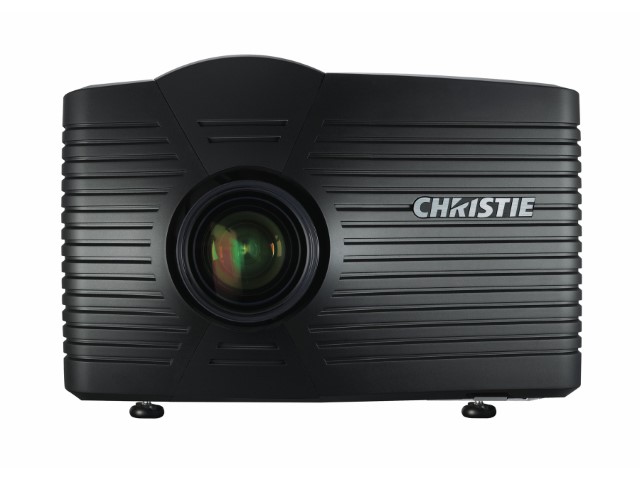

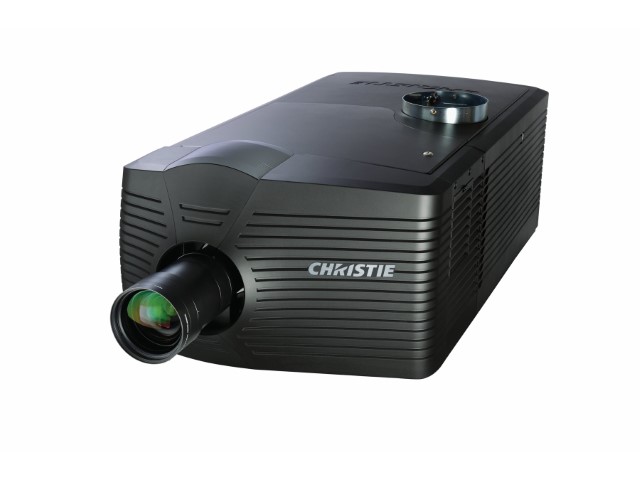

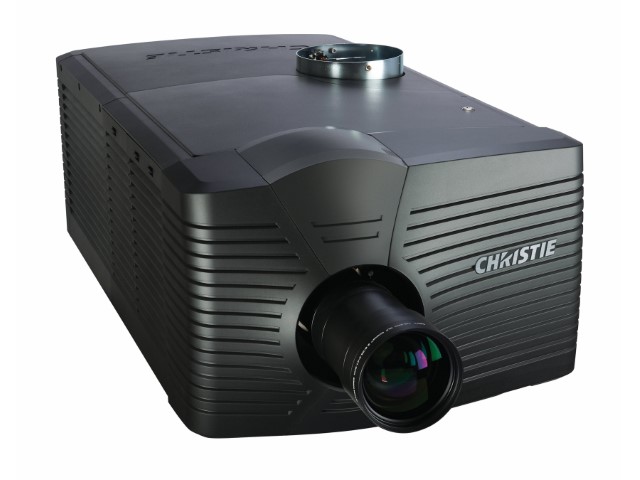

Christie Mirage 4K35 DLP 3D projector

Part Number: 129-011103-XX 4K 3D 120Hz (4096 x 2160), 35,000 lumens, 3DLP

Product characteristics

  • 4K (4096 x 2160) resolution
  • World’s first and only DLP® 4K projector at 120Hz performance
  • Flexibility in supporting various 3D interconnectivity formats
  • Single sequential 4K 120Hz
  • Dual interleaved 4K 60Hz
  • 4K 60Hz sequential frame-doubled
  • All three modes resulting in 120Hz 4K output
  • Additionally the Mirage 4K Features true 2K scaling to 4K with these formats:
  • Single sequential 4K 120Hz
  • Dual interleaved 4K 60Hz
  • 4K 60Hz sequential frame-doubled
  • Up to 35,000 lumens brightness
  • 24/7 use capability
  • Christie Twist™ warping, blending and scaling

  • Description
  • Spec
  • Option
  • Download

For a quantum leap in image processing, look no further than the Christie® Mirage 4K. Delivering the highest DLP® resolution on the market today, the Mirage 4K is based on Christie’s unique TruLifeelectronics, giving you unprecedented image fidelity, life-like vibrant colors and up to 35,000 lumens for the brightest 3D immersive experience. Additionally, you have the added value of Xenon®-based illumination, providing the most natural color accuracy, uniformity and stability over time.

Christie TruLife supports a video-processing pipeline of up to 1.2 Gigapixels per second, which is 10 times faster than full high-definition bandwidth. This provides flexibility in supporting various 3D interconnectivity formats, including: single sequential 4K 120Hz input, dual interleaved 4K 60Hz signals and 4K 60Hz sequential frame-doubled, with all three formats resulting in 120Hz 4K output.

Based on Christie’s superior design, engineering and manufacturing, the Mirage 4K product line provides 24/7 reliability, ease of service and consistent performance for years of operation.

At Christie, we help our customers create and share the world’s best visual experiences.

Features

  • 4K (4096 x 2160) resolution
  • World’s first and only DLP® 4K projector at 120Hz performance
  • Flexibility in supporting various 3D interconnectivity formats
    • Single sequential 4K 120Hz
    • Dual interleaved 4K 60Hz
    • 4K 60Hz sequential frame-doubled
    • All three modes resulting in 120Hz 4K output
  • Additionally the Mirage 4K Features true 2K scaling to 4K with these formats:
    • Single sequential 4K 120Hz
    • Dual interleaved 4K 60Hz
    • 4K 60Hz sequential frame-doubled
  • Up to 35,000 lumens brightness
  • 24/7 use capability
  • Christie Twist™ warping, blending and scaling

Brightness

  • 10,000 center [9000 ANSI] 2.0kW lamp
  • 18,000 center [16,000 ANSI] 3.0kW lamp
  • 25,000 center [22,500 ANSI] 3.0kW SD lamp
  • 29,000 center [27,000 ANSI] 4.5kW lamp
  • 35,000 center [32,500 ANSI] 6.0kW lamp

Contrast

  • 2000:1 (full on/off)
Display Technology and Resolution
  • 4K (4096 x 2160)
  • 3DLP ​1.38" DMD™
  • Supports 4096 x 2160 (24-120Hz) and 3840 x 2160 (24-120Hz)
  • HDCP compliant
Lamp[1]

Type

  • Xenon bubble, user-replaceable lamp

Estimated life

  • 2.0kW lamp CDXL-20 3500 hrs
  • 3.0kW lamp CDXL-30 2500 hrs
  • 3.0kW lamp CDXL-30SD 1500 hrs
  • 4.5kW lamp CDXL-45 900 hrs
  • 6.0kW lamp CDXL-60 750 hrs
Input signals



Standard



  • 4x Twin DisplayPort input card
Optional
  • Dual link DVI input card
  • Twin HDMI input card
  • Dual 3G HD-SDI input card
Signal inputs
4K resolution, 120Hz frame rate:
  • 4x Twin DisplayPort input card (standard)
    • DisplayPort 1.1a via 8 frame-locked L/R 60Hz signals, combined 120Hz output
    • 4:4:4 8/10
    • 4:2:2 8-10-12-bit
    • DisplayPort 1.1a via 4 frame-locked 120Hz signals in, 120Hz output;
    • 4:4:4 8-/10-bit
    • 4:2:2 8-/10-/12-bit via 4 frame-locked 120Hz signals
  • Optional Twin HDMI input card (4 required) via 8 frame-locked L/R 60Hz signals, combined 120Hz output:
    • 4:4:4 8-/10-bit
    • 4:2:2 8-/10-/12-bit
  • Optional Dual Link DVI-D (4 required)
    • 120Hz via 4 120Hz signals in, 120Hz output;
    • RGB 8-bit
Optional for 60Hz input 120Hz output frame doubled[2]:
  • 2x Twin DisplayPort input card (standard)
    • 2 x DisplayPort 1.1a
    • 60Hz
    • 4:4:4 8-/10-bit
  • Optional 2x (or 4x) DVI (Dual Link) Input Card
    • 60Hz
    • RGB 8-bit
  • Optional 4x 3G HD-SDI
    • 60Hz
    • 4:2:2 10-bit
2K/HD scaling to 4K/QuadHD 4096 x 2160/3840 x 2160 2K/HD resolution, 120Hz frame rate:
  • 1x Twin DisplayPort input card (standard)
  • DisplayPort 1.1a via 2 frame-locked L/R 60Hz signals, combined 120Hz output​
    • 4:4:4 8/10
    • 4:2:2 8-/10-/12-bit
  • DisplayPort 1.1a via 4 frame-locked 120Hz signals in, 120Hz output
    • 4:4:4 8-/10-bit
    • 4:2:2 8-/10-/12-bit via 4 frame-locked 120Hz signals
  • Optional Twin HDMI input card (1 required) via 2 frame-locked L/R 60Hz signals, combined 120Hz output:
    • 4:4:4 8-/10-bit
    • 4:2:2 8-/10-/12-bit
  • Optional Dual Link DVI-D (1 required)
    • 120Hz via 4 120Hz signals in, 120Hz output
    • RGB 8-bit
Optional for 60Hz input 120Hz output frame doubled[2]:
  • 1x Twin DisplayPort input card (standard)
    • 1x DisplayPort 1.1a
    • 60Hz
    • 4:4:4 8-/10-bit
  • Optional 1x HDMI Input Card (or DVI-D input card with proper cables)
    • 60Hz
    • RGB 8-bit
  • Optional 1x DVI (Dual Link) Input Card
    • 60Hz
    • RGB 8-bit
  • Optional 1x 3G HD-SDI
    • 60Hz
    • 4:2:2 10-bit



*Also compatible with a variety of 24-60Hz 2D formats.



Control and networking
  • RS-232
  • Ethernet (10/100) RJ45 with ChristieNET™ connectivity
  • Detachable LCD control module
Lens mount
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorized horizontal and vertical offset
  • Focus and zoom adjustment
Lenses

Fixed

  • 0.72:1 (no offset)
  • 0.9:1 (Offset: Vertical: ± 29% Horizontal: 9%)

Zoom

  • 1.13-1.31:1 (Offset: Vertical: ± 56% Horizontal: 19%)
  • 1.31-1.63:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 1.63-2.17:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 1.98-2.71:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 2.71-3.89:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 3.89-5.43:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 5.43:1-7.69:1 (Offset: Vertical: ± 56% Horizontal: 19%)
Accessories

Standard - choose one:

  • CDXL-20
  • CDXL-30
  • CDXL-45
  • CDXL-60 lamp
  • Lamp adapter kit for CDXL-20 (if CDXL-20 is to be used).
  • Heat extraction fan kit

Optional

  • Rack mount pedestal
  • Replacement air filter for the light engine
  • Replacement air filter for the liquid cooling radiator
  • Christie Twist™ Pro software[3]
  • Emitter (standard range)
  • Emitter (long range)
  • Active 3D eyewear (1, 5 or 10 pack)
  • Passive stereoscopic modular
  • Passive 3D eyewear

Optional input cards-
NOTE: there may be a reduced full frame rate capability unless proper combinations of cards are selected.

  • Dual 3G HD-SDI input card
  • Twin HDMI input card
  • Dual Link DVI-D
Power requirements

Projector head

  • Operating voltage: Single phase 200-240 VAC @50/60Hz
  • Operating current: 27A max at 200V

Lamp power supply

  • Type: detached, 7kW low-ripple, switch-mode lamp power supply
  • Operating voltage: 3-phase 200-230 VAC @ 50/60Hz
  • Operating current: 38A per phase max
  • Operating voltage: 3-phase 380-415 VAC @ 50/60Hz
  • Operating current: 26A per phase max
Dimensions

Size

  • Projector head (LxWxH): 51.1 x 25.5 x 19.0" (1298 x 648 x 483mm)
  • Lamp power supply(LxWxH): 21 x 18 x 21" (533 x 457 x 533mm)

Shipping size

  • Projector head (LxWxH): 60.4 x 36.0 x 28.5" (1535 x 914 x 724mm)
  • Lamp power supply (LxWxH): 28.0 x 25.0 x 31.5" (710 x 635 x 800mm)

Weight

  • Projector head 251lbs (114kg)
  • Lamp power supply 89lbs (40.5kg)

Shipping weight

  • Projector head 322lbs (146kg)
  • Lamp power supply 135lbs (62kg)
Operating environment
  • Operating temperature: 50-95°F (10-35°C)
  • Humidity (noncondensing): 20-80%
Regulatory Approvals

This product conforms to these regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):

Directives:

  • (EC) 2011/65/EU (RoHS)
  • 2012/19/EU (WEEE)

Regulations:

  • (EC) No. 1907/2006 (REACH)
  • CAN/CSA C22.2 No. 60950-1
  • UL 60950-1
  • IEC 60950-1
  • EN 60950
  • FCC, Part 15, Subpart B, Class A
  • EN55022/CISPR22 Class A
  • EN55024/CISPR24
  • CCC (late 2013)

The product is designed to comply to the rules and regulations required for the product to be sold in various regional markets, including: USA/Canada, EU, Norway, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, Russia, South Africa, Saudi Arabia, Singapore, Brazil, UAE.

Limited warranty
  • 3 years parts and labor (including light engine)
  • Contact an authorized Christie representative for full details of our limited warranty





Due to constant research, specifications and features are subject to change without notice.

[1] Lamp is included, but lamp choice must be specified at the time of order.
[2] Also compatible with a variety of 24-60Hz 2D formats.
[3] Christie Twist/Twist Pro warp/blend/scale functionality is included in hardware, but not available until new firmware is released in December 2013.
