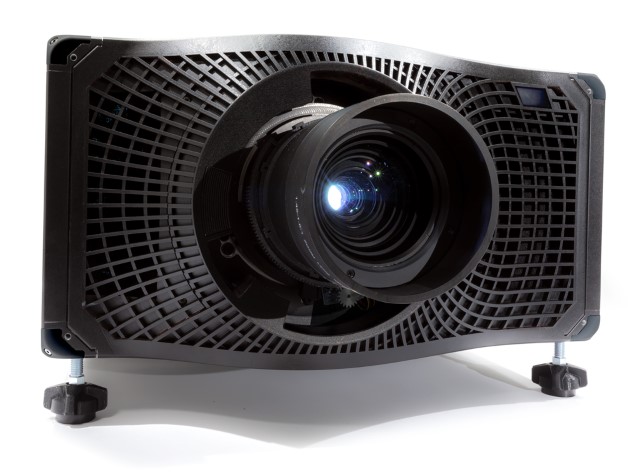

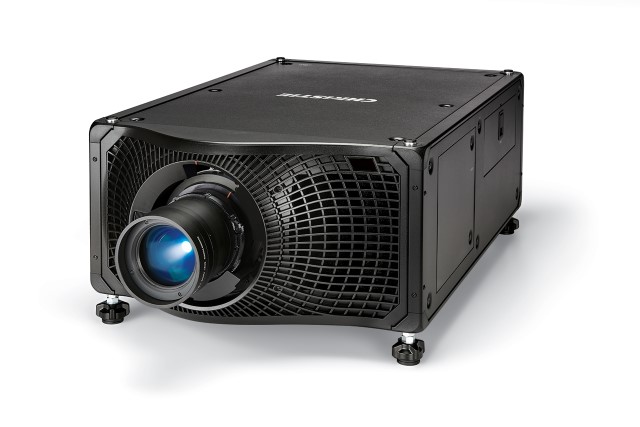

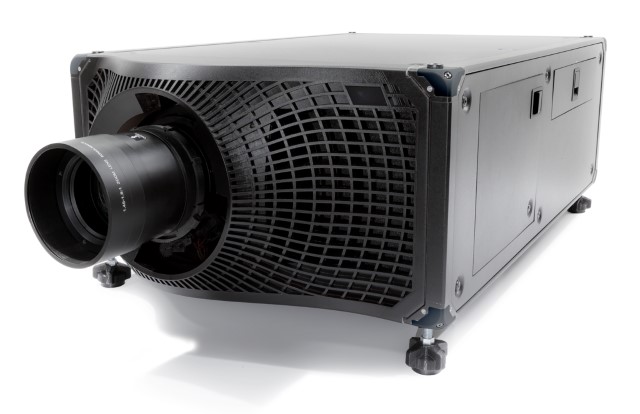

Christie Mirage 304K – 30,000 lumen, 3DLP, 4K projector at true 120Hz

Part Number: 144-001023-XX 3D, 4K, 120Hz, omnidirectional performance

Product characteristics

  • Christie TruLife processing at true 120Hz ensures stunning color reproduction and image quality
  • Mercury lamps for more than double the life of Xenon illumination
  • Omnidirectional deployment capabilities and a weight of only 155lbs. for increased design and installation flexibility
  • Built-in warp and blend functionality

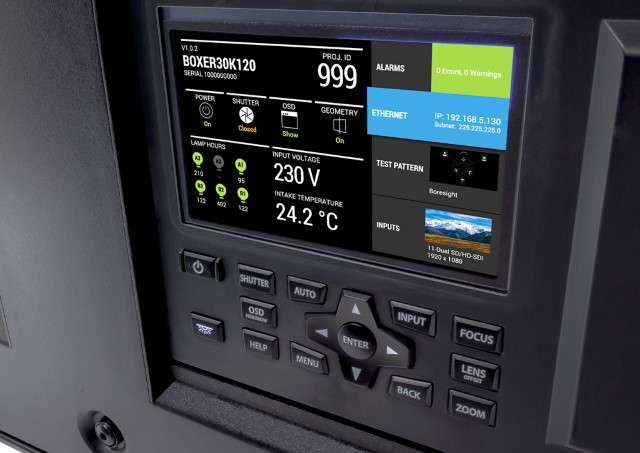

  • Preview screen for at-a-glance status updates
  • Integrated near field communication (NFC) for lamp information tracking

  • Description
  • Spec
  • Option
  • Download

With its compact form factor, light weight, powerful processing and host of user-friendly features such as built-in warping and blending, near field communication monitoring and an at-a-glance preview screen, the Christie® Mirage 304K represents a new paradigm to realize the brightest, most immersive 3D visualizations imaginable.

Based-on the industry’s only 4K, true 120Hz capable projection system and featuring Christie’s proprietary TruLife® electronics, the Christie Mirage 304K produces incredible image and color reproduction for ultra-bright immersive 3D environments. Engineered for omnidirectional deployment, the Mirage 304K can be mounted and operated in any orientation for increased design and installation flexibility.

Superior performance

  • Christie TruLife processing at true 120Hz ensures stunning color reproduction and image quality
  • Mercury lamps for more than double the life of Xenon illumination
  • Omnidirectional deployment capabilities and a weight of only 155lbs. for increased design and installation flexibility
  • Built-in warp and blend functionality
  • Preview screen for at-a-glance status updates
  • Integrated near field communication (NFC) for lamp information tracking
Brightness
  • 29,000 ANSI (typical)
  • 30,000 Center
Contrast
  • 2000:1
Display
  • 3DLP 1.38" DMD
Resolution
  • 4K (4096 x 2160)
Illumination

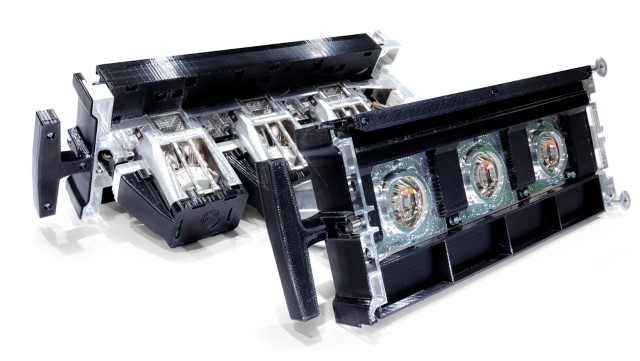

  • 6x 450W NSH
Lamp Life
  • 1500 hours to 70% initial brightness
Inputs
  • 4 x Twin DisplayPort input card
  • HDBaseT
Pixel clock
  • 1.2Gpx/s - TruLife Electronics
Networking
  • Keypad
  • RS232 in
  • Ethernet (10/100) RJ45
Optional accessories
  • Dual link DVI input card
  • Twin HDMI input card
  • Rigging and stacking frame
Lens mount
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorized horizontal and vertical lens offset
  • Motorized zoom and focus adjustment
Lens options
    Fixed
  • 0.72:1 (no offset)
  • 0.9:1 (Offset: V: ±45%, H:​ ±18%)
    Zoom
  • 1.13-1.31:1 (Offset: V: ±60%, H: 23%)
  • 1.31-1.63:1 (Offset: V: ±82%, H: 28%)
  • 1.63-2.17:1 (Offset: V: ±86%, H: 32%)
  • 1.98-2.71:1 (Offset: V: ±13%, H: 4%)
  • 2.71-3.89:1 (Offset: V: ±43%, H: 14%)
  • 3.89-5.43:1 (Offset: V: ±86%, H: 22%)
  • 5.43:1 -7.69:1 (Offset: V: ±56%, H: 19%)
Power
  • 200-240V
  • 19A
Dimensions
(L x W x H)
  • 37.75 x 23.5 x 12"
  • 959 x 597 x 305 mm
Weight
  • 155lbs
Operating environment
  • Temperature: 5 to 40°C (41 to 104°F)
  • Humidity: 10 to 80%, non-condensing
Limited warranty
  • 3 years
